Description
Product Overview
The NI PCI-4462 is a high-performance dynamic signal acquisition card developed by National Instruments (NI), a leading brand in the field of measurement and automation. As a key component in NI’s PCI – based data acquisition product lineup, the PCI-4462 is specifically designed to meet the demanding requirements of applications that involve the acquisition and analysis of dynamic signals. This card is a specialized solution that focuses on providing accurate and reliable data collection for signals with varying frequencies and amplitudes, making it an essential tool for engineers, researchers, and professionals in industries where dynamic signal analysis is crucial.
The NI PCI-4462 operates on the PCI bus standard, enabling seamless integration into desktop computers. It serves as a bridge between physical transducers, such as accelerometers and microphones, and computer – based analysis software. In industrial settings, it can be used to monitor the vibration and acoustic signals of machinery, helping to detect early signs of equipment failure. In research laboratories, it allows scientists to precisely measure and analyze dynamic signals generated during experiments, facilitating in – depth studies and discoveries. With its advanced features and robust performance, the NI PCI-4462 significantly enhances the efficiency and accuracy of dynamic signal – related operations, providing users with valuable insights from the collected data.
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | PCI-4462 |
| Manufacturer | National Instruments (NI) |
| Product Type | Dynamic Signal Acquisition Card |
| Analog Input Channels | 4 |
| Analog Input Resolution | 24 bits |
| Analog Input Sampling Rate | Up to 102.4 kS/s per channel |
| Input Range | ±10 V |
| Anti – aliasing Filter | Built – in 8th – order Butterworth filter |
| Frequency Response | 0 to 44.1 kHz |
| Digital I/O Lines | 8 |
| PCI Bus Compatibility | 32 – bit, 33 MHz PCI |
| Operating Temperature | 0 to 55 °C |
| Physical Dimensions | 167.64 mm x 101.6 mm |

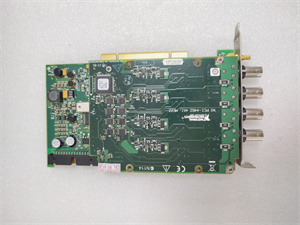

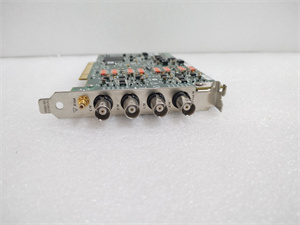

NI PCI-4462
Main Features and Advantages
Ultra – High – Resolution Data Acquisition
The NI PCI-4462 stands out with its 24 – bit analog input resolution, which offers an exceptionally high level of accuracy in data conversion. This high resolution allows the card to capture even the most minute details of dynamic signals, making it ideal for applications where precision is of utmost importance. Whether it’s measuring the subtle vibrations of high – precision machinery or the faint acoustic signals in noise – sensitive environments, the PCI-4462 ensures that no information is lost, providing users with highly detailed and reliable data for analysis.
High – Speed Sampling and Wide Frequency Response
With a sampling rate of up to 102.4 kS/s per channel and a frequency response ranging from 0 to 44.1 kHz, the NI PCI-4462 can effectively capture a wide variety of dynamic signals. It can keep up with rapidly changing signals, ensuring that transient events and high – frequency components are accurately recorded. This makes it suitable for applications such as vibration analysis of rotating machinery, where high – speed and wide – frequency – range signal acquisition is necessary to detect potential faults and monitor equipment health.
Built – in Anti – aliasing Filter
The card is equipped with a built – in 8th – order Butterworth anti – aliasing filter, which significantly improves the quality of the acquired data. This filter prevents aliasing, a phenomenon that can distort the signal during sampling, ensuring that the captured data accurately represents the original signal. By eliminating aliasing errors, the PCI-4462 provides more reliable and accurate results, reducing the need for additional post – processing to correct signal distortion.
Versatile I/O and Compatibility
In addition to its excellent analog input capabilities, the NI PCI-4462 also features 8 digital I/O lines, providing additional flexibility for system integration. It is fully compatible with NI – DAQmx driver software, which offers an intuitive programming interface for various programming languages, including LabVIEW, C, C++, and Python. This compatibility allows developers to easily customize data acquisition and analysis applications according to their specific requirements, making the PCI-4462 a highly adaptable solution for different projects.

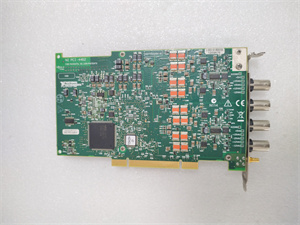

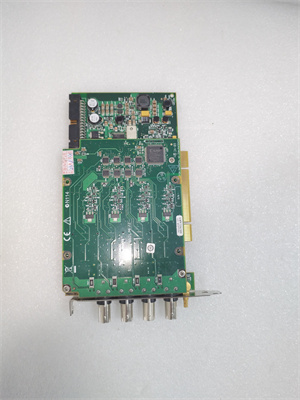

NI PCI-4462
Application Field
The NI PCI-4462 has a wide range of applications across multiple industries. In the aerospace industry, it is used to monitor the vibration and acoustic signals of aircraft components during flight testing. By analyzing these signals, engineers can detect potential structural issues and ensure the safety and reliability of aircraft.
In the automotive industry, the PCI-4462 is employed for vehicle NVH (Noise, Vibration, and Harshness) testing. It can measure the vibrations and noises generated by engines, transmissions, and other vehicle components, helping manufacturers to improve vehicle comfort and performance.
In the field of machinery condition monitoring, the card plays a crucial role in predicting equipment failures. It can continuously monitor the vibration signals of rotating machinery, such as motors, pumps, and turbines. By analyzing the changes in these signals over time, maintenance personnel can detect early signs of wear, imbalance, or misalignment, allowing for timely maintenance and reducing the risk of unexpected breakdowns.
In research and development laboratories, the NI PCI-4462 is used for a variety of experiments involving dynamic signal measurement and analysis. For example, in material science research, it can be used to measure the vibration response of materials under different loads, providing valuable data for material property characterization.
Related Products
- NI PCI – 4472: This is an upgraded version of the PCI-4462, offering higher sampling rates (up to 204.8 kS/s per channel) and enhanced dynamic range. It is suitable for applications that require even more precise and high – speed dynamic signal acquisition, such as high – frequency vibration analysis in advanced manufacturing processes.
- NI PCIe – 4474: A PCIe – based dynamic signal acquisition card, the PCIe – 4474provides faster data transfer rates compared to the PCI-4462. It is designed for applications where real – time data processing and high – throughput data acquisition are essential, such as in large – scale structural health monitoring systems.
- NI USB – 4431: A portable and cost – effective alternative to the PCI-4462, the USB – 4431is a USB – based dynamic signal acquisition device. It offers similar functionality but with the advantage of easy portability, making it suitable for field testing and applications where a desktop – based PCI solution is not feasible.
- NI cDAQ – 9178 with NI 9234: This combination provides a modular and expandable solution for dynamic signal acquisition. The NI 9234 module, when used with the cDAQ – 9178 chassis, offers 4 – channel 24 – bit dynamic signal acquisition, similar to the PCI-4462. However, the cDAQ – 9178 chassis allows for easy addition of other modules, providing more flexibility in system configuration.
- NI PXIe – 4496: A high – performance PXIe – based dynamic signal acquisition card, the PXIe – 4496offers multiple channels (up to 8) of 24 – bit dynamic signal acquisition with high sampling rates. It is designed for applications that require high – density and high – performance dynamic signal acquisition in a PXIe – based test and measurement system, such as in automotive powertrain testing.
Installation and Maintenance
Pre – installation preparation
Before installing the NI PCI-4462, ensure that your computer has an available 32 – bit, 33 MHz PCI slot. Power off the computer and disconnect it from the power source to avoid electrical hazards. Open the computer case carefully and locate the PCI slot. Remove the slot cover and gently insert the PCI-4462 card into the slot, making sure it is firmly seated and properly aligned. After installation, close the computer case and power on the system. Download and install the latest version of the NI – DAQmx driver software from the official NI website to ensure optimal performance and compatibility with the card.
Maintenance recommendations
Regularly check the connections between the NI PCI-4462 and external transducers to ensure they are secure and free from damage. Avoid excessive bending or pulling of the cables, as this can damage the connectors and disrupt data transmission. Periodically update the NI – DAQmx driver software to take advantage of the latest performance improvements, bug fixes, and new features. If the card experiences any malfunctions, such as inconsistent data acquisition or abnormal signal readings, refer to the NI product documentation for detailed troubleshooting steps. Additionally, keep the computer case clean and well – ventilated to prevent dust accumulation, which can affect the card’s performance and lifespan over time.
Product Guarantee
We have full confidence in the quality and performance of the NI PCI-4462 dynamic signal acquisition card. Each unit undergoes strict quality control and comprehensive testing procedures to meet the highest industry standards. The PCI-4462 comes with a comprehensive warranty that covers any manufacturing defects, ensuring your peace of mind. Our dedicated technical support team is always available to assist you with any questions or issues you may encounter. Whether it’s software – related problems, hardware installation, or application – specific inquiries, we are committed to providing prompt and effective solutions. We stand behind the NI PCI-4462 and are confident that it will meet your dynamic signal acquisition and analysis needs with reliable and long – term performance.
