Product Overview
The NI NI-9234 is a high-performance 4-channel dynamic signal acquisition module from National Instruments (NI), a globally recognized expert in measurement and automation. As an integral part of NI’s CompactDAQ and CompactRIO modular I/O systems, the NI-9234 is specifically crafted to deliver accurate and reliable data acquisition for dynamic signals. Engineered with precision in mind, this module is designed to handle a wide variety of applications that require the measurement of complex physical phenomena such as vibration, acoustic, and strain signals, making it an essential tool for professionals in multiple industries.
The NI NI-9234 serves as a vital connection between physical transducers, including accelerometers, microphones, and strain gauges, and data analysis software on host computers. It enables seamless integration into diverse test and measurement setups, whether it’s for industrial machinery health monitoring, automotive noise, vibration, and harshness (NVH) testing, or scientific research experiments. With its advanced features and robust build, the NI-9234 ensures that dynamic signals are captured with high fidelity, facilitating in-depth analysis and enabling informed decision-making in various applications.
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | NI-9234 |
| Manufacturer | National Instruments (NI) |
| Product Type | Dynamic Signal Acquisition Module |
| Number of Channels | 4 |
| Resolution | 24 bits |
| Sampling Rate | Up to 51.2 kS/s per channel |
| Input Range | ±10 V |
| Anti-aliasing Filter | Built-in 8th-order Butterworth, -3 dB at 22.05 kHz |
| Frequency Response | 0 to 22.05 kHz |
| Common-Mode Rejection Ratio (CMRR) | >100 dB at 60 Hz |
| Input Impedance | 100 MΩ |
| Isolation | 2500 V rms galvanic isolation |
| Operating Temperature | -40 °C to 70 °C |
| Physical Dimensions | 100.33 mm x 161.57 mm |
| Compatibility | NI CompactDAQ, NI CompactRIO |

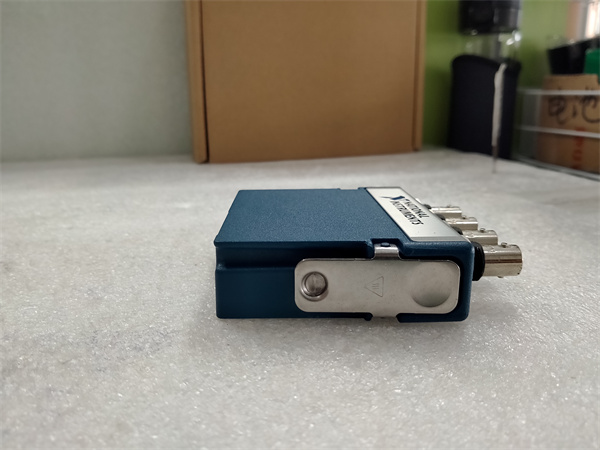

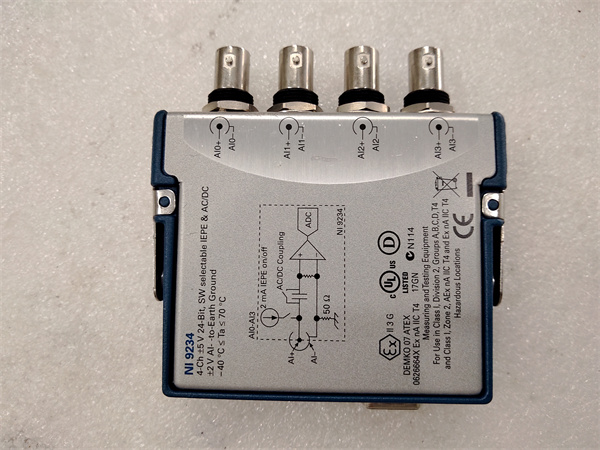

NI NI-9234
Main Features and Advantages
High-Resolution Signal Capture
The NI NI-9234 boasts a 24-bit resolution, which allows for highly accurate dynamic signal acquisition. This high level of resolution enables the module to detect even the most minute variations in input signals, making it ideal for applications where precision is crucial. In machinery vibration analysis, for example, it can precisely measure tiny vibrations that could indicate potential mechanical issues, enabling early detection and preventive maintenance. The low noise floor and accurate conversion ensure that the captured data truly represents the characteristics of the measured physical phenomena.
Cost-Effective Performance
While offering impressive performance, the NI-9234 provides a cost-effective solution. With a sampling rate of up to 51.2 kS/s per channel, it can handle a wide range of applications without sacrificing too much on speed. This makes it a great choice for projects where budget constraints are a consideration, yet reliable and accurate dynamic signal acquisition is still required. It offers a balance between performance and cost, allowing users to achieve their measurement goals without overspending.
Simultaneous Sampling Capability
Featuring 4-channel simultaneous sampling, the NI NI-9234 can capture multiple signals at the same time. This is essential in applications where the time-correlation between different signals needs to be maintained, such as in multi-point vibration monitoring of large structures or analyzing synchronized acoustic signals. By eliminating time-skew between channels, it provides a more accurate and comprehensive understanding of the dynamic behavior of the measured system, leading to more reliable analysis results.
Robust Isolation and Noise Resistance
The NI-9234 is equipped with 2500 V rms galvanic isolation, which offers excellent protection against electrical noise, ground loops, and voltage spikes. This isolation enhances the reliability of the acquired data by preventing external electrical interference from affecting the signal quality. Additionally, its high Common-Mode Rejection Ratio (CMRR) effectively rejects common-mode noise, ensuring that only the differential signal of interest is accurately measured. These features make the module suitable for use in noisy industrial environments and other challenging measurement scenarios.

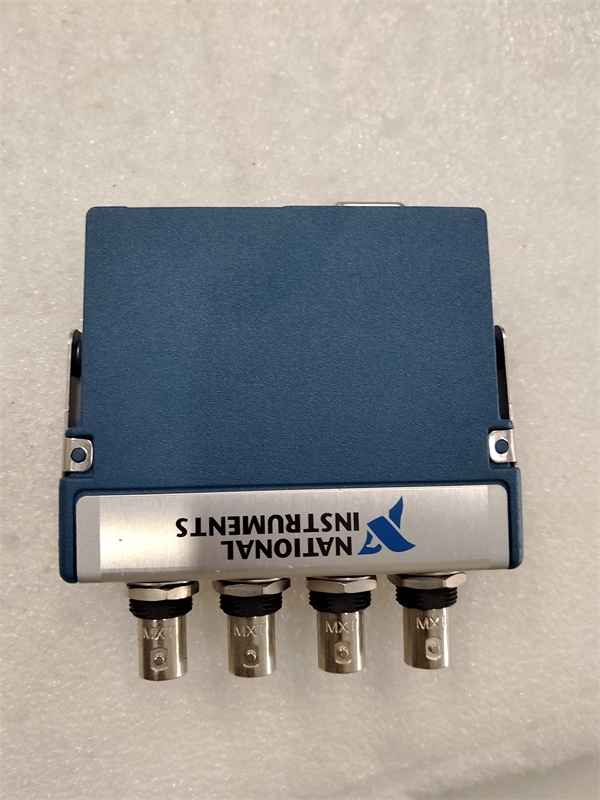

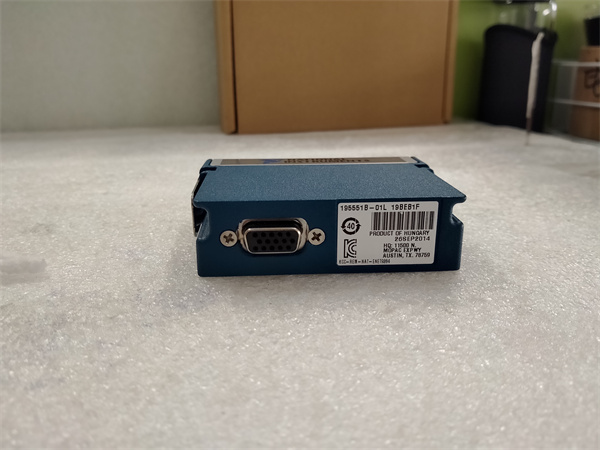

NI NI-9234
Application Field
The NI NI-9234 has a wide range of applications across various industries. In industrial settings, it is commonly used for machinery condition monitoring. By continuously measuring vibration and strain signals from critical machinery components, it helps detect early signs of wear, imbalance, or misalignment. This allows maintenance teams to schedule maintenance in a timely manner, reducing unexpected breakdowns and minimizing production downtime.
In the automotive industry, the NI-9234 plays a key role in NVH testing. It can accurately measure the noise, vibration, and harshness generated by vehicle engines, transmissions, and other components. The data collected is invaluable for automotive engineers to optimize vehicle design, improve passenger comfort, and enhance overall vehicle performance.
In the aerospace field, the module is utilized for structural health monitoring of aircraft components. By measuring strain and vibration signals, it helps ensure the integrity and safety of structures during flight. In research laboratories, the NI NI-9234 is employed for a variety of experiments, from studying the dynamic behavior of materials under different loads to analyzing complex acoustic phenomena. Its reliable and accurate data acquisition capabilities make it a valuable asset for researchers seeking to gain deeper insights into physical processes.
Related Products
- NI NI-9239: Compared to the NI-9234, the NI-9239offers a higher sampling rate of up to 102.4 kS/s per channel. It is suitable for applications that demand faster data acquisition, such as analyzing high-frequency vibrations or rapidly changing acoustic signals.
- NI NI-9238: This module provides 8 channels of 24-bit dynamic signal acquisition, doubling the channel capacity compared to the NI-9234. It is ideal for applications that require monitoring a larger number of signals simultaneously, like in large-scale industrial monitoring systems or complex research setups with multiple measurement points.
- NI NI-9233: The NI-9233is also a 4-channel dynamic signal acquisition module with 24-bit resolution, but it has an input range of ±5 V, different from the NI-9234‘s ±10 V. It is more suitable for applications where the lower input range is sufficient and can provide a more focused solution for specific measurement requirements.
- NI NI-9263: As an analog output module, the NI-9263can be used in conjunction with the NI-9234 in closed-loop control systems. While the NI-9234 acquires sensor data, the NI-9263 can generate control signals based on the analysis results to adjust the system’s operation.
- NI NI-9401: A digital I/O module, the NI-9401provides digital signal input and output functions. In systems that require both dynamic signal acquisition and digital control and monitoring, the NI-9401 can work together with the NI-9234 to enable comprehensive system operation and data handling.
Installation and Maintenance
Pre-installation preparation
Before installing the NI NI-9234, make sure your NI CompactDAQ or CompactRIO chassis is powered off. Check the compatibility of the chassis with the NI-9234 module and ensure there is an available slot for installation. Gently insert the NI-9234 module into the appropriate slot, ensuring it is firmly seated and properly aligned. After installation, power on the chassis and use the NI – MAX (Measurement & Automation Explorer) software to detect and configure the module. Set parameters such as sampling rate, input range, and anti-aliasing filter settings according to the specific requirements of your application.
Maintenance recommendations
Regularly inspect the connections between the NI NI-9234 and transducers to ensure they are secure and free from damage. Avoid excessive bending or pulling of the cables, as this can damage the connectors and disrupt data transmission. Periodically update the firmware of the NI-9234 module using the NI – MAX software to take advantage of the latest performance improvements, bug fixes, and new features. If the module encounters any issues, such as inconsistent data acquisition or abnormal signal readings, use the built-in diagnostic tools in the NI – MAX software and refer to the NI product documentation for troubleshooting steps. Additionally, keep the installation environment clean and within the specified temperature range to ensure the long-term reliable operation of the NI-9234 module.
Product Guarantee
We have complete confidence in the quality and performance of the NI NI-9234 dynamic signal acquisition module. Every unit undergoes strict quality control and comprehensive testing procedures to meet the highest industry standards. The NI-9234 comes with a comprehensive warranty that covers any manufacturing defects, giving you peace of mind. Our dedicated technical support team is always on standby to assist you with any questions or issues you may encounter. Whether it’s software-related problems, hardware installation, or application-specific inquiries, we are committed to providing prompt and effective solutions. We stand firmly behind the NI NI-9234 and are confident that it will meet your dynamic signal acquisition needs with reliable and long-lasting performance.
