Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product model | NI CRIO-9063 |
| Manufacturer | National Instruments (NI) |
| Product category | CompactRIO Real-Time Controller |
| Operating System | NI Linux Real-Time |
| Processor | Intel Atom E3827 (1.33 GHz) |
| Memory | 2 GB DDR3L |
| Storage | 16 GB eMMC |
| Communication Interface | Gigabit Ethernet, USB 2.0, RS232/485 |
| Operating Temperature Range | -40°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity | 10% to 90% RH (non-condensing) |
| Dimensions (W x H x D) | 101.6 mm x 63.5 mm x 19.05 mm |
| Weight | 158 g (spring terminal), 148 g (DSUB) |
| Certifications | CE, UL, CSA, ATEX, IECEx |
NI CRIO-9063
Product Introduction
The NI CRIO-9063 is a high-performance CompactRIO Real-Time Controller designed for distributed measurement and control applications. It features an Intel Atom E3827 processor running at 1.33 GHz, 2 GB of DDR3L memory, and 16 GB of eMMC storage. The controller supports a variety of communication interfaces, including Gigabit Ethernet, USB 2.0, and RS232/485, making it suitable for a wide range of industrial and research applications.
Core Advantages and Technical Highlights
High Performance and Reliability:
The NI CRIO-9063 features an Intel Atom E3827 processor, providing high computational power for complex control algorithms and data processing tasks.
Robust Industrial Design:
With an operating temperature range of -40°C to 70°C and IP40 protection rating, the controller is designed to withstand harsh industrial environments.
Versatile Communication Options:
The controller supports Gigabit Ethernet, USB 2.0, and RS232/485 interfaces, ensuring seamless integration with various industrial networks and devices.
User-Friendly Configuration:
The NI CRIO-9063 is compatible with LabVIEW and other NI software tools, allowing users to develop custom control and monitoring applications with ease.

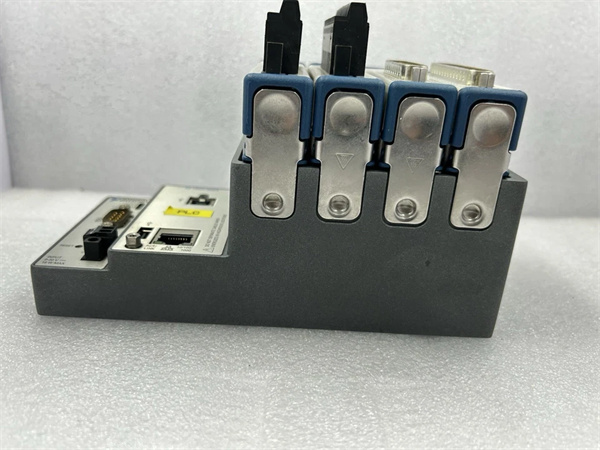

NI CRIO-9063
Typical Application Scenarios
The NI CRIO-9063 is widely used across various industrial and research sectors:
Industrial Automation: For precise control and monitoring of manufacturing processes.
Research and Development: For high-precision data acquisition and control in laboratory settings.
Automotive Testing: For real-time control and monitoring of vehicle systems.
Aerospace: For reliable control and monitoring in aircraft systems.
Related Model Recommendations
NI CRIO-9068: A higher-performance CompactRIO Real-Time Controller with more processing power and memory.
NI CRIO-9037: A lower-cost option for applications requiring less processing power.
NI CRIO-904x: A series of controllers with various performance levels and features for different application needs.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation:
Ensure the installation environment meets the specified temperature and humidity requirements. The controller should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range to avoid damage to the controller.
Maintenance Suggestions:
Regularly inspect the installation to ensure the controller is securely mounted and all connections are tight. Monitor the operational status of the controller to detect any signs of malfunction early. Conduct functional testing on the controller at least once a year to ensure optimal performance.
Service and Guarantee Commitment
National Instruments provides comprehensive support for the NI CRIO-9063, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. NI’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
