Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product model | NI BNC-2110 |
| Manufacturer | National Instruments (NI) |
| Product category | BNC Terminator |
| Input Impedance | 50 Ω |
| Operating Voltage | ±15 V |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature Range | -40°C to 70°C |
| Dimensions (W x H x D) | 114 mm x 76 mm x 38 mm |
| Weight | 200 g |
| Certifications | CE, UL |
Product Introduction
The NI BNC-2110 is a high-performance BNC terminator designed for use with National Instruments data acquisition (DAQ) devices. It provides a convenient way to terminate BNC cables and ensure proper signal integrity in measurement systems. The terminator is designed to work seamlessly with NI DAQ devices, ensuring reliable and accurate data acquisition.
Core Advantages and Technical Highlights
High Precision and Reliability:
The NI BNC-2110 features a 50 Ω input impedance, ensuring proper signal termination and minimizing reflections in high-frequency applications.
Robust Industrial Design:
With an operating temperature range of 0°C to 55°C and a storage temperature range of -40°C to 70°C, the terminator is designed to withstand harsh environmental conditions.
Easy Integration:
The NI BNC-2110 is designed to work seamlessly with NI DAQ devices, ensuring easy integration into existing measurement systems.
Versatile Applications:
The terminator is suitable for a wide range of applications, including industrial automation, research and development, and laboratory testing.

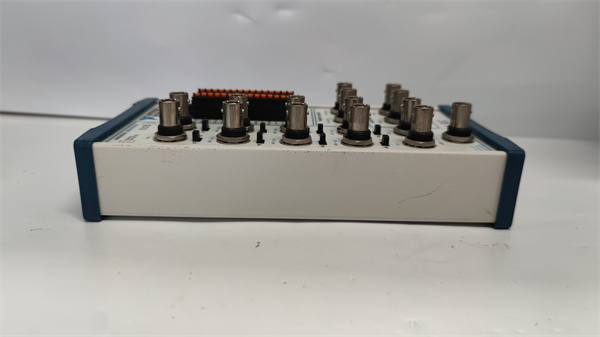

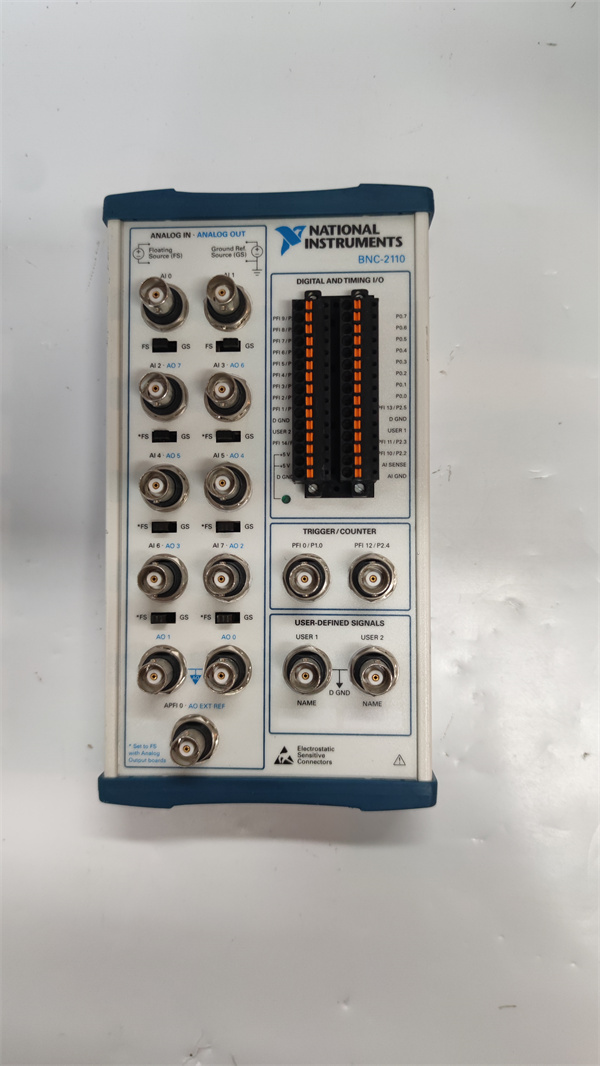

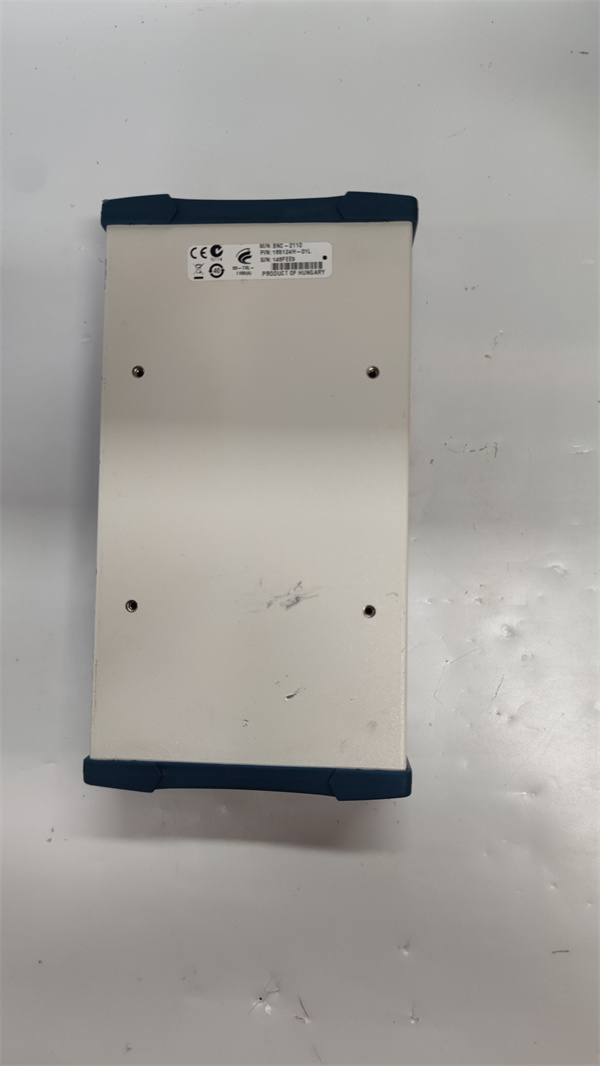

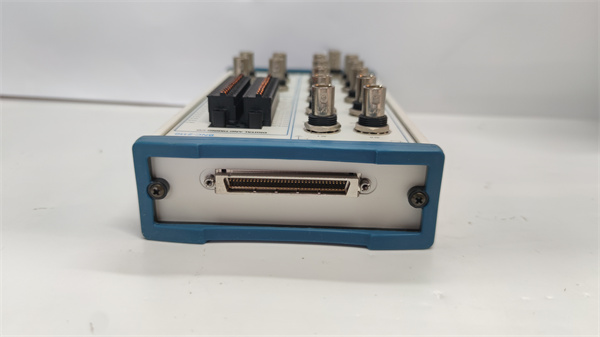

NI BNC-2110
Typical Application Scenarios
The NI BNC-2110 is widely used in various industrial and research applications:
Industrial Automation: For terminating BNC cables in manufacturing processes to ensure signal integrity.
Research and Development: For high-precision data acquisition in laboratory settings.
Automotive Testing: For terminating BNC cables in vehicle systems to ensure accurate signal transmission.
Aerospace: For reliable signal termination in aircraft systems.
Related Model Recommendations
NI BNC-2120: A BNC-to-SCSI terminator for applications requiring SCSI connections.
NI BNC-2090: A BNC-to-DIN terminator for applications requiring DIN connections.
NI BNC-2150: A BNC-to-USB terminator for applications requiring USB connections.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation:
Ensure the installation environment meets the specified temperature and humidity requirements. The terminator should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range to avoid damage to the terminator.
Maintenance Suggestions:
Regularly inspect the installation to ensure the terminator is securely mounted and all connections are tight. Monitor the operational status of the terminator to detect any signs of malfunction early. Conduct functional testing on the terminator at least once a year to ensure optimal performance.
Service and Guarantee Commitment
National Instruments provides comprehensive support for the NI BNC-2110, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. NI’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
