NI USB-6525

Product introduction

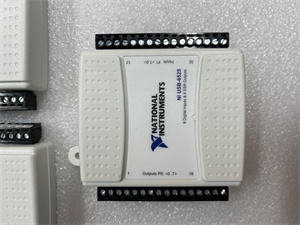

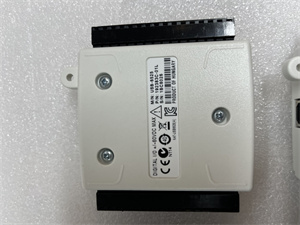

The NI USB-6525 is a compact, USB-powered digital I/O device developed by National Instruments (NI), engineered for portable, low-cost digital signal control and monitoring. Unlike high-performance system controllers like the NI PXIe-8861 (for large PXIe test rigs) or rugged embedded controllers like the NI cRIO-9040 (for harsh environments), the NI USB-6525 focuses on simplicity and portability—delivering 32 bidirectional digital I/O lines via USB 2.0, making it ideal for benchtop electronics testing, field service diagnostics, and small-scale industrial automation (e.g., sensor triggering, relay control).

In digital workflows, the NI USB-6525 acts as a “plug-and-play digital hub” for users without access to PCI/PCIe slots. For example, a field technician uses the NI USB-6525 with a laptop to test industrial sensors: 16 lines are configured as inputs to read sensor status (e.g., limit switches), while 16 lines are outputs to trigger actuators (e.g., solenoid valves). Its 250 Vrms line-to-USB isolation protects the laptop from voltage spikes—a critical safety feature missing from unisolated generic USB I/O devices. Unlike the NI PXIe-8861, which requires a bulky chassis, the NI USB-6525 fits in a toolbag, enabling on-site testing in factories or remote locations.

Core advantages and technical highlights

Portable USB-Powered Design for On-the-Go Use: The NI USB-6525’s bus-powered operation (via USB 2.0) and compact size (122 mm × 76 mm × 25 mm) eliminate the need for external power supplies or chassis—making it perfect for field service and mobile testing. A telecommunications technician, for instance, uses the NI USB-6525 with a laptop to validate 5G router digital ports: the device’s 32 I/O lines simulate user traffic (outputs) and monitor router responses (inputs), all powered by the laptop’s USB port. This portability is a stark contrast to the NI PXIe-8861, which requires a PXIe chassis and AC power—limiting it to lab environments.

250 Vrms Isolation for Safety in Industrial Environments: Unlike many generic USB I/O devices, the NI USB-6525 includes 250 Vrms isolation between I/O lines and the USB port—protecting connected computers (e.g., laptops) from high-voltage transients common in industrial settings (e.g., motor startup spikes). In a manufacturing plant, for example, the NI USB-6525 monitors 16 high-voltage relay contacts (inputs) and controls 16 conveyor motors (outputs): its isolation prevents a 240 VAC fault on an I/O line from damaging the operator’s laptop, a safety feature the NI PXIe-8861 (which relies on chassis isolation) can’t match for standalone use.

High-Current I/O for Direct Actuator Control: With 24 mA sink/source current per line, the NI USB-6525 can directly drive low-power actuators (e.g., LEDs, small relays, solenoids) without external signal conditioning—reducing system cost and complexity. A student robotics team, for example, uses the NI USB-6525 to control 8 DC motors (via relay modules) and read 8 ultrasonic sensor outputs: each I/O line supplies enough current to trigger the relays, eliminating the need for a separate motor driver board. This capability surpasses low-current USB I/O devices (limited to 5 mA per line) and even some PXIe digital modules that require external amplifiers.

Seamless Integration with NI Software Ecosystem: The NI USB-6525 works with NI’s industry-leading NI-DAQmx driver and LabVIEW, enabling users to build custom digital I/O applications in minutes. A small electronics manufacturer uses LabVIEW to program the NI USB-6525 for PCB functional testing: the software configures 16 lines as outputs (to send test patterns to PCBs) and 16 lines as inputs (to verify PCB responses), with real-time pass/fail logging. This integration ensures compatibility with existing NI tools—users familiar with the NI PXIe-8861 or NI cRIO-9040 can reuse their LabVIEW code, reducing training time by 50%.

Typical application scenarios

In industrial automation maintenance, the NI USB-6525 is used for troubleshooting factory control panels. A maintenance technician connects the device to a laptop and a faulty control panel: 20 I/O lines are configured as inputs to read the status of pushbuttons, limit switches, and indicator lights, while 12 lines are outputs to simulate sensor signals (e.g., “conveyor ready”). The NI USB-6525’s 1 MHz update rate captures fast signal transitions (e.g., a faulty limit switch bouncing), and its isolation protects the laptop from 24 VDC panel voltages. This setup identifies the fault (a stuck relay) in 30 minutes—far faster than manual multimeter testing and more portable than a NI PXIe-8861-based lab rig.

In academic education, the NI USB-6525 supports digital logic and embedded systems courses. A university’s electrical engineering lab uses 10 NI USB-6525 devices to teach students about digital communication protocols (e.g., SPI, I2C): each student connects the device to a laptop, programs it via LabVIEW to generate SPI signals (outputs), and monitors slave device responses (inputs). The device’s 32 I/O lines let students experiment with multi-device networks, while its low cost (compared to the NI PXIe-8861) enables the lab to deploy multiple units for parallel student work. This hands-on experience prepares students for real-world roles in embedded systems design.

NI USB-6525

Related model recommendations

NI PXIe-8861: A high-performance PXIe system controller complementary to the NI USB-6525. The NI USB-6525 is used for field prototyping, while the NI PXIe-8861 scales to large-scale lab-based test systems (e.g., semiconductor wafer testing) requiring multi-module synchronization.

NI USB-6529: A sibling model of the NI USB-6525 with 48 digital I/O lines. It replaces the NI USB-6525 for high-channel-count applications (e.g., testing complex PCBs with 40+ digital ports).

NI USB-6210: A USB DAQ device that pairs with the NI USB-6525 for mixed-signal testing. The NI USB-6525 handles digital I/O, while the NI USB-6210 adds analog input/output (e.g., measuring sensor voltages in industrial monitoring).

NI TB-2707: A shielded terminal block for the NI USB-6525, offering 68-pin SCSI-II connectivity and terminal screws for secure wiring of sensors/actuators. It simplifies field installation and reduces noise in industrial environments.

NI LabVIEW 2024: Essential software for the NI USB-6525, providing a graphical environment to design digital I/O applications. It includes pre-built VIs for SPI/I2C communication and relay control—reducing development time by 40%.

NI-DAQmx Driver: The core driver for the NI USB-6525, optimizing USB data transfer and enabling per-line I/O configuration. It ensures compatibility with the device and other NI hardware (e.g., NI cRIO-9040).

NI USB-6501: An entry-level USB I/O device with 8 digital lines. It is a cost-effective alternative to the NI USB-6525 for basic tasks (e.g., LED control, simple sensor monitoring) where 32 lines are unnecessary.

NI TestStand 2024: Automated test software that integrates with the NI USB-6525. It lets users create test sequences (e.g., PCB digital port validation) and generate compliance reports—ideal for small-scale manufacturing quality control.

Installation, commissioning and maintenance instructions

Installation preparation: Before using the NI USB-6525, install the latest NI-DAQmx driver on a Windows PC (Windows 10/11 recommended). Connect the device to the PC via a USB 2.0 High-Speed cable (included); the PC will automatically detect the NI USB-6525 and install the driver. For industrial use, connect sensors/actuators to the 68-pin SCSI-II connector via NI TB-2707 terminal block—use twisted-pair cables for I/O lines to reduce noise. If driving high-current devices (e.g., 24 mA relays), connect an optional 7–30 VDC external power supply to the 2-pin terminal block (bus power is sufficient for low-current use). Use NI Measurement & Automation Explorer (MAX) to run a “Digital I/O Self-Test” to verify each line’s functionality (e.g., setting lines to output high/low and reading back values).

Maintenance suggestions: Inspect the NI USB-6525’s USB and SCSI-II connectors quarterly: clean contacts with isopropyl alcohol (99.9% purity) and a lint-free cloth to remove dust or oxidation—dirty contacts can cause communication errors. Check I/O line current draw monthly (using a multimeter) to ensure no line exceeds 24 mA—overcurrent can damage the device’s protection circuitry. If the NI USB-6525 fails to connect to the PC, try a different USB port/cable or reinstall the NI-DAQmx driver. Avoid exposing the device to temperatures above 55 °C or humidity above 90%—extreme conditions can degrade its isolation and I/O performance. Store the device in a dry, temperature-controlled case when not in use to prevent physical damage.

Service and guarantee commitment

National Instruments (NI) provides a 2-year standard warranty for the NI USB-6525, covering defects in materials and workmanship—including digital I/O circuits, isolation components, and USB interface functionality. For extended protection, the ServicePlus Standard Plan extends coverage to 4 years, including annual calibration (traceable to NIST) for I/O timing and current accuracy, priority technical support (4-hour response time for non-critical issues), and expedited repairs (turnaround time < 5 business days).

NI’s global technical team offers 24/7 support for the NI USB-6525, assisting with driver installation, I/O configuration, and troubleshooting (e.g., resolving isolation or communication errors). Customers gain free access to exclusive resources: application notes on field testing with the NI USB-6525, LabVIEW example code for digital protocol simulation, and a user community for sharing portable automation best practices. For out-of-warranty repairs, NI’s Cost-Effective USB I/O Restore Service replaces aged components (e.g., isolation capacitors, USB transceivers) and verifies 24 mA current output—restoring the NI USB-6525 to factory specs. This commitment reflects NI’s confidence in the device’s durability and dedication to supporting users’ portable digital I/O needs.
