Description
Product Overview

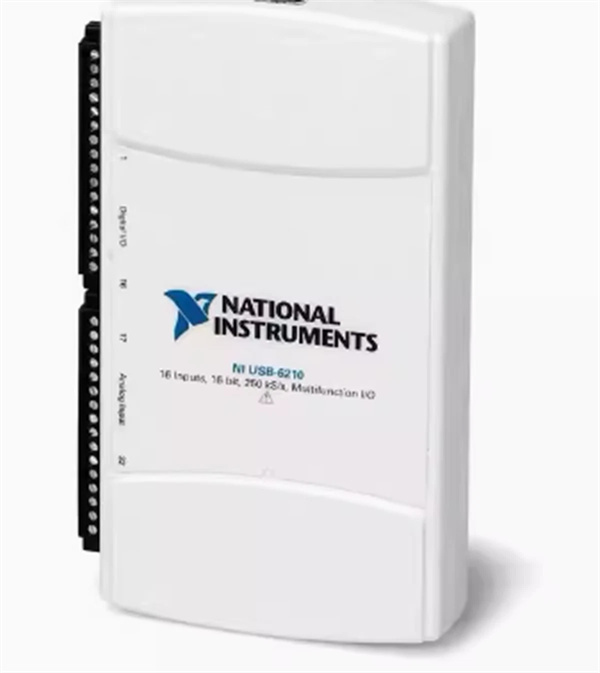

The NI USB-6210 is a high-performance data acquisition (DAQ) device by National Instruments (NI), a leading brand in test, measurement, and automation solutions. As part of NI’s USB-6000 Series, the USB-6210 is designed to provide reliable and versatile data collection for research, education, and industrial applications. This plug-and-play device features a compact form factor, making it ideal for portable or benchtop setups where space is limited. The USB-6210 serves as a bridge between physical signals and digital systems, enabling users to acquire analog and digital data with precision. It supports up to 16 analog input channels with a maximum sampling rate of 250 kS/s, ensuring accurate capture of dynamic signals. With its built-in signal conditioning and compatibility with NI’s LabVIEW software, the USB-6210 simplifies the process of the data acquisition, analysis, and visualization, making it a valuable tool for engineers and scientists seeking efficient measurement solutions.
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | USB-6210 |
| Manufacturer | National Instruments (NI) |
| Product Type | Data Acquisition (DAQ) Device |
| Analog Input Channels | 16 (single-ended) / 8 (differential) |
| Maximum Sampling Rate | 250 kS/s (aggregate across all channels) |
| Analog Input Range | ±10 V, ±5 V, ±2 V, ±1 V (configurable) |
| Digital I/O Lines | 12 (8 inputs, 4 outputs) |
| Timing and Triggering | Onboard clock, software trigger, digital trigger |
| Communication Interface | USB 2.0 (bus-powered, no external power required) |
| Physical Dimensions | 15.2 cm x 10.2 cm x 2.5 cm |
| Operating Temperature | 0°C to 50°C |
| Software Compatibility | NI LabVIEW, LabWindows/CVI, Visual Studio, MATLAB, Python |
Main Features and Advantages
High-Precision Data Acquisition: The NI USB-6210 delivers 16-bit analog-to-digital conversion, ensuring high-resolution measurements for detailed signal analysis. Its 250 kS/s sampling rate allows for capturing fast-changing signals in applications like vibration monitoring or audio analysis.
Versatile Connectivity: With support for both single-ended and differential analog inputs, the device adapts to various sensor types and measurement setups. The 12 digital I/O lines enable integration with switches, relays, or other digital devices for comprehensive system control.
Plug-and-Play Usability: Being bus-powered via USB, the USB-6210 eliminates the need for external power supplies, enhancing portability. It pairs seamlessly with NI’s intuitive software tools, reducing setup time and enabling rapid deployment in research or industrial environments.
Robust Signal Conditioning: The device includes built-in anti-aliasing filters and programmable gain amplifiers, minimizing noise and optimizing signal quality. This feature is crucial for maintaining accuracy in noisy industrial or laboratory settings.
Scalability and Compatibility: As part of NI’s ecosystem, the USB-6210 can be integrated with other NI DAQ devices, instruments, and control systems. Its compatibility with multiple programming languages ensures flexibility for developers across different disciplines.
Application Field
The NI USB-6210 is widely used in academic research for experiments requiring precise data collection, such as physics labs, materials testing, or environmental monitoring. In industrial settings, it supports predictive maintenance by capturing vibration or temperature data from machinery to detect early signs of equipment degradation. The device is also ideal for educational institutions, where its user-friendly interface and compatibility with LabVIEW make it a valuable tool for teaching data acquisition principles.
In the automotive industry, the USB-6210 aids in engine testing and vehicle dynamics analysis, while in aerospace, it supports flight simulation and component validation. For hobbyists and makers, its compact design and ease of use make it suitable for DIY projects, such as robotics or home automation systems. Additionally, the device is employed in medical research for capturing physiological signals, ensuring reliable data for diagnostic or therapeutic development.
Related Products
USB-6211: A higher-performance variant with 32 analog input channels and a 500 kS/s sampling rate, suitable for more complex measurement setups.
USB-6008: A cost-effective model with 8 analog inputs and basic functionality, ideal for entry-level education or simple data logging.
NI cDAQ-9172: A chassis-based system that supports multiple DAQ modules, offering greater scalability for large-scale industrial applications.
SCB-68: A signal conditioning breakout box that enhances the USB-6210 with terminal connections and protection for high-voltage signals.
NI-DAQmx: The software driver suite that enables seamless configuration and operation of the USB-6210 across various programming environments.
Installation and Maintenance
Pre-installation preparation: Before connecting the NI USB-6210, install the latest NI-DAQmx driver software from the NI website. Ensure the host computer has a free USB 2.0 port and meets the minimum system requirements. For optimal performance in industrial environments, use shielded cables and avoid routing them near high-voltage sources.
Maintenance recommendations: Keep the device free of dust and debris by gently wiping the exterior with a dry cloth. Avoid exposing the USB-6210 to extreme temperatures or moisture. Periodically verify cable connections and inspect for physical damage. If software issues arise, update the driver and firmware through NI’s Measurement & Automation Explorer (MAX) to ensure compatibility with the latest tools.
Product Guarantee
The NI USB-6210 is backed by NI’s comprehensive quality assurance, featuring a 3-year warranty against manufacturing defects. NI provides 24/7 technical support via online resources, forums, and direct consultation to assist with installation, troubleshooting, and application-specific challenges. For software updates and compatibility, users can access NI’s developer community and download the latest drivers and tools at no additional cost. This guarantee underscores NI’s commitment to delivering reliable, long-lasting solutions for data acquisition and measurement needs.
