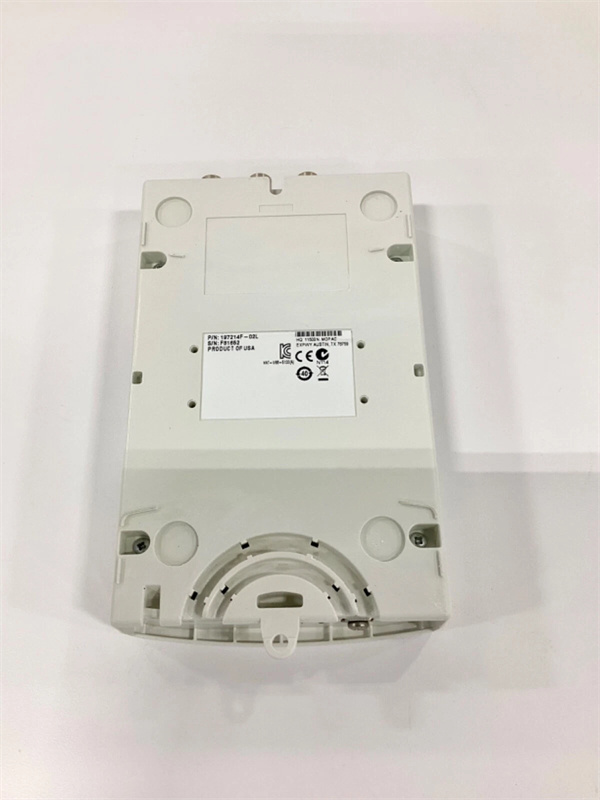

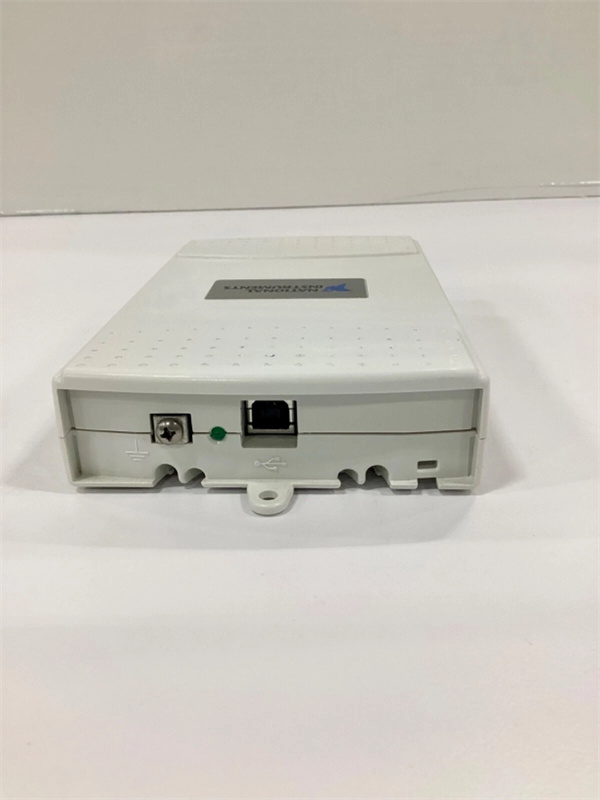

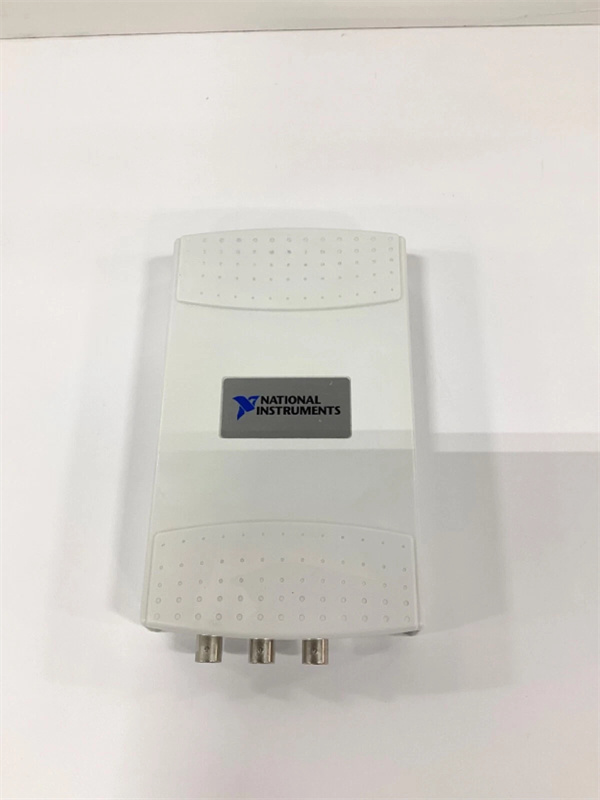

NI USB-5133

Product introduction

The NI USB-5133 is a high-speed digital oscilloscope and data acquisition (DAQ) module developed by National Instruments (NI), a global leader in test, measurement, and automation technology. As part of NI’s USB DAQ product family—renowned for portability and ease of use—the NI USB-5133 is engineered to bridge the gap between lab-grade measurement precision and on-the-go flexibility.

Designed for engineers, technicians, and researchers, the NI USB-5133 delivers 200 MS/s simultaneous sampling across 4 channels, making it ideal for capturing fast transient signals in both laboratory and field environments. Unlike traditional PCI-based oscilloscopes, its USB 3.0 connectivity eliminates the need for internal PC slots, enabling plug-and-play setup with laptops or desktop computers.

At its core, the NI USB-5133 combines oscilloscope functionality (such as real-time signal visualization) with DAQ capabilities (high-speed data logging), all powered by NI’s industry-leading NI-DAQmx driver. This integration lets users not only view signals in real time but also record and analyze data for long-duration tests—adding value in applications from electronics debugging to industrial process monitoring. Whether used in a benchtop lab or a remote field site, the NI USB-5133 ensures reliable, high-performance measurements without compromising on portability.

Core advantages and technical highlights

Portable, USB-powered convenience

The NI USB-5133 redefines flexibility with its USB bus-powered design. Unlike bulky, slot-dependent oscilloscopes, it draws power directly from a USB 3.0 port, eliminating the need for external power supplies or internal PC hardware. This makes it perfect for portable testing—whether troubleshooting electronic circuits on a factory floor, conducting field measurements at a power substation, or setting up temporary test stations in research labs. Its compact size (146 mm × 102 mm) fits easily in a toolbag, letting users take lab-quality measurements anywhere.

High-speed sampling for fast signals

With 200 MS/s simultaneous sampling per channel and 50 MHz bandwidth, the NI USB-5133 excels at capturing fast transient signals. For example, in automotive electronics testing, it can reliably measure voltage spikes in engine control units (ECUs) or pulse-width modulation (PWM) signals from motor drivers—details that slower modules might miss. The 8-bit vertical resolution ensures clear differentiation between signal levels, while the 128 MB per-channel memory depth lets users record long signal sequences (e.g., 1.28 seconds of data at 100 MS/s) for post-test analysis.

Versatile triggering for precise signal capture

The NI USB-5133 offers a range of advanced trigger modes to isolate specific signals—critical for debugging or monitoring complex systems. Edge triggering (rising/falling) works for standard signals, while pulse-width triggering can detect anomalies like short circuits or glitches (e.g., identifying a 10 ns voltage spike in a 5 V power rail). Pattern triggering lets users set custom logic conditions (e.g., trigger when Channel 1 is high AND Channel 2 is low), making it easy to capture rare or intermittent events. This versatility ensures users never miss critical signal details, even in dynamic environments.

Seamless integration with NI software ecosystem

A key advantage of the NI USB-5133 is its compatibility with NI’s software tools. The NI-DAQmx driver simplifies configuration—users can set up channels, triggers, and sampling rates in minutes via a graphical interface, no low-level programming required. For advanced analysis, it integrates seamlessly with LabVIEW: users can build custom dashboards to visualize real-time data, automate test sequences, or compare measurements against predefined thresholds. It also works with Python and C/C++, letting teams leverage existing codebases. This software flexibility reduces setup time and extends the module’s utility across diverse applications.

Typical application scenarios

Electronics design and debugging

In electronics manufacturing, the NI USB-5133 is a go-to tool for debugging printed circuit boards (PCBs) and embedded systems. For example, when testing a new IoT device, engineers use the module to measure I2C or SPI communication signals between the microcontroller and sensors. Its 200 MS/s sampling rate captures fast signal transitions, while pulse-width triggering detects glitches that could cause data corruption. The USB portability lets technicians move the module between workstations, testing prototypes on the bench or validating production units on the factory floor—ensuring devices meet performance specs before launch.

Industrial process monitoring

In industrial settings, the NI USB-5133 monitors dynamic process parameters that require high-speed measurement. For instance, in a packaging plant, it can track the voltage output of photoelectric sensors that detect product position on a conveyor belt. The module’s 4 channels let users monitor multiple sensors simultaneously, while its memory depth records hours of data to identify trends (e.g., sensor signal degradation over time). By integrating with LabVIEW, users can set up alerts for abnormal signals—triggering a notification if a sensor’s voltage drops below a threshold, preventing costly production delays.

Academic research and education

In universities, the NI USB-5133 is a valuable teaching and research tool. In electrical engineering labs, students use it to learn signal analysis: they measure sine waves, square waves, and noise signals, then compare theoretical calculations to real-world data. For research projects—such as studying vibration in mechanical systems or analyzing bioelectric signals (e.g., EMG)—the module’s portability lets students collect data in the field (e.g., a robotics lab or a sports science facility). Its compatibility with Python also makes it accessible to students with varying programming skills, fostering hands-on learning.

NI USB-5133

Related model recommendations

NI USB-5132

A sibling model to the NI USB-5133, with 2 channels (vs. 4) and 100 MS/s sampling rate (vs. 200 MS/s). It’s a cost-effective choice for applications needing fewer channels (e.g., basic electronics debugging) while retaining the same USB portability and NI-DAQmx compatibility.

NI PCIe-5122

A PCI Express-based oscilloscope module for high-performance benchtop setups. Unlike the USB-powered NI USB-5133, it offers 1 GS/s sampling and 1 GHz bandwidth—ideal for ultra-fast signals (e.g., 5G RF testing). It’s a 升级 (upgrade) option for labs requiring higher performance than the NI USB-5133.

NI USB-6212

A general-purpose DAQ module that complements the NI USB-5133. While the NI USB-5133 focuses on high-speed oscilloscope functions, the USB-6212 adds analog outputs and digital I/O—useful for closed-loop testing (e.g., generating a control signal while measuring a sensor’s response).

NI cDAQ-9178 + NI 9221

A modular DAQ system for scalable measurements. The cDAQ-9178 chassis (with USB connectivity) pairs with the NI 9221 (2-channel, 100 MS/s module) to create a customizable setup. It’s a 替代 (alternative) to the NI USB-5133 for applications needing more channels or mixed I/O (e.g., combining high-speed analog with temperature sensors).

NI LabVIEW 2024

Essential software for maximizing the NI USB-5133’s capabilities. LabVIEW lets users build custom measurement dashboards, automate test sequences, and perform advanced analysis (e.g., FFT for frequency-domain analysis). It’s a 匹配 (matching) tool that unlocks the module’s full potential beyond basic signal viewing.

Installation, commissioning and maintenance instructions

Installation preparation

Before using the NI USB-5133, ensure your PC meets the requirements: Windows 10/11 (64-bit) and a USB 3.0 port (for full 200 MS/s performance). Download and install the latest NI-DAQmx driver from NI’s website—this enables communication between the module and your PC. Inspect the module for physical damage (e.g., bent BNC connectors) and gather required tools: BNC cables (for connecting to signals) and a USB 3.0 cable (included with the module). For portable use, ensure your laptop’s battery is charged (or use a power bank) to avoid interruptions during field measurements. Always connect the module to a grounded PC to prevent electrostatic discharge (ESD) damage.

Maintenance suggestions

To maintain the NI USB-5133’s performance, clean the BNC connectors and USB port monthly with a dry, lint-free cloth—dust buildup can cause signal interference. Avoid exposing the module to extreme temperatures or moisture (stick to the 0 °C–55 °C operating range) to prevent component degradation. If you encounter signal distortion, check the BNC cables for damage (replace if frayed) and verify the input voltage range matches your signal (e.g., use ±10 V for high-amplitude signals). For software issues, update NI-DAQmx to the latest version—NI regularly releases bug fixes and performance improvements. If parts need replacement (e.g., a damaged USB port), use only NI-certified spare parts to ensure compatibility and measurement accuracy.

Service and guarantee commitment

National Instruments (NI) backs the NI USB-5133 with a comprehensive 1-year standard warranty, covering defects in materials and workmanship. For extended protection, customers can purchase NI’s ServicePlus plan, which extends coverage up to 5 years and includes priority technical support. NI’s global technical team is available 24/7 via phone, email, and online chat to assist with installation, debugging, or software integration—whether you’re troubleshooting a trigger issue or optimizing data logging.

NI also provides free access to online resources: video tutorials, application notes, and a user community where you can share tips with other NI USB-5133 users. If a module fails within the warranty period, NI will repair or replace it at no cost, with fast turnaround times to minimize downtime. This commitment reflects NI’s confidence in the NI USB-5133’s quality and its dedication to helping customers succeed in their test and measurement tasks.
