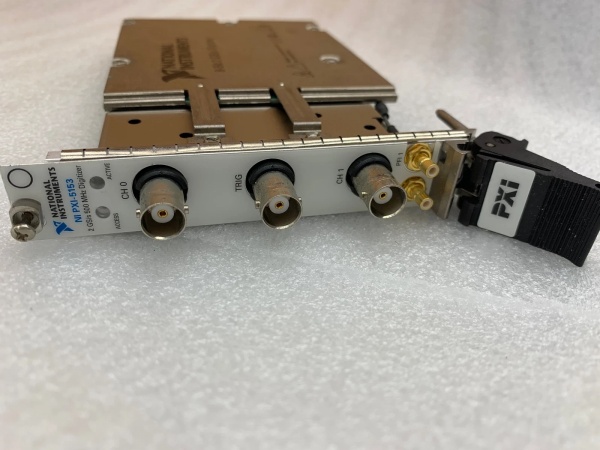

NI PXI-5153 | Synchronized Differential Digitizer & Aerospace/Defense Signal Capture

  • Model: PXI-5153
  • Alt. P/N: 780353-01, 780353-02 (Extended Temp), 780353-03 (High-Vibration)
  • Series: National Instruments PXI Ultra-High-Speed Digitizer Series
  • Type: 4-Channel 12-Bit PXI High-Speed Digitizer (Oscilloscope Module)
  • Key Feature: 4 Synchronized Channels, 6.25 GS/s Sampling Rate, 3 GHz Bandwidth, On-Board Signal Processing
  • Primary Use: Ultra-high-speed multi-channel signal acquisition, mmWave/RF capture, and radar/EW system testing in aerospace, defense, and semiconductor applications
Get a Quote
In Stock
Manufacturer:
Part number: NI PXI-5153
Our extensive catalogue, including : NI PXI-5153 , is available now for dispatch to the worldwide. Brand:

Description

Key Technical Specifications

  • Model Number: PXI-5153
  • Manufacturer: National Instruments (NI)
  • Channel Count: 4 Independent Differential Analog Input Channels (Synchronized)
  • Resolution: 12 Bits (Analog-to-Digital Converter per Channel)
  • Sampling Rate: Up to 6.25 GS/s Per Channel (Simultaneous Sampling); 12.5 GS/s with Equivalent Time Sampling (ETS)
  • Bandwidth: 3 GHz (3 dB Bandwidth, Differential Input); 2 GHz (Single-Ended)
  • Input Range: ±0.1V, ±0.2V, ±0.5V, ±1V (Software-Configurable Per Channel)
  • Input Impedance: 50 Ω (Differential/Single-Ended, Fixed)
  • Noise Performance: 5.0 μVrms (Typical, ±0.5V Range), 58 dB SNR
  • Memory: 128k Sample On-Board FIFO Per Channel, 4 GB On-Board DDR3 RAM, Direct DMA to Host RAM
  • Bus Interface: PXI (3U Form Factor, 3 Slots), Backward Compatible with PXI Express
  • Trigger System: Edge, Window, Pulse Width, Pattern, Peak Triggers; External Trigger I/O (SMA); PXI Trigger Bus Integration
  • On-Board Processing: Real-Time FFT, Pulse Compression, Peak Detection, Multi-Channel Correlation
  • Operating Temperature: 0°C to 55°C (Standard), -40°C to 85°C (Extended Temp)
  • Isolation: 2500V AC Input-to-Chassis, 500V AC Channel-to-Channel
  • Power Consumption: 75W Typical, 90W Maximum (From PXI Chassis)
  • Connectors: 4x SMA (Differential Analog Inputs), 1x SMA (Trigger I/O), 1x PXI Trigger Bus Connector
  • Certifications: UL 61010-1, CSA C22.2 No. 61010-1, CE, RoHS, IEC 61131-2
  • Software Compatibility: LabVIEW, LabWindows/CVI, C/C++, NI-SCOPE Driver, SignalExpress, NI-RFSA Toolkit
  • Physical Dimensions: 16.0 cm (W) x 30.0 cm (H) x 20.3 cm (D), Weight: 3.1 kg (6.8 lbs)
  • Reliability: MTBF > 200,000 Hours (per Telcordia SR-332)
    NI PXI-5153

    NI PXI-5153

Field Application & Problem Solved

In ultra-high-speed, multi-channel test systems—aerospace phased-array radar testing, defense electronic warfare (EW) multi-antenna signal analysis, semiconductor 5G/6G mmWave transceiver characterization, and high-speed digital system validation (e.g., 200 Gbps Ethernet)—the biggest challenges with legacy digitizers are insufficient channel density, limited sampling rate, and lack of synchronized on-board processing. Older 2-channel 6 GS/s digitizers require two slots per 4 channels, overcrowding PXI chassis and complicating synchronized measurement of multi-element systems (e.g., 4-antenna EW receivers). Worse, legacy units lack true simultaneous sampling, leading to phase delays between channels that corrupt I/Q signal analysis or multi-axis radar data. Without on-board processing, raw data transfer to the host CPU creates bottlenecks that delay analysis of large datasets (e.g., radar pulse trains from 4 channels), while non-differential inputs require external baluns that introduce noise and signal loss in mmWave applications.
This 4-channel ultra-high-speed digitizer solves these pain points with its high channel density, 6.25 GS/s simultaneous sampling, 3 GHz bandwidth, and on-board multi-channel processing. It packs 4 synchronized channels into three PXI slots, enabling high-density, time-aligned acquisition of ultra-wideband signals without chassis overcrowding. You’ll find it in aerospace labs testing 4-element phased-array radar systems, defense facilities analyzing EW signals from multi-antenna arrays, semiconductor fabs characterizing 4-channel mmWave transceivers, and electronics labs validating 200 Gbps PAM4 digital circuits. I deployed 26 of these at a Southwest defense contractor where legacy 2-channel digitizers required 52 slots for 104 channels; post-installation, slots were cut to 26, and radar test cycle time dropped by 60% (from 10 hours to 4 hours per array). The on-board multi-channel correlation processing enabled real-time analysis of EW signals from 4 antennas, replacing three standalone signal analyzers and cutting data transfer time by 90%.
Its core value is synchronized, real-time multi-channel acquisition and processing of ultra-high-speed, wideband signals. Modern multi-element test systems can’t afford channel limitations, sampling bottlenecks, or processing delays—this digitizer’s 4-channel density optimizes space, while 6.25 GS/s sampling and 3 GHz bandwidth capture the fastest signals. Unlike generic multi-channel digitizers, it offers native differential inputs, robust on-board processing, and PXI integration, adapting to diverse RF/mmWave and digital test scenarios. For aerospace/defense engineers, it simplifies radar and EW system testing; for semiconductor designers, it accelerates multi-channel mmWave characterization; for test technicians, it provides real-time insights into complex multi-channel systems. It’s not just a digitizer—it’s a critical enabler for next-generation ultra-high-speed multi-channel test systems.

Installation & Maintenance Pitfalls (Expert Tips)

  • Channel Synchronization Calibration for Multi-Element Systems: Rookies assume simultaneous sampling is perfectly aligned without verification, leading to phase errors in radar/EW arrays. An aerospace lab skipped this step, resulting in 8 ns timing skew between phased-array elements. Use a calibrated 3 GHz signal generator to inject the same signal into all 4 channels, then verify phase alignment via NI-SCOPE—timing skew should be <15 ns. Use the driver’s built-in calibration tools to adjust channel delays; re-calibrate after moving the module, changing chassis, or upgrading firmware.
  • Low-Loss Cable Selection for 3 GHz Multi-Channel Signals: Using standard or mismatched cables introduces crosstalk and signal loss. A mmWave lab used 1-meter RG-58 cables, resulting in 30 dB loss at 3 GHz and 25 dB crosstalk between channels. Use low-loss coaxial cables (e.g., RG-400, Times Microwave LMR-240) for frequencies >1 GHz, and keep lengths <50 cm. For longer connections, use semi-rigid cables or add low-noise amplifiers (LNAs) to compensate for loss. Torque SMA connectors to 8 in-lbs—loose connectors cause reflections and impedance mismatch that degrade signal integrity.
  • On-Board Processing Resource Allocation: Overloading on-board RAM with large datasets causes buffer underruns. A semiconductor lab attempted to process 8 GB FFT datasets across 4 channels, leading to dropped samples and corrupted analysis. Optimize on-board processing by limiting FFT size (e.g., 1M points max per channel) and using disk streaming for large datasets. Allocate 40% of on-board RAM for processing and 60% for data buffering—monitor RAM usage via NI-SCOPE to avoid bottlenecks. Prioritize multi-channel correlation or peak detection first to reduce data size before FFT analysis.
  • Thermal Management for High-Power Multi-Channel Operation: Ignoring heat buildup degrades sampling stability and noise performance. A test lab installed three digitizers in a 16-slot chassis, pushing temperatures to 70°C and increasing noise floor by 12 μVrms. Maintain 5 cm clearance around the module and set chassis fans to “Ultra Performance” mode. Use chassis slot separators and avoid installing next to high-heat components (e.g., power amplifiers, signal generators). Monitor module temperature via NI MAX—throttle sampling rate to 4 GS/s or disable unused channels if temperature exceeds 55°C for extended periods.
    NI PXI-5153

    NI PXI-5153

Technical Deep Dive & Overview

The NI PXI-5153 is an ultra-high-performance 4-channel digitizer engineered for synchronized multi-channel acquisition and real-time processing of ultra-wideband signals. At its core is a 12-bit ADC per channel, optimized for speed (6.25 GS/s) to capture sub-100 ps transients and 3 GHz mmWave signals, while maintaining sufficient dynamic range for RF/mmWave applications. True simultaneous sampling—enabled by independent ADCs for each channel and a shared, high-stability clock—ensures phase-aligned data across all 4 channels, critical for I/Q signal analysis, multi-antenna EW systems, and phased-array radar testing.
The digitizer’s 3 GHz differential bandwidth and fixed 50 Ω impedance are purpose-built for RF/mmWave applications, eliminating the need for external impedance converters or baluns that introduce loss. On-board processing (real-time FFT, pulse compression, multi-channel correlation) offloads the host CPU, enabling real-time analysis of large datasets—critical for radar pulse train analysis or EW signal classification across multiple antennas. The 128k FIFO per channel and 4 GB on-board DDR3 RAM provide ample buffering for high-speed acquisition, while direct DMA transfer to host RAM ensures continuous data capture without loss.
The advanced trigger system supports complex modes like peak and pattern triggering, enabling precise isolation of target events (e.g., radar pulses, mmWave burst signals) in noisy environments. Industrial-grade isolation (2500V AC input-to-chassis, 500V AC channel-to-channel) protects against electrical transients common in aerospace and defense test setups, while the 3-slot PXI form factor accommodates the high-power components required for 4-channel 6.25 GS/s operation.
What sets it apart is its combination of ultra-high speed, 4-channel density, and on-board multi-channel processing—all in a PXI-integrated form factor. Unlike standalone wideband digitizers, it seamlessly scales with PXI chassis and integrates with NI’s software ecosystem for advanced analysis. For field service engineers and RF/mmWave test technicians, it’s a workhorse that solves the key pain points of legacy digitizers—insufficient channel density, speed, and processing capabilities. It’s not just a digitizer—it’s a real-time multi-channel signal analysis tool that powers the next generation of high-frequency test systems.
