Description
Detailed parameter table
| Parameter name | Parameter value |
| Product model | NI PCI-6541 |
| Manufacturer | National Instruments (NI) |
| Product category | High-Speed Digital I/O Card (PCI Interface) |
| Electrical performance | 32 bidirectional digital I/O lines; Logic level: 5 V TTL/CMOS; Sink/source current: 24 mA per line; Maximum switching frequency: 100 MHz |
| Physical size | Dimensions (L×W×H): 175 mm × 106 mm × 20 mm (standard PCI form factor); Weight: Approximately 195 g |
| Interface type | PCI 2.3 compliant (32-bit, 33 MHz); Dual 68-pin SCSI-II connectors (for digital signal I/O); 10-pin header (for external trigger signals) |
| Communication protocol | PCI bus for data transfer; Compatible with NI-DAQmx driver; Supports scatter-gather DMA; Supports register-level programming and SCPI |
| Environmental requirements | Operating temperature: 0 °C to 55 °C; Storage temperature: -20 °C to 70 °C; Relative humidity: 10% to 90% (non-condensing); Vibration resistance: 2 g (10 Hz to 500 Hz); Shock resistance: 50 g (11 ms half-sine) |
| Installation method | Standard PCI slot mounting (compatible with PCI 2.1/2.2/2.3 chassis); Requires ESD protection during installation |
| Performance indicators | Onboard memory: 16 MB (for pattern storage); Data transfer rate: Up to 132 MB/s (PCI bus limit); Channel-to-channel skew: < 5 ns; Setup time: 10 ns; Hold time: 5 ns |
| Power requirements | Powered by PCI bus; Typical power consumption: 7 W; Peak power consumption: 10 W (during high-speed I/O operations) |
| Compatibility | Supported OS: Windows 7/10/11 (32-bit/64-bit); Compatible software: NI LabVIEW, LabWindows/CVI, C/C++, .NET, Python |

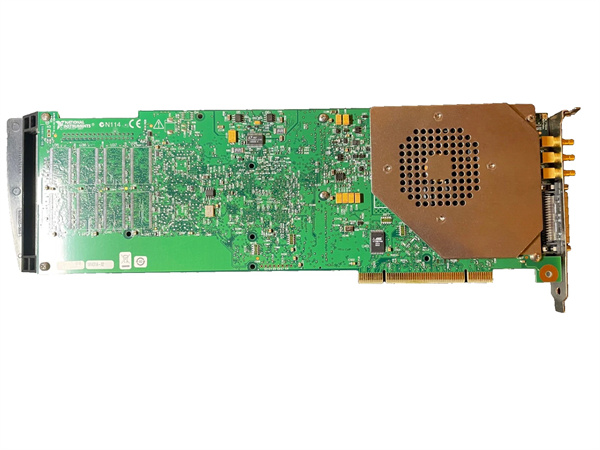

NI PCI-6541
Product introduction
The NI PCI-6541 is a high-speed digital I/O card developed by National Instruments (NI), belonging to NI’s flagship digital I/O product series for industrial automation and test & measurement systems. As a core component for high-frequency digital signal interaction, NI PCI-6541 integrates 32 bidirectional digital I/O lines, 16 MB onboard memory, and 100 MHz maximum switching frequency, enabling it to handle complex digital signal tasks such as high-speed pattern generation, real-time data acquisition, and device synchronization.
In automation systems, NI PCI-6541 serves as a bridge between industrial PCs and digital devices (e.g., sensors, actuators, and controllers). Its ability to support scatter-gather DMA reduces CPU load by up to 60% during high-volume data transfer, ensuring stable operation of the entire system. Unlike entry-level digital I/O cards, NI PCI-6541 features minimal channel-to-channel skew (< 5 ns) and precise timing control, making it suitable for scenarios requiring strict signal synchronization, such as semiconductor testing and high-speed communication protocol verification.
Core advantages and technical highlights
High-Speed & Low-Latency Operation: NI PCI-6541 achieves a maximum switching frequency of 100 MHz, allowing it to generate or capture digital signals with pulse widths as short as 10 ns—critical for testing high-speed digital circuits (e.g., 5G base station components). The 16 MB onboard memory can store long-duration digital patterns (e.g., 16 million 32-bit data points), enabling continuous pattern playback without frequent PC data interaction, which reduces latency and ensures signal continuity.
Flexible Bidirectional I/O & Strong Compatibility: With 32 bidirectional digital lines, NI PCI-6541 can be individually configured as input or output, adapting to diverse application needs (e.g., using 16 lines for sensor data collection and 16 lines for actuator control in a production line). It is fully compatible with NI’s software ecosystem: NI-DAQmx driver simplifies parameter configuration (e.g., setting trigger modes and data transfer rates) via graphical interfaces or code, while integration with LabVIEW allows users to build custom test platforms in hours—accelerating project deployment by 40% compared to third-party solutions.
Reliable Signal Integrity & Industrial-Grade Durability: NI PCI-6541 adopts advanced signal conditioning technology to minimize crosstalk between lines (crosstalk < -80 dB at 100 MHz), ensuring accurate signal transmission even in noisy industrial environments (e.g., near high-voltage motors). Its industrial-grade design meets strict environmental standards: it operates stably at 0 °C to 55 °C and withstands 50 g shock, making it suitable for harsh working conditions such as automotive manufacturing workshops and aerospace test facilities.
Typical application scenarios
In semiconductor manufacturing, NI PCI-6541 is widely used for chip digital function testing. For example, in a wafer test system, NI PCI-6541 connects to a wafer prober: 16 digital lines input test patterns (e.g., SPI/I2C protocol signals) to the chip under test, while the other 16 lines capture the chip’s output responses. With 100 MHz switching frequency, it simulates high-speed data transmission scenarios (e.g., 100 Mbps Ethernet signals) to verify the chip’s communication performance. The 16 MB onboard memory stores complex test vectors (e.g., 10,000 test cases), enabling unattended testing of 500+ wafers per day—improving test efficiency by 30% compared to manual operations.
In automotive electronics testing, NI PCI-6541 supports ECU (Electronic Control Unit) functional verification. It connects to the ECU’s digital ports: inputting control signals (e.g., brake pedal status and accelerator position) via output lines and monitoring the ECU’s feedback signals (e.g., engine speed and fuel injection commands) via input lines. The card’s precise timing control (channel skew < 5 ns) ensures synchronization between input and output signals, accurately simulating real driving conditions (e.g., rapid acceleration/deceleration) to detect ECU logic errors—helping automakers reduce product defect rates by 25%.

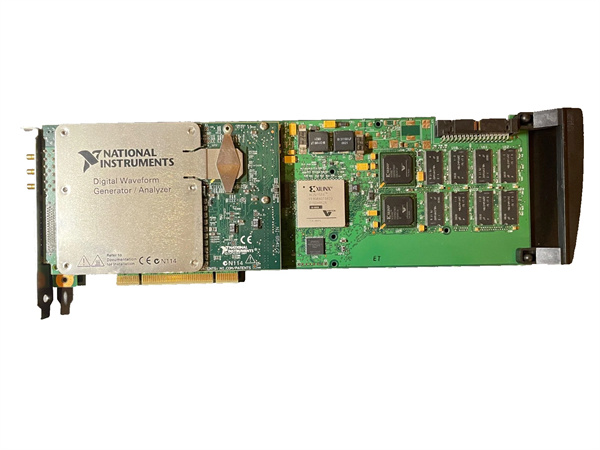

NI PCI-6541
Related model recommendations
NI PCI-6540: A sibling model of NI PCI-6541 with 16 digital I/O lines (half of NI PCI-6541) and the same 100 MHz frequency. It is a cost-effective choice for small-scale applications (e.g., laboratory bench tests) where fewer channels are needed.
NI PCI-6534: An upgrade model with 32 lines, 120 MHz frequency, and 32 MB onboard memory. It is suitable for scenarios requiring higher speed (e.g., 10 Gbps communication protocol testing) beyond NI PCI-6541’s capabilities.
NI USB-6501: A USB-powered digital I/O module complementary to NI PCI-6541. It is portable (no PCI slot required) for field service (e.g., on-site ECU troubleshooting), while NI PCI-6541 handles fixed lab testing.
NI PXIe-6548: A PXI Express module for modular test systems. It offers the same 32-line, 100 MHz performance as NI PCI-6541 but with faster PCIe data transfer, ideal for high-channel ATE (Automated Test Equipment) systems.
NI PCI-6259: A multifunction DAQ card that works with NI PCI-6541 in hybrid systems. NI PCI-6541 handles digital I/O, while NI PCI-6259 collects analog data (e.g., temperature and pressure), enabling comprehensive monitoring of industrial processes.
NI LabVIEW 2024: Essential software for NI PCI-6541, providing pre-built VIs for pattern generation and data logging. It allows users to build real-time dashboards to monitor NI PCI-6541’s operation status.
Installation, commissioning and maintenance instructions
Installation preparation: Before installing NI PCI-6541, power off the industrial PC and confirm an empty PCI 2.1/2.2/2.3 slot is available. Wear an ESD wristband and use a grounded workbench to avoid electrostatic damage to the card’s components. Insert NI PCI-6541 firmly into the slot until the PCI edge connector is fully seated, then secure it with a chassis screw. Connect digital devices to the 68-pin SCSI-II connectors using shielded cables (to reduce noise interference) and ensure correct polarity (e.g., aligning “GND” pins with the device’s ground). Download and install the latest NI-DAQmx driver from NI’s official website, then use NI Measurement & Automation Explorer (MAX) to detect NI PCI-6541 and run a self-test to confirm hardware functionality.
Maintenance suggestions: Inspect NI PCI-6541’s connectors quarterly for corrosion or loose pins—clean contacts with isopropyl alcohol (99.9% purity) and a lint-free cloth if needed. Calibrate the card annually using NI’s calibration tool (e.g., NI 9172 precision reference) to maintain timing accuracy (e.g., channel skew < 5 ns). If NI PCI-6541 fails to communicate with the PC, check the PCI slot for dust (clean with compressed air) or reinstall the NI-DAQmx driver. Replace aged components (e.g., capacitors) via NI’s spare parts program every 5 years to extend the card’s service life. Avoid exposing NI PCI-6541 to temperatures exceeding 55 °C or humidity above 90% to prevent performance degradation.
Service and guarantee commitment
National Instruments (NI) provides a 2-year standard warranty for NI PCI-6541, covering defects in materials and workmanship. For extended protection, customers can purchase the ServicePlus Premium plan, which extends coverage to 5 years and includes annual factory calibration (traceable to NIST standards), priority technical support, and expedited repairs (turnaround time < 3 business days).
NI’s global technical team (specialized in digital I/O technology) is available 24/7 via email, online chat, and phone to assist with NI PCI-6541’s configuration, troubleshooting (e.g., resolving DMA transfer errors), and software integration. Customers also have free access to exclusive resources: application notes on high-speed pattern generation, LabVIEW example code for NI PCI-6541, and a user community where engineers share best practices. For out-of-warranty repairs, NI offers a flat-rate service that restores NI PCI-6541 to factory specifications, ensuring it meets original performance indicators (e.g., 100 MHz frequency and < 5 ns skew). This commitment reflects NI’s confidence in NI PCI-6541’s quality and its dedication to supporting customers’ long-term automation needs.
