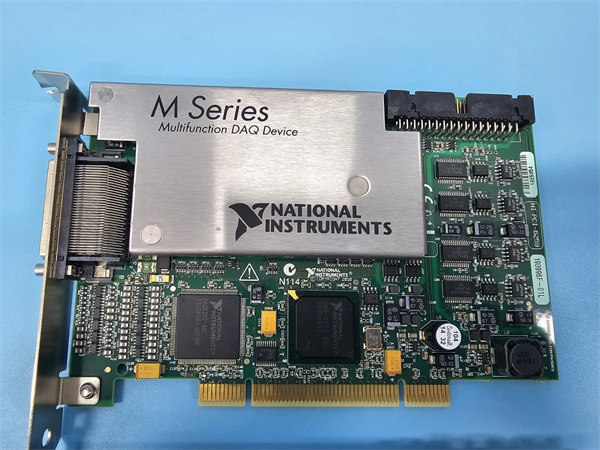

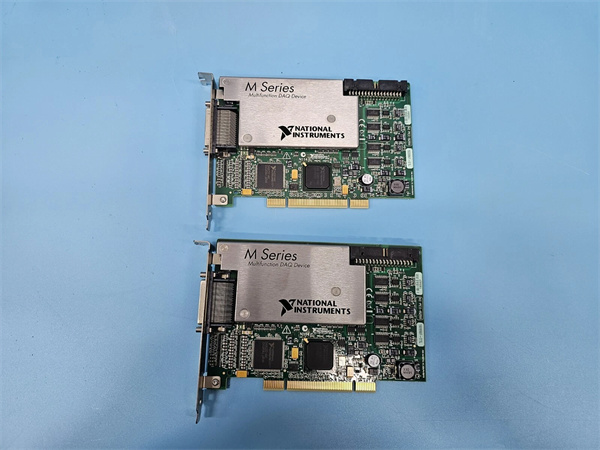

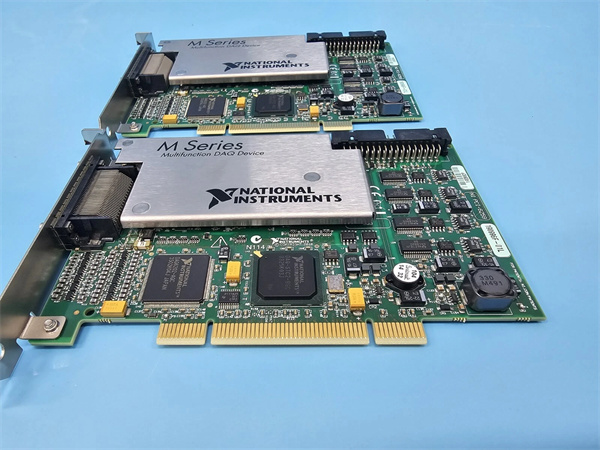

NI PCI-6259

Description

NI PCI-6259 Product Description

1. General Information

Product Model: NI PCI-6259

Manufacturer: National Instruments (NI)

Product Category: High-Precision High-Channel Multifunction Data Acquisition (DAQ) Card (PCI Interface)

2. Detailed Parameter Table

NI PCI-6259

3. Product Introduction

The NI PCI-6259 is a high-precision, high-channel multifunction DAQ card from National Instruments, positioned as a premium upgrade for applications requiring both extensive sensor coverage and lab-grade measurement accuracy. Unlike the NI PCI-6115 (focused on high-speed single-channel sampling), the PCI-6259 prioritizes channel density (32 single-ended/16 differential channels) and precision (16-bit resolution, ±0.008% FS accuracy)—making it ideal for complex multi-sensor setups where both quantity and quality of data matter.

Designed for industrial test engineers, research scientists, and system integrators, the PCI-6259 solves the “trade-off between channels and precision” that plagues many DAQ cards. For example, in a large-scale environmental monitoring system, it can simultaneously sample 16 differential temperature sensors (PT100 RTDs), 8 single-ended pressure sensors, and 8 voltage transducers—all with 16-bit resolution and < -90 dB crosstalk, ensuring no signal interference. Its 16 MB analog input FIFO buffer also handles long-duration data logging (e.g., 32 seconds of continuous sampling at 500 kS/s) without data loss, a capability the PCI-6115’s smaller buffer can’t match.

At its core, the PCI-6259 merges scalability with modern software integration. Powered by NI-DAQmx (optimized for high-channel workflows), it seamlessly connects to LabVIEW for real-time data visualization, TestStand for automated test sequences, and Python for script-based control. Its 48 digital I/O lines and 4×32-bit counters further expand its utility—critical for tasks like controlling industrial actuators while logging sensor data, or counting high-speed encoder pulses in motion control systems. Whether used to validate a multi-channel industrial process, conduct large-scale scientific experiments, or automate high-volume component testing, the PCI-6259 delivers reliable, high-fidelity data that drives efficient, data-driven decision-making.

4. Core Advantages and Technical Highlights

4.1 High-Channel Density with Uncompromised Precision

The PCI-6259’s 32 single-ended/16 differential channels—8× more than the PCI-6115’s 4 channels—enable comprehensive multi-sensor data acquisition without sacrificing accuracy. Its 16-bit resolution captures 65,536 grayscale levels (vs. 4,096 in the 12-bit PCI-6115), detecting 1 µV changes in low-level signals (e.g., strain gauge outputs). For example, in a structural testing lab, the PCI-6259 can sample 16 differential strain gauges (attached to a bridge model) at 100 kS/s—each with ±0.008% FS accuracy—providing precise data on stress distribution. The < -90 dB crosstalk ensures signals from adjacent gauges don’t interfere, a critical advantage over the PCI-6115 (which may introduce cross-contamination in high-channel setups).

4.2 Enhanced Analog Output & Digital I/O for Control

Unlike the PCI-6115 (2 analog outputs, 8 digital I/O lines), the PCI-6259 offers 4 analog outputs and 48 digital I/O lines—enabling closed-loop control in complex systems. In a semiconductor wafer test rig, for instance, the 4 analog outputs can independently control 4 voltage regulators (powering different die on a wafer), while the 48 digital I/O lines trigger 32 test probes and read 16 fault detectors. The analog outputs’ 2.86 MS/s update rate ensures fast response to feedback (e.g., adjusting regulator voltage within 350 ns if a die’s current exceeds limits), while the hardware-timed digital I/O (1 MS/s) synchronizes probe activation with data acquisition—capabilities the PCI-6115 can’t support due to limited I/O.

4.3 Large FIFO Buffer & Efficient DMA for High-Throughput

The PCI-6259’s 16 MB analog input FIFO buffer (vs. the PCI-6115’s unspecified small buffer) and scatter-gather DMA enable uninterrupted high-volume data transfer. When sampling 32 single-ended channels at 500 kS/s, the card generates 160 MB/s of data—scatter-gather DMA splits this into 4 kB blocks and transfers them to non-contiguous PC memory, reducing CPU load by 50% compared to the PCI-6115. The large buffer stores 32 seconds of data (vs. milliseconds in the PCI-6115), ensuring no loss during peak bus traffic (e.g., concurrent PLC communication in industrial setups). This is critical for long-duration tests like battery cycle monitoring, where 8 hours of continuous data logging is required.

4.4 Robust Environmental Tolerance & Signal Integrity

The PCI-6259’s wider operating temperature range (0–55 °C vs. 0–50 °C for the PCI-6115) and >92 dB SNR make it suitable for harsh industrial environments. In a steel mill’s rolling process monitoring, the card can withstand 55 °C ambient temperatures while sampling 8 differential temperature sensors (measuring furnace heat) and 8 voltage sensors (monitoring motor current). The >92 dB SNR ensures temperature readings (10 mV full-scale) are stable, even amid electromagnetic interference from nearby motors—something the PCI-6115’s >80 dB SNR might struggle with. The card’s external power header also supports high-current digital I/O (300 mA total), powering industrial relays directly without external amplifiers.

5. Typical Application Scenarios

5.1 Semiconductor Wafer Multi-Die Testing

Semiconductor fabs use the PCI-6259 in wafer test systems to validate multiple die simultaneously. A 300 mm wafer test rig, for example, connects 16 differential voltage sensors (monitoring die power) and 16 single-ended current sensors (measuring die leakage) to the PCI-6259. The card samples data at 200 kS/s, while its 4 analog outputs control 4 voltage regulators (powering die groups) and 48 digital I/O lines trigger test probes. NI-DAQmx integration with LabVIEW automates the test sequence: powering die, sampling signals, and logging results to a database. The PCI-6259’s precision (±0.008% FS) ensures accurate leakage current measurements (critical for identifying faulty die), while the large FIFO buffer handles 1 hour of continuous testing—reducing wafer test time by 40% compared to the PCI-6115.

5.2 Industrial Process Multi-Parameter Monitoring

In manufacturing, the PCI-6259 monitors complex processes with multiple variables. A chemical plant’s batch reactor, for instance, uses the card to sample 8 differential pressure sensors (vessel stress), 8 single-ended temperature sensors (reaction heat), 8 pH sensors (chemical balance), and 8 flow sensors (reagent delivery)—32 channels total—at 50 kS/s. The PCI-6259’s < -90 dB crosstalk ensures pH signals (low-level, 0–5 V) aren’t corrupted by pressure signals (high-level, ±10 V), while the 4 analog outputs adjust reagent flow valves in real time. The 16 MB buffer logs data during PLC communication peaks, and the 48 digital I/O lines trigger safety alarms if pressure/temperature exceeds thresholds. This setup ensures compliance with 21 CFR Part 11 (pharmaceutical standards) and reduces batch defects by 25%.

5.3 Large-Scale Scientific Research

In academic labs, the PCI-6259 supports multi-sensor experiments. A climate research lab, for example, uses the card to sample 16 differential anemometers (wind speed), 8 single-ended temperature sensors (ambient air), 4 humidity sensors, and 4 solar radiation sensors—32 channels—at 10 kS/s. The 16-bit resolution detects 0.1 m/s wind speed changes (critical for weather pattern analysis), while the >92 dB SNR ensures data accuracy in noisy lab environments. LabVIEW integration lets researchers build a real-time dashboard that plots all 32 channels, and the large FIFO buffer stores 24 hours of data for long-term trend analysis. The PCI-6259’s compatibility with Python also enables machine learning-based weather prediction models, using historical data logged by the card.

NI PCI-6259

6. Related Model Recommendations

6.1 NI PCI-6115

The PCI-6115 is a high-speed, low-channel alternative to the PCI-6259. It offers 10 MS/s per-channel sampling (faster than the PCI-6259’s 1.25 MS/s) but only 4 channels and 12-bit resolution. It’s ideal for applications where speed matters more than channel count (e.g., radar signal capture) but can’t match the PCI-6259’s multi-sensor capabilities.

6.2 NI PXIe-6368

A modern PXI Express upgrade to the PCI-6259, offering 32 single-ended/16 differential channels, 16-bit resolution, and 2 MS/s sampling rate. It supports PCIe x1 transfer (faster than PCI) and integrates with PXI chassis for modular systems. It’s a future-proof choice for users migrating from PCI to PXIe, while retaining the PCI-6259’s high-channel precision.

6.3 NI TB-4353

A precision terminal block designed for the PCI-6259’s dual 68-pin connectors, offering built-in signal conditioning for bridge sensors (e.g., strain gauges) and cold-junction compensation for thermocouples. Unlike generic terminal blocks, it includes ±0.1% precision resistors for bridge excitation—critical for the PCI-6259’s ±0.008% FS accuracy.

6.4 NI PCI-4060

A precision DMM card that pairs with the PCI-6259 in calibration systems. The PCI-4060 provides NIST-traceable voltage/current references (±0.0025% accuracy), while the PCI-6259 samples the DUT’s response—synchronized via RTSI for calibrated multi-channel measurements (common in aerospace or pharmaceutical labs).

6.5 NI LabVIEW 2024

Essential software for maximizing the PCI-6259’s high-channel capabilities. It provides pre-built VIs for 32-channel data logging, analog output control, and digital I/O synchronization. For example, engineers can use LabVIEW to build a dashboard that plots all 32 analog inputs in real time and triggers alerts if values exceed thresholds.

6.6 NI USB-6366

A USB-powered DAQ module that complements the PCI-6259 for field service. It offers 32 single-ended/16 differential channels (matching the PCI-6259) and 16-bit resolution but lower sampling rate (1 MS/s). It’s portable for on-site troubleshooting (e.g., validating sensor signals in a semiconductor fab), while the PCI-6259 handles permanent lab testing.

7. Installation, Commissioning and Maintenance Instructions

7.1 Installation Preparation

Before installing the PCI-6259, power off the PC and confirm it has an empty PCI 2.1/2.2/2.3 slot (PCIe slots require a PCI-to-PCIe adapter rated for 3.3 V signaling). Wear an ESD wristband and use a grounded workbench to protect the card’s precision components. Insert the card firmly into the slot—ensure the PCI edge connector is fully seated (misalignment causes crosstalk in high-channel setups) and secure it with the chassis screw.

Connect sensors to the dual 68-pin SCSI-II terminal blocks: use NI TB-4353 for bridge sensors (strain gauges), TB-2627 for thermocouples (with cold-junction compensation), or TB-2707 for general signals. For high-current digital I/O (e.g., powering relays), connect the optional external 5 VDC power supply to the 2-pin header. For multi-device synchronization, use a shielded 8-line RTSI cable to connect to other NI PCI instruments (e.g., PCI-4060).

Download the latest NI-DAQmx driver from NI’s website (Traditional NI-DAQ for legacy projects). Use NI Measurement & Automation Explorer (MAX) to detect the card, then run the “High-Precision Self-Test” (unique to the PCI-6259) to verify analog input accuracy and channel crosstalk.

7.2 Maintenance Suggestions

To preserve the PCI-6259’s precision, perform quarterly calibration using a NIST-traceable voltage reference (e.g., NI 9172). Use MAX’s calibration wizard to adjust offset and gain for all 7 input ranges—temperature changes of >5 °C can degrade accuracy. Inspect the dual 68-pin and RTSI connectors monthly: clean contacts with isopropyl alcohol (99.9% purity) and a lint-free cloth, and tighten terminal block screws to prevent loose connections (which cause signal noise).

Monitor the card’s operating temperature—install a thermal sensor near the PCI slot and ensure it stays below 50 °C (5 °C lower than the 55 °C maximum) to prevent thermal drift of precision amplifiers. If analog measurements drift beyond ±0.008% FS, replace the card’s internal reference capacitor (available via NI’s spare parts program)—aged capacitors reduce SNR.

For software maintenance, update NI-DAQmx annually to access bug fixes for high-channel workflows. Back up the card’s calibration coefficients (stored in MAX) to a secure location—loss of these coefficients requires full recalibration.

8. Service and Guarantee Commitment

National Instruments provides premium support for the PCI-6259, recognizing its role in mission-critical high-channel setups. The card includes a 2-year standard warranty, covering defects in materials and workmanship. For extended protection, NI offers the ServicePlus Precision Plan, which includes:

Annual factory calibration (traceable to NIST) to restore ±0.008% FS accuracy.

Priority technical support for high-channel issues (e.g., crosstalk, DMA transfer errors) via a dedicated team of NI precision measurement experts.

Access to exclusive resources: application notes on 32-channel data acquisition, LabVIEW example code for closed-loop control, and troubleshooting guides for digital I/O synchronization.

For out-of-warranty repairs, NI’s Precision Restore Service replaces aged components (e.g., reference capacitors, ADC buffers) and performs full signal integrity testing—returning the card to factory specifications. NI also maintains a user forum for high-channel DAQ users, where engineers share best practices for optimizing the PCI-6259 in multi-sensor setups.

This commitment reflects NI’s understanding that the PCI-6259 is more than a DAQ card—it’s a critical tool for precise, large-scale data acquisition, ensuring users meet industry standards (FDA, SEMI) without costly system overhauls.
