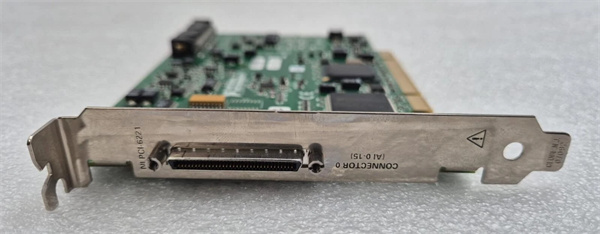

NI PCI-6221

Product Introduction

The NI PCI-6221 is a high-precision multifunctional DAQ card from National Instruments (NI), a flagship model in the brand’s M Series— a line engineered to deliver superior accuracy and flexibility compared to legacy E Series cards like the NI PCI-6071. Designed for applications where precision matters more than ultra-high speed, the NI PCI-6221 excels in industrial quality control, medical device testing, and academic research requiring low-noise, 16-bit measurements.

At its core, the NI PCI-6221 addresses key limitations of older DAQ cards: it boosts resolution from 12-bit (NI PCI-6071) to 16-bit, doubles digital I/O lines to 24, and upgrades counters to 32-bit/80 MHz for more advanced timing tasks. When paired with NI’s NI-DAQmx driver, the NI PCI-6221 seamlessly integrates with modern software tools, enabling users to build reliable test systems (e.g., validating medical sensor accuracy or monitoring industrial process variables). Its low noise performance (91 dB SNR) and expanded voltage ranges make the NI PCI-6221 a trusted choice for teams needing precise data capture without compromising versatility.

Core Advantages and Technical Highlights

16-Bit Precision for Low-Amplitude Signal Detection: The NI PCI-6221’s 16-bit analog input resolution delivers 65,536 voltage quantization levels—over 4,000x more than the 12-bit NI PCI-6071. This precision lets it detect ultra-small signal variations (e.g., 153 nV in the ±0.625 V range), critical for applications like medical device testing. For example, a manufacturer of glucose monitors uses the NI PCI-6221 to measure microvolt-level signals from blood glucose sensors, ensuring the devices meet FDA accuracy requirements. Even at 250 kS/s, the NI PCI-6221 maintains 16-bit precision, a balance of speed and accuracy the NI PCI-6071 cannot match.

Low Noise Performance for Reliable Data: With 91 dB SNR (typical), the NI PCI-6221 minimizes electrical noise— a significant upgrade over the NI PCI-6071’s 70 dB typical SNR. This low noise is essential for laboratory research, where scientists use the NI PCI-6221 to measure faint signals from biological sensors (e.g., EEG electrodes) without interference. In industrial settings, the card’s noise immunity lets it capture stable data near high-power machinery, eliminating the need for expensive external signal conditioning. This reduces system complexity and ensures consistent measurements over time.

Expanded Digital I/O and Counter Capabilities: The NI PCI-6221 includes 24 digital I/O lines (3x more than the NI PCI-6071) and 4x 32-bit/80 MHz counters— a game-changer for complex control tasks. A factory automation team, for instance, uses the card’s digital I/O to control 10 relays and read 8 proximity sensors, while the counters track encoder feedback from 2 conveyor motors. This integration replaces three separate modules (DAQ, digital I/O, counter) with one NI PCI-6221, saving PCI slots and reducing hardware costs by up to 50%.

High-Speed Analog Output for Waveform Generation: Unlike the NI PCI-6071 (10 kS/s analog output), the NI PCI-6221 delivers 833 kS/s per channel for analog output, enabling it to generate complex waveforms (e.g., sine waves, arbitrary test signals). In aerospace component testing, engineers use the NI PCI-6221 to simulate sensor inputs (e.g., 1 kHz pressure waveforms) for avionics ECUs, verifying how the units respond to dynamic conditions. The card’s 8 kSample FIFO buffer ensures smooth waveform generation without glitches, even during high PC load.

Typical Application Scenarios

The NI PCI-6221 excels in precision-focused applications across industries. In medical device manufacturing, it is used to validate wearable health monitors: technicians connect the NI PCI-6221 to a monitor’s heart rate sensor output, sampling at 125 kS/s to measure signal accuracy against a reference device. The card’s 16-bit precision captures microvolt-level variations in the sensor signal, while its low noise ensures no false readings—critical for meeting ISO 13485 medical standards. The NI PCI-6221’s digital I/O also controls test chamber temperature, letting users validate monitor performance in extreme conditions.

In industrial process control, the NI PCI-6221 monitors critical variables in chemical plants: engineers connect 6 differential pressure sensors (analog input) to the card to track reactor pressure, while digital I/O lines trigger alarms if pressure exceeds safety limits. The NI PCI-6221’s 85 dB SNR ensures stable measurements even near noisy pumps, and its 8 kSample buffer prevents data loss during PC updates. By replacing older E Series cards like the NI PCI-6071, the plant reduces calibration frequency and improves data reliability—lowering maintenance costs by 25%.

In academic research, the NI PCI-6221 is a staple in biomedical labs: students use the card to record neural signals from animal models, sampling at 250 kS/s to capture fast-action potentials. The card’s 16-bit resolution distinguishes between overlapping neural signals, while its counters track stimulus timing—enabling studies on brain-muscle coordination. Its compatibility with MATLAB also lets students analyze data using familiar tools, accelerating research workflows.

NI PCI-6221

Related Model Recommendations

NI PCI-6071: A legacy E Series DAQ card (12-bit, 1.25 MS/s), a predecessor to the NI PCI-6221—ideal for users upgrading from high-speed, lower-precision systems to 16-bit accuracy.

NI PCIe-6321: A PCI Express (PCIe) version of the NI PCI-6221, offering faster data transfer (PCIe x1) and identical 16-bit precision—suitable for users transitioning to PCIe motherboards.

NI PCI-6229: An M Series card with 32 analog inputs (double the NI PCI-6221), an expansion for applications needing more channels (e.g., multi-sensor environmental monitoring).

NI cDAQ-9205: A CompactDAQ 16-channel module, a portable alternative to the NI PCI-6221 for field testing (e.g., on-site water quality sampling) where PCI-based systems are impractical.

NI PCI-6251: An M Series card with 1 MS/s sampling rate, a higher-speed alternative to the NI PCI-6221 for applications needing faster capture (e.g., dynamic vibration testing).

NI PCI-6036: An E Series card (16-bit, 200 kS/s), a cost-effective backup for the NI PCI-6221 in non-critical applications where 250 kS/s speed is unnecessary.

NI PXIe-6363: A PXIe-based DAQ module with 16 analog inputs, a modular upgrade to the NI PCI-6221 for large-scale test systems requiring PXI synchronization (e.g., automotive ECU testing).

NI PCI-6281: An M Series card with 24-bit resolution, a higher-precision alternative to the NI PCI-6221 for applications like audio testing or low-level sensor measurements.

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing the NI PCI-6221, confirm the host PC has an available 32-bit PCI slot (3.3 V or 5 V compatible) and meets system requirements (Windows 7/10/11, 8 GB RAM, 500 MB free disk space for NI-DAQmx). Power off the PC and disconnect all power sources. Use an anti-static wristband and mat to handle the NI PCI-6221—its precision ADC components are sensitive to electrostatic discharge. Align the card’s edge connector with the PCI slot, press firmly until the bracket seats against the case, and secure with a screw (to prevent vibration-induced noise). After installation, install the latest NI-DAQmx driver and run the “NI DAQmx Self-Calibration” utility in NI Measurement & Automation Explorer (MAX) to optimize accuracy for the PC’s power supply.

Maintenance suggestions: Clean the NI PCI-6221’s PCI connector every 3 months with low-pressure compressed air to remove dust (a common cause of noise or connectivity issues). Run self-calibration quarterly (or after temperature changes exceeding 5 °C) to maintain 16-bit precision—critical for medical or aerospace applications. If the NI PCI-6221 exhibits noisy measurements, check for loose cables, verify the input range matches the signal amplitude (e.g., use ±0.625 V for 500 mV signals), and test the card in a different PCI slot. Annual external calibration (per ISO 17025) is recommended for traceable accuracy. For hardware faults (e.g., unresponsive counters), contact NI support—do not open the card, as this voids the warranty and risks damaging precision components.

Service and Guarantee Commitment

The NI PCI-6221 comes with a standard 1-year manufacturer’s warranty, covering defects in materials and workmanship. NI guarantees the NI PCI-6221 will meet all published technical specifications during the warranty period, with free repair or replacement of defective units. Customers can extend coverage to 5 years via NI’s Extended Service Program (ESP), which includes annual ISO 17025-calibrated calibration, priority technical support (24/7 for critical applications), and expedited repair (48-hour turnaround).

NI provides specialized support for the NI PCI-6221 through its team of precision DAQ experts: users gain access to application notes (e.g., “Minimizing Noise in Medical Measurements with the NI PCI-6221”), video tutorials on calibration, and direct phone/email support. For custom projects (e.g., building a FDA-compliant medical test system), NI offers professional services—including system design, software validation, and on-site training—to help users maximize the NI PCI-6221’s value. This commitment ensures users rely on consistent, accurate performance, protecting their investment in precision DAQ technology.
