NI PCI-1200

Product introduction

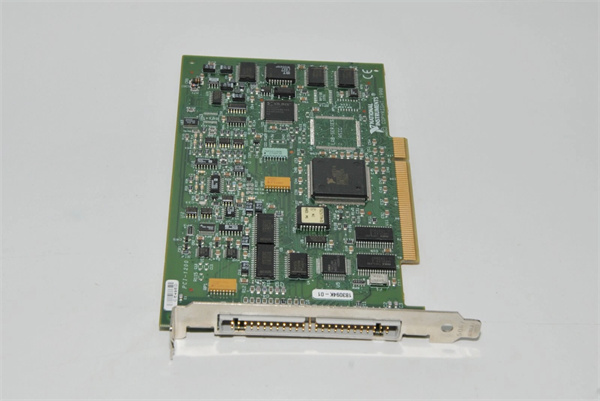

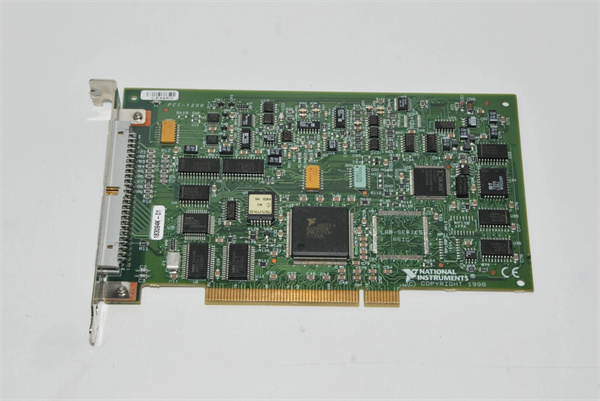

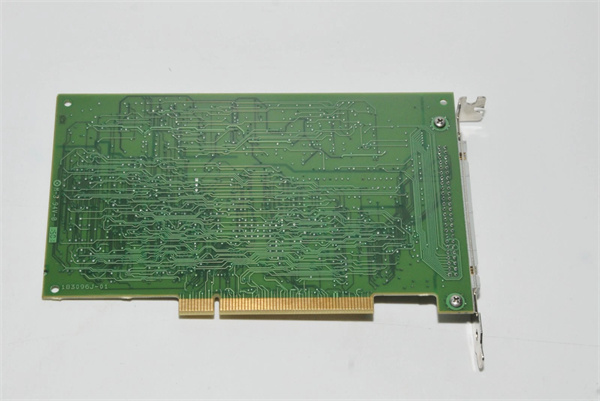

The NI PCI-1200 is a versatile multifunction DAQ card developed by National Instruments (NI), a pioneer in test and measurement technology. As a foundational product in NI’s legacy DAQ lineup—trusted for decades in labs and small-scale industrial setups—the NI PCI-1200 is engineered to deliver cost-effective, all-in-one data acquisition for analog, digital, and counter/timer tasks.

Designed for engineers, researchers, and educators, the NI PCI-1200 combines 16-channel analog input, 2-channel analog output, and 16 digital I/O lines in a single PCI card—eliminating the need for multiple specialized modules. Unlike basic DAQ devices, its 12-bit resolution and 100 kS/s sampling rate balance precision and speed, making it ideal for applications like laboratory experimentation, small-scale process monitoring, and educational projects.

At its core, the NI PCI-1200 merges simplicity with flexibility. Powered by NI’s NI-DAQmx driver, it integrates seamlessly with LabVIEW for visual programming—letting users build custom data logging or control systems in hours, not days. It also supports legacy software (e.g., Traditional DAQ) to protect investments in older test setups. Whether used to measure temperature in a chemistry lab, control a small motor in a robotics project, or log sensor data in a research experiment, the NI PCI-1200 delivers reliable performance in a compact, easy-to-use package.

Core advantages and technical highlights

All-in-one functionality for cost savings

The NI PCI-1200’s multifunction design is a key advantage: it combines analog input, analog output, digital I/O, and counter/timer capabilities in one card. For example, in a university electronics lab, students can use a single NI PCI-1200 to measure sensor voltages (analog input), generate test signals (analog output), control LED indicators (digital output), and count motor rotations (counter/timer)—no need to purchase four separate devices. This integration cuts hardware costs by up to 40% and simplifies system setup, as users only need to install one card and one driver.

Balanced precision and speed for diverse tasks

With 12-bit resolution and 100 kS/s sampling rate, the NI PCI-1200 strikes a perfect balance for mid-speed, high-accuracy applications. Its analog input accuracy (±0.05% FS) ensures reliable measurements of slow-changing signals like temperature (from thermocouples) or pressure (from strain gauges), while the 100 kS/s rate handles faster signals such as audio or vibration data. For instance, in a small manufacturing line monitoring conveyor belt speed, the NI PCI-1200 can sample a proximity sensor’s output at 50 kS/s to track speed variations, then use its analog output to adjust a motor’s voltage—all in real time.

Flexible software integration for easy customization

The NI PCI-1200 works seamlessly with NI’s software ecosystem, making it accessible to users of all skill levels. Beginners can use LabVIEW’s drag-and-drop VIs to build data acquisition systems without coding—for example, creating a dashboard to plot analog input data in real time. Advanced users can leverage C/C++ or Python to program the card at the register level, customizing triggers or data processing for unique tasks (e.g., filtering noise from a sensor signal). It also supports legacy Traditional DAQ, ensuring compatibility with older LabVIEW projects—critical for labs that rely on established test procedures.

Rugged design for long-term reliability

Built to NI’s industrial standards, the NI PCI-1200 features a rugged PCB design and components rated for extended use. Its programmable gain amplifier (PGA) reduces noise by amplifying weak signals (e.g., 10 mV from a strain gauge) before digitization, while digital debouncing filters out electrical noise from industrial environments. The card’s screw-terminal connectors ensure secure signal connections—preventing loose wires that cause data glitches—and compatible hot-swappable terminals let users reconfigure signals without powering down the PC. This durability ensures the NI PCI-1200 operates reliably for years, even in daily lab or light industrial use.

Typical application scenarios

Educational laboratories

In university engineering and science labs, the NI PCI-1200 is a staple tool for teaching data acquisition fundamentals. For example, in an electrical engineering course, students use the card to measure the output of a function generator (analog input), analyze signal frequency with LabVIEW, and generate a matching signal (analog output) to test a filter circuit. In a mechanical engineering lab, it connects to load cells to measure force during material stress tests, with digital I/O lines triggering a camera to capture test images. The NI PCI-1200’s all-in-one design lets students experiment with multiple DAQ functions, building practical skills for future careers.

Small-scale industrial monitoring

In small manufacturing facilities or workshops, the NI PCI-1200 is used for localized process monitoring. A bakery, for instance, can connect the card to temperature sensors in ovens (analog input) to log heat distribution during baking—ensuring consistent bread quality. The digital I/O lines can detect if an oven door is open (input) and trigger an alarm (output), while the analog output adjusts a cooling fan’s speed post-baking. The NI PCI-1200’s low cost and easy setup make it ideal for small businesses that need reliable monitoring without investing in large-scale DCS systems.

Research and development (R&D)

In academic or industrial R&D labs, the NI PCI-1200 supports prototype testing and data logging. For a team developing a portable air quality sensor, the card measures the sensor’s analog output (VOC levels) at 10 kS/s, uses digital I/O to control a pump, and logs data to a PC for analysis. In robotics R&D, it counts encoder pulses (counter/timer) to track a robot arm’s position and sends voltage signals (analog output) to motor drivers for precise movement control. The NI PCI-1200’s flexibility lets researchers adapt it to diverse projects, from environmental sensing to mechatronics testing.

NI PCI-1200

Related model recommendations

NI PCI-6221

A modern upgrade to the NI PCI-1200, offering higher performance: 16-bit resolution, 250 kS/s sampling rate, and 32 digital I/O lines. It retains the multifunction design but adds features like simultaneous sampling and better noise immunity—ideal for users needing more precision than the NI PCI-1200 provides.

NI USB-6008

A USB-powered DAQ module that complements the NI PCI-1200. Unlike the PCI-based NI PCI-1200, it’s portable and works with laptops—perfect for field research or temporary test setups (e.g., measuring environmental data outdoors). It shares similar analog/digital functionality (8 analog inputs, 2 outputs) and NI-DAQmx compatibility.

NI PCI-1202

A sibling model to the NI PCI-1200, with 8 analog input channels (vs. 16) but higher analog output resolution (14 bits vs. 12 bits). It’s a cost-effective choice for applications needing fewer inputs but more precise output (e.g., controlling a precision valve), while retaining the NI PCI-1200’s digital I/O and counter features.

NI 9205

A CompactDAQ module that pairs with the NI PCI-1200 for distributed systems. The NI PCI-1200 handles local DAQ in a lab PC, while the 9205 (installed in a CompactDAQ chassis) collects data from remote sensors (e.g., in a factory warehouse). Both use NI-DAQmx, ensuring consistent data formatting across the system.

NI LabVIEW 2024

Essential software for maximizing the NI PCI-1200’s capabilities. LabVIEW provides pre-built VIs for analog input logging, digital I/O control, and counter/timer operations—letting users build custom systems in minutes. For example, engineers can use LabVIEW to create a real-time dashboard that plots NI PCI-1200 sensor data and sends alerts if values exceed thresholds.

NI PCI-485I2

An industrial serial communication card that works alongside the NI PCI-1200 in hybrid systems. The NI PCI-1200 collects analog/digital data, while the PCI-485I2 sends that data to remote PLCs via RS-485—ideal for small factories that need to integrate local DAQ with industrial control networks.

Installation, commissioning and maintenance instructions

Installation preparation

Before installing the NI PCI-1200, power off the PC and confirm it has an empty PCI slot (PCI 2.1/2.2 compliant). Wear an ESD wristband to prevent electrostatic damage. Insert the card firmly into the PCI slot and secure it with the chassis screw. Connect sensors/devices to the screw-terminal block: match analog signals to the correct input channels, set digital I/O lines as input/output via software, and connect counter signals to the DB-9 port. Download and install the latest NI-DAQmx driver (or Traditional DAQ for legacy systems) from NI’s website. Use NI’s Measurement & Automation Explorer (MAX) to verify the card is detected, run a self-test, and calibrate analog channels if needed (follow NI’s calibration wizard for accuracy).

Maintenance suggestions

To maintain the NI PCI-1200’s performance, inspect the terminal block quarterly for loose wires or corrosion—tighten screws gently and clean contacts with isopropyl alcohol and a lint-free cloth. Avoid exposing the PC (and card) to extreme temperatures or moisture (stick to the 0 °C–55 °C range) to prevent component degradation. If analog measurements drift, recalibrate the card using MAX’s calibration tool (recommended annually for precision applications). For digital I/O issues, check for damaged cables (replace if frayed) and verify TTL voltage levels (5 V) with a multimeter. Update NI-DAQmx periodically to access bug fixes for newer operating systems. Use only NI-compatible terminal blocks (e.g., NI TB-2707) for repairs—third-party blocks may cause signal interference or damage the card.

Service and guarantee commitment

National Instruments (NI) supports the NI PCI-1200 with a 1-year standard warranty, covering defects in materials and workmanship. While the card is a legacy product, NI continues to offer technical support via its global knowledge base, which includes application notes, driver downloads, and troubleshooting guides for the NI PCI-1200. For urgent issues, NI’s technical team is available via email and online chat to assist with driver installation, software integration, or hardware diagnostics.

NI also provides access to a community forum where users share tips for using the NI PCI-1200 in educational or small-scale industrial projects. For out-of-warranty repairs, NI offers a flat-rate service to restore the card to factory specifications—extending its lifespan for users who rely on legacy test setups. This commitment reflects NI’s dedication to supporting even older products, ensuring customers get long-term value from their NI PCI-1200 investment.
