NI CRIO-9040

Product introduction

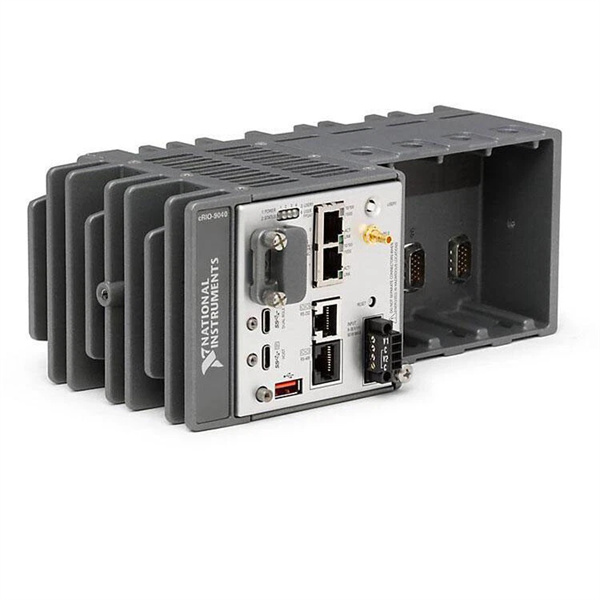

The NI cRIO-9040 is a compact, rugged CompactRIO embedded controller developed by National Instruments (NI), designed to bridge the gap between modular DAQ cards like the NI PXI-6232 and standalone embedded systems. Unlike the NI PXI-6232 (a PXI module requiring a chassis and external controller), the NI cRIO-9040 integrates a 4-core Intel Atom real-time processor, Xilinx Zynq FPGA, and 4 C Series I/O slots in one self-contained unit—enabling deterministic control and data acquisition in space-constrained, harsh environments.

In embedded workflows, the NI cRIO-9040 acts as a “all-in-one control hub” for applications requiring real-time responsiveness and ruggedness. For example, in a mobile robotics system, it uses a C Series analog input module (connected to its 4 I/O slots) to measure battery voltage and motor current (16-bit resolution, 100 kS/s), while its FPGA executes 1 MHz closed-loop motor control algorithms—all with < 1 µs task jitter. Its -20 °C to 60 °C operating range and 50 g shock resistance make it suitable for industrial floors or outdoor testing, a significant advantage over the NI PXI-6232 (limited to 0 °C to 55 °C and requiring a fragile PXI chassis).

Core advantages and technical highlights

Rugged Design for Harsh Environments: The NI cRIO-9040’s -20 °C to 60 °C operating range, 5 g vibration resistance, and IP30 rating make it far more rugged than the NI PXI-6232 and PXI chassis. This enables deployment in industrial environments with temperature fluctuations (e.g., factory assembly lines) or mobile applications (e.g., vehicle testing). For instance, a construction equipment manufacturer uses the NI cRIO-9040 to monitor hydraulic pressure in bulldozers: its rugged design withstands dust, vibration, and -10 °C winter temperatures, while the NI PXI-6232 would require a climate-controlled enclosure—adding cost and complexity.

Deterministic Real-Time + FPGA Performance: The NI cRIO-9040 combines a 4-core real-time processor (for high-level control logic) and Xilinx Zynq FPGA (for low-latency, deterministic tasks)—delivering < 1 µs jitter for FPGA-based tasks (e.g., pulse-width modulation, encoder feedback). Unlike the NI PXI-6232 (dependent on an external PC’s non-deterministic OS), the NI cRIO-9040 runs NI Linux Real-Time, ensuring consistent task execution. In a semiconductor wafer handling robot, its FPGA processes encoder data at 1 MHz to adjust robot arm position, while the real-time processor manages communication with a factory SCADA system—preventing the timing delays that could cause wafer damage.

Modular I/O Flexibility with C Series: The NI cRIO-9040’s 4 C Series slots support over 100 NI C Series modules (analog, digital, counter, CAN, etc.), enabling users to tailor I/O to their needs—unlike the NI PXI-6232’s fixed 16 AI/2 AO channels. For example, a renewable energy lab uses the NI cRIO-9040 with: 1) a 16-channel analog input module (to measure solar panel voltage), 2) a 4-channel analog output module (to control inverter settings), 3) a digital I/O module (to trigger safety relays), and 4) a CAN module (to communicate with battery management systems). This flexibility lets the lab reconfigure the system for wind or solar testing without replacing the controller.

Compact, Standalone Operation: At 149 mm × 149 mm × 63 mm, the NI cRIO-9040 is 70% smaller than a 4-slot PXI chassis + NI PXI-6232 + controller—ideal for space-constrained applications (e.g., inside vehicle dashboards, compact test enclosures). Its 9–36 VDC wide-range power input also eliminates the need for AC power, enabling deployment in mobile systems (e.g., drones, portable test kits). A defense contractor, for example, uses the NI cRIO-9040 in a portable weapon system tester: its compact size fits in a backpack, and its 12 VDC input runs from a car battery—something impossible with a PXI-based setup.

Typical application scenarios

In industrial automation, the NI cRIO-9040 controls a small-scale packaging machine. The controller uses a C Series 8-channel analog input module (connected to its I/O slots) to measure product weight (±5 V load cell signals) at 50 kS/s, and a C Series 16-channel digital output module to trigger conveyor belts and sealers. Its FPGA executes a 100 kHz PID algorithm to adjust conveyor speed based on weight, ensuring consistent packaging. The NI cRIO-9040’s TSN-enabled Ethernet port connects to a factory MES system for production logging, while its -20 °C to 60 °C operating range withstands the packaging plant’s hot summer temperatures—outperforming the NI PXI-6232, which would require a cooled cabinet.

In aerospace ground testing, the NI cRIO-9040 validates aircraft avionics components. It uses a C Series 4-channel analog output module to simulate sensor inputs (e.g., altitude, airspeed) to the avionics unit, and a C Series 8-channel digital input module to capture the unit’s output commands. Its FPGA synchronizes signal generation and data acquisition with < 100 ns latency, critical for testing avionics response times. The NI cRIO-9040’s rugged design (50 g shock resistance) withstands the vibration of test rigs, and its encrypted storage ensures sensitive test data is secure—meeting aerospace data protection standards.

Related model recommendations

NI PXI-6232: A PXI DAQ module complementary to the NI cRIO-9040 for lab-based pre-development. Users prototype with the NI PXI-6232 in a PXI chassis, then deploy with the NI cRIO-9040 for embedded/rugged applications.

NI 9205: A C Series 16-channel analog input module (16-bit, 250 kS/s) designed for the NI cRIO-9040. It adds low-level signal measurement capabilities (e.g., thermocouples, strain gauges) to the controller—expanding its AI functionality beyond the NI PXI-6232.

NI 9474: A C Series 8-channel digital output module (24 VDC, 0.5 A per channel) for the NI cRIO-9040. It drives high-current industrial actuators (e.g., solenoids, motors)—a capability the NI PXI-6232 lacks without external signal conditioning.

NI cRIO-9055: A higher-performance sibling of the NI cRIO-9040, with an Intel Core i7 processor and Xilinx Zynq-7045 FPGA. It replaces the NI cRIO-9040 for CPU-intensive applications (e.g., machine learning-based quality inspection).

NI VeriStand 2024: Real-time testing software optimized for the NI cRIO-9040. It lets users configure FPGA-based control loops and data logging without low-level programming—reducing development time by 50%.

NI LabVIEW FPGA Module: Essential software for programming the NI cRIO-9040’s Zynq FPGA. It provides graphical tools to design deterministic tasks (e.g., encoder processing, PWM generation)—critical for embedded control.

NI 9149: A C Series Ethernet expansion chassis for the NI cRIO-9040. It adds 8 more C Series slots, enabling the controller to support up to 12 C Series modules—scaling beyond the NI PXI-6232’s fixed channel count.

NI USB-6210: A portable DAQ card for field calibration of the NI cRIO-9040. It verifies the accuracy of C Series modules connected to the NI cRIO-9040, ensuring measurements meet NIST standards.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the NI cRIO-9040, confirm the operating environment meets its rugged specifications (-20 °C to 60 °C, 5–95% RH). Mount the controller using DIN rail (included brackets), panel, or desktop—ensure at least 50 mm of clearance around the unit for airflow. Connect C Series modules to the 4 I/O slots: align the module’s guide pins with the controller’s slots, push until it clicks, then secure with the front-panel screw. Wire sensors/actuators to the C Series modules (follow module-specific wiring guides), and connect power (9–36 VDC) to the controller’s power input—use a twisted-pair cable to minimize noise. Connect a Gigabit Ethernet cable to the TSN port for software deployment, then install LabVIEW + LabVIEW Real-Time/FPGA Modules on a host PC. Use NI Measurement & Automation Explorer (MAX) to detect the NI cRIO-9040 and deploy the real-time OS (if not pre-installed).

Maintenance suggestions: Inspect the NI cRIO-9040’s Ethernet and USB ports quarterly: clean contacts with isopropyl alcohol (99.9% purity) and a lint-free cloth to remove dust. Check C Series module connections monthly—ensure they are fully seated to prevent I/O disconnections. Calibrate C Series modules (e.g., NI 9205) annually using a NIST-traceable reference (e.g., NI 9172) to maintain measurement accuracy. If the NI cRIO-9040 experiences communication issues, update its firmware via MAX or verify the Ethernet cable (use a TSN-certified cable for time-sensitive applications). Avoid exposing the controller to temperatures above 60 °C or humidity above 95%—extreme conditions can damage the processor or FPGA. Backup the controller’s configuration and data monthly (via MAX) to prevent data loss in case of flash storage failure.

Service and guarantee commitment

National Instruments (NI) provides a 3-year standard warranty for the NI cRIO-9040, covering defects in the processor, FPGA, I/O slots, and power supply—longer than the 2-year warranty of the NI PXI-6232. For extended protection, the ServicePlus Embedded Plan extends coverage to 5 years, including annual factory calibration of C Series modules (when purchased with the controller), priority technical support (2-hour response time for industrial/aerospace customers), and expedited repairs (turnaround time < 3 business days).

NI’s global technical team includes embedded systems specialists, offering 24/7 support for the NI cRIO-9040—assisting with FPGA programming, TSN configuration, and rugged deployment. Customers gain free access to exclusive resources: application notes on industrial control with the NI cRIO-9040, LabVIEW FPGA example code for PID control, and a user community for sharing embedded testing best practices. For out-of-warranty repairs, NI’s Embedded Restore Service replaces aged components (e.g., processor, FPGA) and verifies real-time performance—restoring the NI cRIO-9040 to factory specs. This commitment reflects NI’s confidence in the controller’s durability and dedication to supporting users’ long-term embedded workflow needs.
