Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 8104-AO-IP |
| Manufacturer | MTL Instruments (Eaton) |
| Product Category | Analog Output Module |
| Number of Channels | 8 single-ended outputs |
| Output Signal Range | 4-20 mA |
| Resolution | 12 bits |
| Response Time | 25 ms (max) |
| Operating Voltage | 24 Vdc ±10% |
| Output Compliance | 20 mA at 21.6 Vdc supply (into 700 Ω load) |
| Accuracy | ±0.25% of span |
| Isolation | Any channel to Railbus – 100 V ac |
| Communication Interface | Railbus, PROFIBUS-DP |
| Power Consumption | Railbus (12V) current: 100 mA (typ.), 150 mA (max.) |
| Field Power Supply | 300 mA (max.) at 24 Vdc ±10% |
| Operating Temperature Range | -20°C to +60°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (L×W×H) | 42 mm (width) |
| Weight | 200 g |
| Certifications | CE, UL, RoHS |

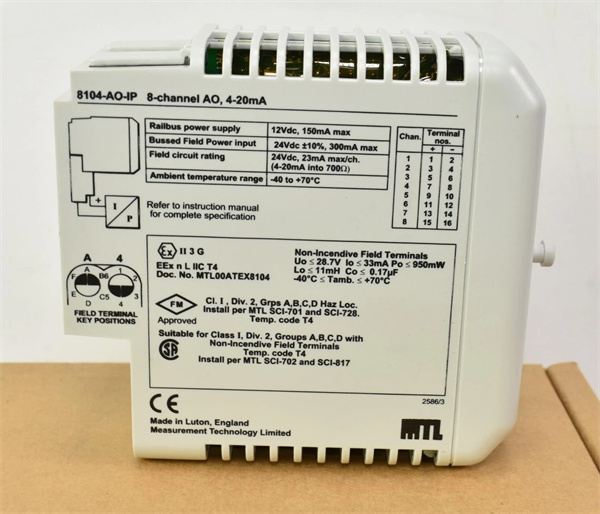

MTL 8104-AO-IP
Product Introduction
The MTL 8104-AO-IP is an 8-channel analog output module designed for industrial control systems. It is part of the MTL 8000 series and is engineered to provide precise and reliable signal output in demanding industrial environments. This module supports single-ended 4-20 mA output channels and is suitable for applications such as I/P converters and remote indicators.
Core Advantages and Technical Highlights
High Precision and Reliability: The 8104-AO-IP features high-precision signal output with an accuracy of ±0.25% of span and a 12-bit resolution, ensuring reliable and precise control. It also includes open circuit detection on each channel for enhanced safety.
Fast Response Time: With a response time of 25 ms, the module can quickly transmit signal changes to the control system, making it suitable for real-time monitoring and control applications.
Flexible Configuration: The module supports various configurable parameters, including initialization state, drive on fail-safe, and channel status, allowing users to tailor the module to specific application requirements.
Hazardous Area Compatibility: The 8104-AO-IP is designed for use in hazardous areas, featuring non-incendive field circuits to ensure safe operation in environments with explosive gases or dust.
Communication and Integration: The module communicates via Railbus and supports PROFIBUS-DP protocol, ensuring seamless integration with PLCs and DCS systems.

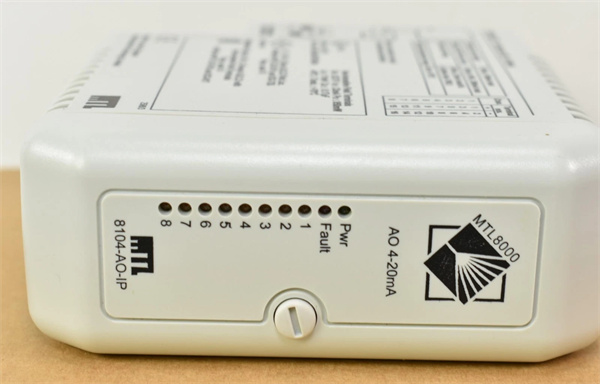

MTL 8104-AO-IP
Typical Application Scenarios
The MTL 8104-AO-IP is widely used in various industrial sectors, including power plants, chemical processing, and manufacturing facilities. It is particularly useful for:
-
Process Control: Controlling parameters such as temperature, pressure, and flow rates in chemical plants and power stations.
-
Valve and Actuator Control: Providing precise control signals to actuators and valves in automation systems.
-
Hazardous Area Applications: Ensuring safe and efficient operation in environments with explosive gases or dust.
Related Model Recommendations
-
8101-HI-TX: An 8-channel analog input module with HART capability, suitable for applications requiring advanced device communication.
-
8103-AI-TX: An 8-channel analog input module, suitable for precise measurement.
-
8119-VI-05: An 8-channel voltage input module, suitable for applications requiring voltage signal acquisition.
-
8109-DI-DC: An 8-channel digital input module, providing versatile control options for industrial automation.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the MTL 8104-AO-IP, ensure the environment meets the specified temperature and humidity requirements. Prepare the necessary tools, such as a screwdriver and multimeter, and ensure the installation area is free from dust and moisture. Follow the provided installation manual carefully to ensure proper grounding and connection of the module. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the 8104-AO-IP for signs of damage or wear, such as loose connections or corrosion. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, such as signal errors or communication failures, consult the troubleshooting guide or contact a professional for assistance. Replace any damaged components promptly to maintain optimal performance and reliability.
Service and Guarantee Commitment
The MTL 8104-AO-IP is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. MTL Instruments offers technical support and service to assist with installation, troubleshooting, and maintenance. Our commitment to quality and customer service ensures that the 8104-AO-IP will deliver reliable performance for years to come.
