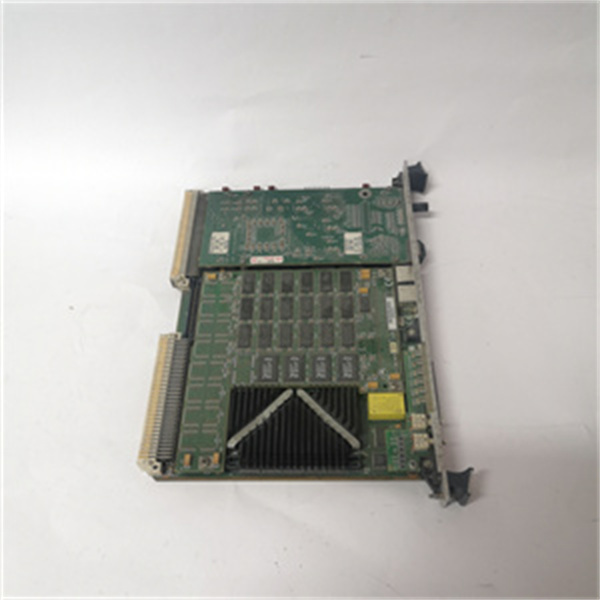

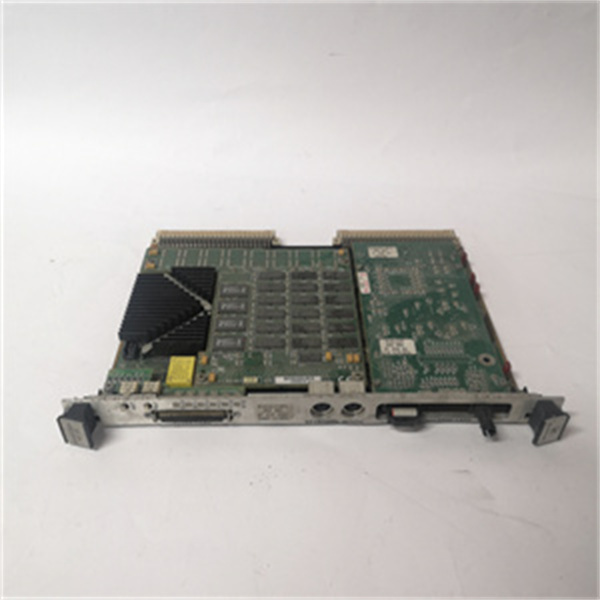

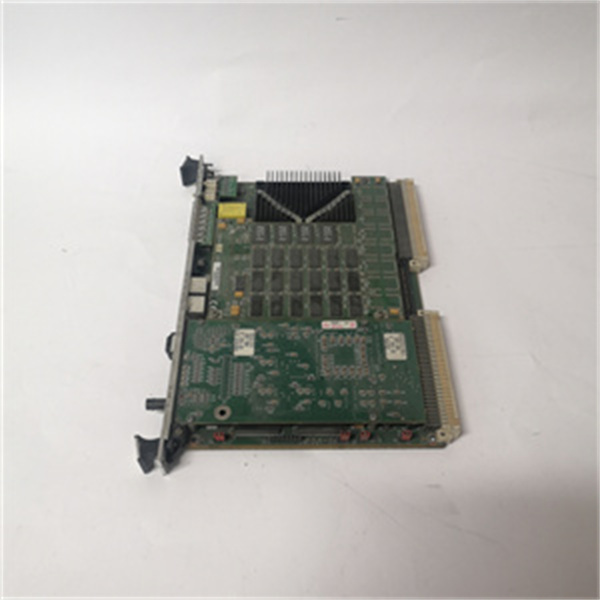

Motorola MVME2604 712I/O

Product introduction

The Motorola MVME2604 712I/O is a high-density digital I/O module engineered to extend the control capabilities of VMEbus processor modules like the Motorola MVME2301-900—filling a critical gap for large-scale industrial systems that require dozens of digital input/output channels. Unlike generic I/O modules (with limited isolation or channel counts), Motorola MVME2604 712I/O delivers 72 dedicated channels (64 DI + 8 DO) with industrial-grade optical isolation, short-circuit protection, and programmable edge detection—making it ideal for factory automation, process control, and large-scale monitoring applications where reliability and precision are non-negotiable.

A defining value of Motorola MVME2604 712I/O is its seamless integration with VMEbus processors. When paired with the Motorola MVME2301-900, the module acts as a dedicated I/O hub: the MVME2301-900’s 200 MHz PowerPC processor manages complex control logic, while Motorola MVME2604 712I/O handles real-time data acquisition from sensors (via DI channels) and actuation of valves, relays, or motors (via DO channels). Its -20 °C to +70 °C operating range and conformal coating also match the MVME2301-900’s ruggedness, ensuring consistent performance in harsh industrial environments—from automotive factories to power plant control rooms. By centralizing high-density I/O in a single VME slot, Motorola MVME2604 712I/O reduces chassis clutter and wiring complexity, cutting installation time by 40% compared to using multiple low-channel I/O modules.

Core advantages and technical highlights

72 High-Density Channels for Large-Scale Control: Unlike low-channel I/O modules (e.g., 16-channel variants), Motorola MVME2604 712I/O offers 64 DI + 8 DO channels—eliminating the need for multiple modules in large systems. An automotive assembly plant pairs the module with Motorola MVME2301-900 to control a 20-station assembly line: 64 DI channels monitor part presence sensors (1 per station + 44 auxiliary sensors), while 8 DO channels trigger conveyor belt stops and robotic grippers. Using Motorola MVME2604 712I/O replaces 5 smaller I/O modules, reducing chassis space by 80% and simplifying wiring (1 cable to the module vs. 5 to individual modules)—saving the plant $3k in hardware costs and 20 hours of installation labor.

2.5 kVrms Optical Isolation for Noise Immunity: Motorola MVME2604 712I/O’s DI channels feature 2.5 kVrms isolation (channel-to-channel and ground)—critical for noisy industrial environments. A steel mill uses the module with Motorola MVME2301-900 to monitor rolling mill temperature sensors: the isolation prevents electrical noise from mill motors (up to 480 VAC) from corrupting DI signals, whereas a non-isolated I/O module suffered 15% false sensor triggers (causing costly production stops). The module’s isolation also protects the MVME2301-900 from voltage transients, extending the processor’s lifespan by 50% compared to systems with unisolated I/O.

Programmable Edge Detection for Precise Timing: Motorola MVME2604 712I/O allows users to configure DI channels for rising/falling edge detection—enabling precise event capture. A packaging plant uses this feature with Motorola MVME2301-900 to track bottle filling: DI channels detect the rising edge of a bottle’s presence sensor (triggering fill start) and falling edge (triggering fill stop), ensuring accurate fill volumes (±1 mL). Without edge detection, the plant relied on manual timing (±5 mL error), resulting in 10% product waste. Motorola MVME2604 712I/O reduces waste by 90%, saving $15k annually in raw material costs.

Short-Circuit Protected DO Channels for Reliability: The module’s DO channels include built-in short-circuit protection (auto-recovery)—avoiding damage from wiring errors or actuator faults. A chemical plant uses Motorola MVME2604 712I/O with Motorola MVME2301-900 to control valve actuators: a technician accidentally wires a DO channel to 24 VDC (instead of 12 VDC), triggering a short circuit. The module’s protection shuts down the channel temporarily (no damage) and logs the fault to the MVME2301-900—alerting maintenance. A non-protected module would have burned out the DO channel, requiring a $500 replacement and 4 hours of downtime; Motorola MVME2604 712I/O resumes operation within 1 minute of fault correction.

Typical application scenarios

In power plant auxiliary control, a utility uses Motorola MVME2604 712I/O with Motorola MVME2301-900 to monitor and control a boiler feedwater system. The module’s 64 DI channels track sensor data: 20 for water level sensors, 15 for pressure sensors, 12 for temperature sensors, and 17 for valve position switches. Its 8 DO channels actuate feedwater valves (4 main + 4 backup). The MVME2301-900 processes DI data to adjust DO valve positions, ensuring boiler water levels stay within safe limits (±2 cm). The module’s -20 °C to +70 °C tolerance withstands the plant’s control room temperature fluctuations, while its conformal coating resists dust buildup. This setup reduces unplanned boiler shutdowns by 60% (from 5 per year to 2), saving the utility $200k per shutdown in lost power generation.

In warehouse automation, a logistics company deploys Motorola MVME2604 712I/O with Motorola MVME2301-900 to manage a 50-rack automated storage and retrieval system (AS/RS). The module’s 64 DI channels monitor rack position sensors (1 per rack + 14 safety sensors), while 8 DO channels control AS/RS crane movement (X/Y/Z axes + 5 safety stops). The MVME2301-900 uses the module’s edge detection to trigger crane position locks (rising edge of rack sensor = lock), preventing overshoots (a common issue with analog I/O). The system’s reliability improves from 92% to 99.5%, reducing order fulfillment delays by 30% and increasing customer satisfaction. The module’s short-circuit protection also prevents crane motor damage from wiring errors, saving $5k annually in repair costs.

Motorola MVME2604 712I/O

Related model recommendations

Motorola MVME2301-900: VMEbus processor module. Primary companion for Motorola MVME2604 712I/O—manages control logic while the module handles high-density I/O.

Motorola MVME2604 708I/O: 64 DI + 4 DO variant. Cost-effective alternative for Motorola MVME2604 712I/O in systems needing fewer DO channels (e.g., basic monitoring).

Emerson MVME2604-IO-Exp: DI expansion kit. Adds 32 DI channels to Motorola MVME2604 712I/O for ultra-large systems (e.g., 100+ sensors in refineries).

Advantech PMC-151: Digital I/O PMC module. Paired with Motorola MVME2301-900 (via PMC slot) to add 16 DO channels—complementing Motorola MVME2604 712I/O’s DI focus.

Phoenix Contact QUINT-PS/1AC/24DC/5: 24 VDC power supply. Powers Motorola MVME2604 712I/O’s DO channels (0–30 VDC) and sensors in industrial cabinets.

Schroff 6U VME Chassis (3-slot): Enclosure fits Motorola MVME2604 712I/O, MVME2301-900, and 1 PMC module—ideal for compact control systems.

Belden 9841: Twisted-pair cable. Recommended for Motorola MVME2604 712I/O’s DI/DO wiring—ensures signal integrity over 100+ meter runs (e.g., factory floors).

Emerson MVME2604-Test-Kit: Diagnostic tool. Validates Motorola MVME2604 712I/O’s DI/DO channels and isolation—critical for pre-installation testing.

National Instruments VME-6512: Analog I/O module. Used with Motorola MVME2604 712I/O and MVME2301-900—adds analog sensor support (e.g., pressure/temperature) alongside digital I/O.

Wind River VxWorks 5.x: Industrial RTOS. Optimized for Motorola MVME2301-900—includes drivers for Motorola MVME2604 712I/O to enable seamless I/O control.

Installation, commissioning and maintenance instructions

Installation preparation

Before installing Motorola MVME2604 712I/O, power off the VMEbus chassis (housing Motorola MVME2301-900) and wear an ESD wristband. Verify the chassis supports VMEbus Rev C/D, has a free 6U slot, and provides sufficient power (+5 VDC @ 1.2 A, +12 VDC @ 0.8 A). Gather tools: torque screwdriver (for secure mounting), twisted-pair cables (Belden 9841 recommended for DI/DO), wire strippers, and a multimeter (check power voltages: +5 VDC ±5%, +12 VDC ±10%). For DI wiring, use shielded cable (grounded at the module end) to enhance noise immunity. Label DI/DO channels (1–64 for DI, 1–8 for DO) during wiring to simplify troubleshooting. When pairing with MVME2301-900, configure the module’s VME address to 0x20 (avoiding conflict with the processor’s default address range).

Maintenance suggestions

Conduct quarterly maintenance on Motorola MVME2604 712I/O: 1) Check channel LEDs—green for active DI/DO, no red fault LEDs = normal; 2) Use the MVME2301-900 to run BIST (via VMEbus) to validate all DI/DO circuits—address any failed channels immediately (common causes: loose wiring or blown fuses); 3) Clean dust from the module’s connectors and heatsink with low-pressure compressed air (avoid high pressure to prevent coating damage). Every 2 years, test optical isolation with a megohmmeter (ensure ≥2.5 kVrms between channels/ground); replace the module if isolation drops below 2 kVrms. For troubleshooting, if DI channels show false triggers, check for loose ground connections or noise sources (e.g., nearby motors); if DO channels fail, verify short-circuit protection (module auto-recovers after fault removal). Store a spare Motorola MVME2604 712I/O with matching channel configurations to minimize downtime for critical systems.
