Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | MOOG G123-825-001 |
| Manufacturer | MOOG |
| Product Category | Buffer Amplifier |
| Input Signal Types | ±10V, 4-20mA, 0-±100mA |
| Output Signal Types | 4-20mA, 0-±10V, 0-±100mA (switch-selectable) |
| Input Filter | Single-pole active filter (switch-selectable time constants) |
| Power Supply | 24V DC (nominal), 22-28V range |
| Current Consumption | 65mA (no load), 170mA (100mA output) |
| Protection Class | IP20 |
| Dimensions | 100mm (W) x 225mm (D) x 108mm (H) |
| Weight | 120g (4.2 oz) |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Certifications | CE Marked |

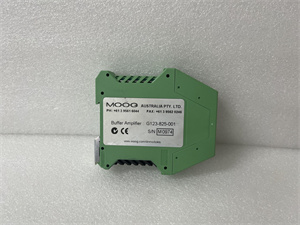

MOOG G123-825-001
Product Introduction
The MOOG G123-825-001 is a high-performance buffer amplifier designed to interface between standard signal sources, such as PLCs or servo amplifiers, and Moog servo/proportional valves. It is widely used in industrial automation and hydraulic control systems for precise motion control. This amplifier supports multiple input signal types, including ±10V and 4-20mA, and can output signals suitable for a wide range of Moog valves. It features a compact DIN rail installation, making it easy to integrate into existing systems.
Core Advantages and Technical Highlights
Versatile Signal Compatibility
The MOOG G123-825-001 accepts three types of input signals (±10V, 4-20mA, and 0-±100mA) and provides multiple output signal options (4-20mA, 0-±10V, and 0-±100mA), making it highly versatile for different valve types. It also includes a switch-selectable single-pole active filter to remove noise from input signals.
Compact and User-Friendly Design
This amplifier features a compact DIN rail housing and requires a 24V DC power supply. The front panel includes test points and valve drive LEDs, facilitating easy commissioning and troubleshooting.
Enhanced Flexibility and Compatibility
The MOOG G123-825-001 allows for the replacement of old mechanical feedback (MFB) valves with modern electronic feedback (EFB) valves without changing the servo amplifier. This ensures backward compatibility and future-proofing of existing systems.
MOOG G123-825-001
Typical Application Scenarios
The MOOG G123-825-001 is used in various industrial sectors, including manufacturing, robotics, aerospace, and defense. In manufacturing plants, it connects PLCs to servo valves for precise control of robotic arms and CNC machinery. In aerospace and defense, it interfaces with flight control systems and simulators, providing reliable and accurate control. Its ability to operate in a wide temperature range and provide real-time monitoring makes it a versatile solution for modern industrial automation.
Related Model Recommendations
-
MOOG G123-825-002: An alternative buffer amplifier with similar features but different output configurations.
-
MOOG G122-824-002: A servo amplifier with high precision and multiple control modes, suitable for applications requiring advanced motion control.
-
MOOG D136-001-008: A servo valve controller with high precision and robust design, ideal for demanding industrial environments.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Before installing the MOOG G123-825-001, ensure the environment meets the specified temperature and humidity requirements. Use the appropriate tools and safety equipment to secure the module in place. Ensure all connections are properly grounded to prevent electrical interference.
Maintenance Suggestions
Regularly inspect the MOOG G123-825-001 for signs of wear or damage, and replace any compromised components promptly. Keep the module clean and free from dust to prevent overheating and ensure efficient operation. Perform routine software updates and firmware upgrades to maintain optimal performance and security.
Service and Guarantee Commitment
The MOOG G123-825-001 is backed by a comprehensive warranty and after-sales service commitment. MOOG guarantees the quality of the product and provides a 12-month warranty period from the date of purchase. The company offers technical support and troubleshooting assistance to ensure that customers receive the best possible experience with their products. MOOG is dedicated to providing timely and efficient service, ensuring that any issues are resolved quickly and effectively.
