Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | MOOG G122-824-002 |
| Manufacturer | MOOG |
| Product Category | P-I Servo Amplifier |
| Input Voltage Range | 200-230V AC |
| Output Current | 4.5A continuous, 7.5A peak |
| Bandwidth | 1000 Hz |
| Control Modes | Position, Velocity, Torque |
| Communication Interface | RS-232 or RS-485 |
| Operating Temperature Range | -10°C to +50°C |
| Protection Class | CE Marked |
| Dimensions | 100mm x 108mm x 45mm |
| Weight | 0.235 kg |

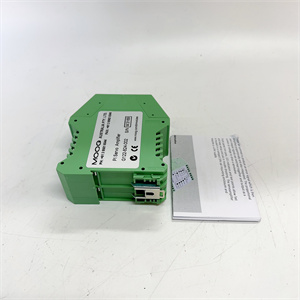

G122-824-002
Product Introduction

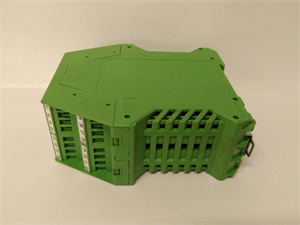

The MOOG G122-824-002 is a high-performance P-I (Proportional-Integral) servo amplifier designed for precise motion control in closed-loop applications. This amplifier is widely used in industrial automation, robotics, and process control systems, providing reliable and accurate control of servo motors. It features a modular design with a compact DIN rail housing, making it easy to integrate into existing systems.
Core Advantages and Technical Highlights
High Precision and Performance
The MOOG G122-824-002 offers high-precision control with a bandwidth of up to 1000 Hz, enabling fast response times and accurate tracking of dynamic commands. It supports multiple control modes, including position, velocity, and torque control, making it versatile for various applications.
Robust and Reliable Design
Constructed with high-grade materials, the MOOG G122-824-002 is built to withstand harsh industrial environments. It features over-current and over-voltage protection, ensuring long-term reliability and reducing maintenance costs.
User-Friendly and Flexible

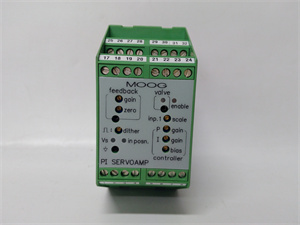

The amplifier includes a user-friendly front panel with LEDs and test points, facilitating quick setup and troubleshooting. It also offers a variety of configuration options, such as proportional, integral, or combined P&I control, allowing users to optimize performance for their specific needs.
Enhanced Thermal Performance
The MOOG G122-824-002 has improved thermal performance compared to its predecessor, ensuring stable operation even under high load conditions.

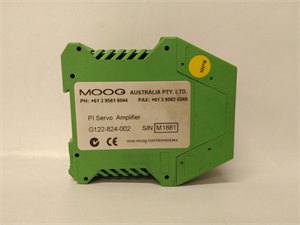

G122-824-002
Typical Application Scenarios
The MOOG G122-824-002 is widely used in various industrial sectors, including manufacturing, robotics, aerospace, and defense. In manufacturing plants, it controls robotic arms and CNC machinery, ensuring high precision and efficiency. In aerospace and defense, it is used in flight control systems and simulators, providing reliable and accurate control. Its ability to operate in extreme conditions and provide real-time monitoring makes it a versatile solution for modern industrial automation.
Related Model Recommendations
-
MOOG G122-824-001: Previous version of the amplifier, with slightly fewer features.
-
MOOG G128-808: A 650 mA power supply module, suitable for low-power control valves.
-
MOOG G128-809: A 2A power supply module, suitable for high-power control valves.
-
MOOG D133-121-A013: A tilt sensor used in conjunction with the amplifier for level control applications.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Before installing the MOOG G122-824-002, ensure the environment meets the specified temperature and humidity requirements. Use the appropriate tools and safety equipment to secure the module in place. Ensure all connections are properly grounded to prevent electrical interference.
Maintenance Suggestions
Regularly inspect the MOOG G122-824-002 for signs of wear or damage, and replace any compromised components promptly. Keep the module clean and free from dust to prevent overheating and ensure efficient operation. Perform routine software updates and firmware upgrades to maintain optimal performance and security.
Service and Guarantee Commitment
The MOOG G122-824-002 is backed by a comprehensive warranty and after-sales service commitment. MOOG guarantees the quality of the product and provides a 12-month warranty period from the date of purchase. The company offers technical support and troubleshooting assistance to ensure that customers receive the best possible experience with their products. MOOG is dedicated to providing timely and efficient service, ensuring that any issues are resolved quickly and effectively.
