Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | MOOG D136-001-001 |
| Manufacturer | MOOG |
| Product Category | Industrial Control Module |
| Operating Voltage | 220 V |
| Output Frequency | 50 kHz |
| Processor | ARM Cortex-M4 |
| Memory | 256kb Flash, 64kb RAM |
| Input Interfaces | 12 Digital, 2 Analog |
| Output Interfaces | 8 Digital, 2 Analog |
| Communication Ports | RS232, RS485 |
| Operating Temperature Range | -20°C to +60°C |
| Dimensions | 100mm x 80mm x 40mm |
| Weight | 200g |
| Protection Class | IP67 |

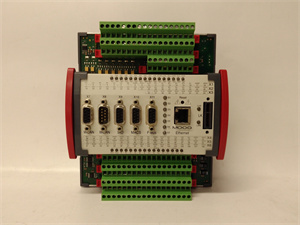

D136-001-001
Product Introduction
The MOOG D136-001-001 is a high-performance industrial control module designed for precise and reliable control in demanding automation applications. This module is part of MOOG’s advanced motion control solutions, offering exceptional precision and stability. It features an ARM Cortex-M4 processor and 256kb Flash, 64kb RAM memory, providing high-speed control and processing capabilities. With a wide range of input and output interfaces, the MOOG D136-001-001 can be seamlessly integrated into various industrial systems, ensuring efficient and accurate control. Its compact size and lightweight design make it suitable for space-constrained environments, while its IP67 protection rating ensures durability in harsh conditions.
Core Advantages and Technical Highlights
High Precision and Performance
The MOOG D136-001-001 uses advanced control algorithms and high-precision sensors to achieve precise position, velocity, and torque control. It supports an output frequency of 50 kHz, making it suitable for high-speed data transmission and dynamic applications.
Robust and Reliable Design
Constructed with high-quality materials, the MOOG D136-001-001 is built to withstand harsh industrial conditions. Its IP67 protection rating ensures resistance to dust and water ingress, providing long-term reliability. The module operates efficiently within a wide temperature range of -20°C to +60°C.
Versatile Communication Capabilities
This module supports multiple communication interfaces, including RS232 and RS485, enabling seamless integration with existing industrial systems. It also features programmable logic control (PLC) functionality, allowing users to program it according to their specific needs.
User-Friendly and Flexible
The MOOG D136-001-001 is designed with user-friendliness in mind. It supports various programming languages and development tools, simplifying the configuration and setup process. Its modular design allows for easy installation and maintenance, and it supports extension modules for enhanced functionality.
Compliance and Safety
The MOOG D136-001-001 is certified for use in demanding industrial environments, ensuring compliance with global safety and quality standards.

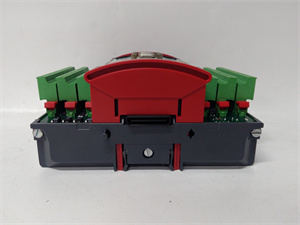

D136-001-001
Typical Application Scenarios
The MOOG D136-001-001 is widely used in various industrial sectors, including manufacturing, aerospace, defense, and energy. In manufacturing plants, it controls robotic arms and CNC machinery, ensuring high precision and efficiency. In aerospace and defense, it is used in flight control systems and simulators, providing reliable and accurate control. For energy applications, the module monitors and controls critical processes in power plants, enhancing system stability. Its ability to operate in extreme conditions and provide real-time monitoring makes it a versatile solution for modern industrial automation.
Related Model Recommendations
-
MOOG D136-001-002: A complementary module with enhanced communication capabilities, designed to work seamlessly with the MOOG D136-001-001.
-
MOOG D136-001-003: An upgraded version with additional I/O options and higher processing power, ideal for future-proofing your automation system.
-
MOOG D136-001-004: A diagnostic module that provides real-time monitoring and troubleshooting capabilities, ensuring optimal performance of the MOOG D136-001-001.
-
MOOG D136-001-005: A power supply module compatible with the MOOG D136-001-001, ensuring stable power delivery for reliable operation.
-
MOOG D136-001-006: A communication adapter module that supports advanced protocols like Ethernet/IP, enhancing the networking capabilities of the MOOG D136-001-001.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Before installing the MOOG D136-001-001, ensure the environment meets the specified temperature and humidity requirements. Use the appropriate tools and safety equipment to secure the module in place. Ensure all connections are properly grounded to prevent electrical interference. Follow the manufacturer’s guidelines for wiring and mounting to ensure optimal performance and safety.
Maintenance Suggestions
Regularly inspect the MOOG D136-001-001 for signs of wear or damage, and replace any compromised components promptly. Keep the module clean and free from dust to prevent overheating and ensure efficient operation. Perform routine software updates and firmware upgrades to maintain optimal performance and security. Store spare parts in a dry and cool place to ensure their availability when needed.
Service and Guarantee Commitment
The MOOG D136-001-001 is backed by a comprehensive warranty and after-sales service commitment. Our company guarantees the quality of the product and provides a 12-month warranty period from the date of purchase. We offer technical support and troubleshooting assistance to ensure that our customers receive the best possible experience with our products. Our team is dedicated to providing timely and efficient service, ensuring that any issues are resolved quickly and effectively.
