Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | Mitsubishi A1SJ51T64 |
| Manufacturer | Mitsubishi Electric |
| Product category | Digital I/O Module |
| Operating Voltage | 24 V DC |
| Input Channels | 64 digital inputs |
| Output Channels | 64 digital outputs |
| Communication Protocol | CC-Link |
| Operating Temperature Range | 0°C to 55°C |
| Humidity Range | 10% to 90% RH (non-condensing) |
| Protection Class | IP20 |
| Dimensions | 130 mm × 34.5 mm × 106.6 mm |
| Weight | 0.30 kg |
| Certifications | CE, UL, RoHS compliant |

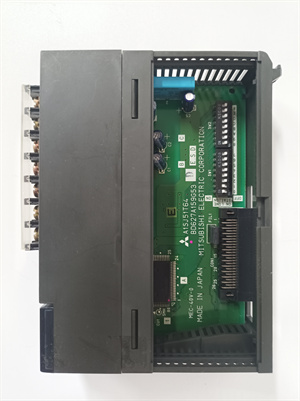

Mitsubishi A1SJ51T64
Product Introduction
The Mitsubishi A1SJ51T64 is a high-performance digital input/output module designed for the A-Series PLCs. It provides robust and reliable interfacing between the control system and field devices, making it ideal for various industrial automation applications.
Core Advantages and Technical Highlights
High-Performance I/O Capabilities
The A1SJ51T64 features 64 digital input and 64 digital output channels, providing versatile control and monitoring capabilities. It supports a wide range of industrial applications, including manufacturing, process control, and robotics.
Robust Design
Constructed with high-quality materials, the module is designed to withstand harsh industrial environments. It operates reliably within a temperature range of 0°C to 55°C and features a protection rating of IP20.
Advanced Communication Capabilities
The module supports the CC-Link communication protocol, ensuring seamless integration with Mitsubishi’s A-Series PLCs and other industrial control systems.
Compact and User-Friendly Design
The A1SJ51T64 features a compact form factor and lightweight design, making it easy to integrate into existing setups without requiring significant space or resources.

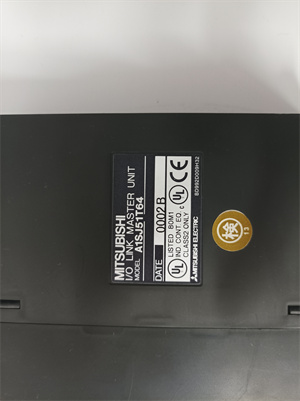

Mitsubishi A1SJ51T64
Typical Application Scenarios
The Mitsubishi A1SJ51T64 is widely used in industries requiring high reliability and precision, such as:
-
Manufacturing: Controlling production lines and robotic systems.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Chemical Processing: Monitoring and controlling hazardous processes in chemical plants.
-
Water Treatment: Managing water treatment processes and monitoring environmental parameters.
Related Model Recommendations
-
A1SJ51T32: A variant with 32 digital input and 32 digital output channels.
-
A1SJ51T16: A variant with 16 digital input and 16 digital output channels.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the A1SJ51T64, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (0°C to 55°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the A1SJ51T64. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The Mitsubishi A1SJ51T64 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Mitsubishi Electric is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
