Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | METSO D201134 |
| Manufacturer | METSO |
| Product Category | Analog Input Module |
| Input Signal Types | 4-20mA, 0-10V |
| Number of Channels | 8 |
| Communication Interface | Modbus RTU, Ethernet, RS-485 |
| Operating Voltage | 24V DC |
| Operating Temperature Range | -10°C to +60°C |
| Protection Class | IP20 |
| Dimensions | 96mm x 167mm x 38mm |
| Weight | 1.03 kg |
| Certifications | CE, UL, RoHS |

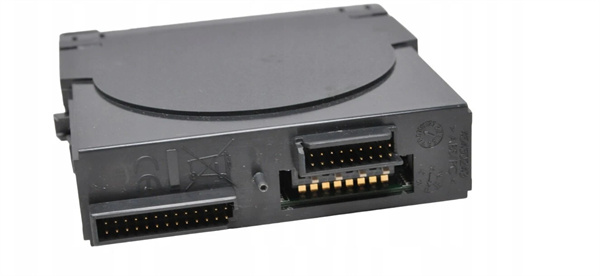

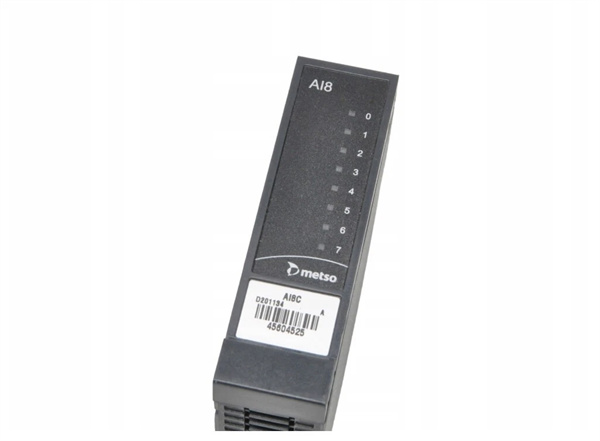

METSO D201134
Product Introduction
The METSO D201134 is a high-precision 8-channel analog input module designed for industrial automation and process control applications. It excels in converting various analog signals, such as voltage and current, into digital signals for further processing and analysis by control systems. This module is widely used in industries such as manufacturing, chemical processing, power generation, and environmental monitoring to ensure accurate and reliable data acquisition.
Core Advantages and Technical Highlights
High Precision and Reliability
The METSO D201134 features high-resolution A/D conversion, ensuring accurate signal conversion and minimal error. It includes advanced filtering and linearization functions to enhance signal accuracy and reliability.
Versatile Communication Capabilities
This module supports multiple communication protocols, including Modbus RTU, Ethernet, and RS-485, allowing seamless integration with PLCs, DCS systems, and other control devices.
Robust Design
The METSO D201134 is designed for industrial environments, with an operating temperature range of -10°C to +60°C and an IP20 protection rating. It features built-in surge protection and electromagnetic compatibility (EMC) to ensure stable operation in harsh conditions.
User-Friendly and Flexible
The module is programmable, allowing users to configure and program it according to specific application requirements. It also supports data recording and storage functions, which are useful for troubleshooting and performance optimization.

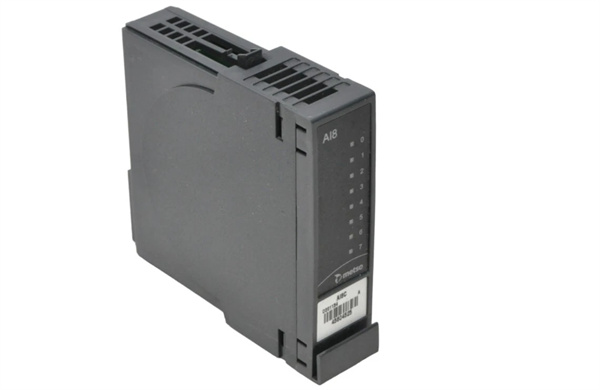

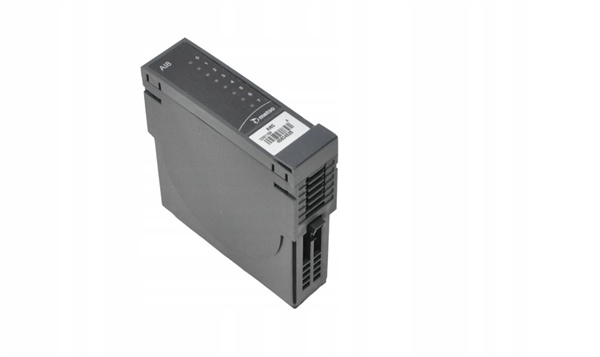

METSO D201134
Typical Application Scenarios
The METSO D201134 is widely used in various industrial sectors:
-
Manufacturing: Monitoring and controlling production line parameters such as temperature, pressure, flow rate, and liquid level.
-
Process Control: Real-time monitoring and adjustment of process parameters in chemical, petroleum, and natural gas industries.
-
Energy Management: Monitoring wind speed, power generation, and grid voltage in renewable energy projects.
-
Environmental Monitoring: Collecting data on air quality, water quality, and soil moisture.
Related Model Recommendations
-
METSO D201138: A complementary module with additional features for more complex applications.
-
METSO D201376: A higher-end model with enhanced precision and more channels.
-
METSO D201380: A variant with extended temperature range and higher protection class for harsh environments.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the input signal lines and communication cables according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Use dedicated debugging software to check and update module parameters as needed. Keep the module clean and free from dust to prevent overheating and ensure efficient operation.
Service and Guarantee Commitment
The METSO D201134 is backed by a comprehensive warranty and after-sales service commitment. METSO guarantees the quality of the product and provides a 12-month warranty period from the date of purchase. The company offers technical support and troubleshooting assistance to ensure that customers receive the best possible experience with their products.
