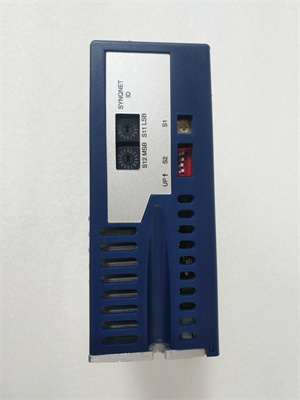

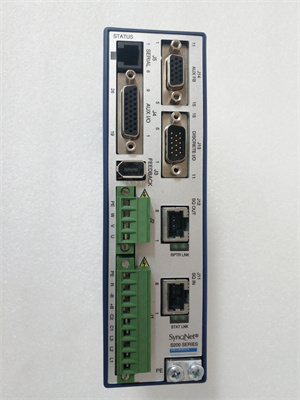

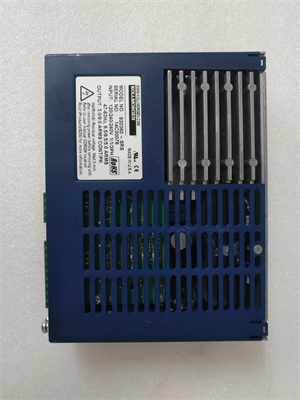

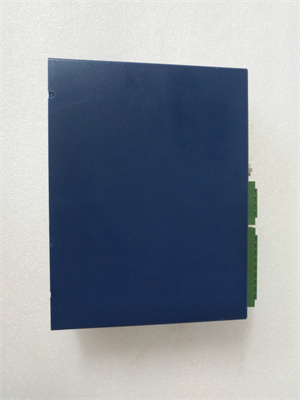

Name: KOLLMORGEN S20360-SRS | RUNSHENG
Brand: KOLLMORGEN

Description

Detailed parameter table

Parameter name	Parameter value
Product model	S20360-SRS
Manufacturer	KOLLMORGEN
Product category	Servo Drive
Supply voltage	120/240 VAC, 20 – 90 VDC
Rated current	1.5 Amps RMS continuous to 48 Amps RMS peak
Feedback resolution	24 – bit high – resolution
Current loop bandwidth	3 – 5 kHz
Communication protocols	EtherCAT, CANopen, Modbus, SynqNet (optional)
Control modes	Torque, speed, position
Ambient operating temperature	0℃ – 40℃
Protection degree	IP20
Installation method	DIN – rail or panel – mount

Product introduction

The KOLLMORGEN S20360-SRS servo drive, part of the renowned S200 series, is a high – performance device designed to precisely control servo motors. It plays a pivotal role in the automation system, enabling smooth, rapid, and accurate motion control. This drive combines advanced features such as high – resolution feedback and a high – performance current loop bandwidth.

With a 24 – bit high – resolution feedback system, the S20360-SRS ensures exceptional position control accuracy. The 3 – 5 kHz high – performance current loop bandwidth guarantees excellent performance during high – speed movement and precise positioning of the servo motor. The S200 series, to which the S20360-SRS belongs, is known for its high – speed operation and reliability, making it a preferred choice in industrial automation.

The KOLLMORGEN S20360-SRS also features an intelligent feedback device with an electronic motor 铭牌. This innovation allows for plug – and – play commissioning in most applications, eliminating the need for complex drive parameter settings and servo loop adjustments.

Core advantages and technical highlights

High – precision motion control

The KOLLMORGEN S20360-SRS offers unrivaled precision in motion control. Thanks to its 24 – bit high – resolution feedback, it can accurately detect and control the position of the servo motor. Whether in high – speed operations or when making minute adjustments for precise positioning, the 3 – 5 kHz current loop bandwidth ensures that the motor responds quickly and smoothly to control signals, reducing errors and enhancing overall system accuracy.

Simplified commissioning

The intelligent feedback device with an electronic motor 铭牌 is a game – changer. In traditional servo drive setups, commissioning often involves time – consuming parameter tuning and loop adjustments. However, with the S20360-SRS, in most applications, users can simply plug it in, and the drive automatically configures itself based on the information from the electronic motor 铭牌. This not only saves a significant amount of engineering time but also reduces the likelihood of errors during setup.

Wide power compatibility

This servo drive is designed to operate with a wide range of power inputs, including 120/240 VAC and 20 – 90 VDC. This versatility makes it suitable for use in various industrial settings, regardless of the local power supply infrastructure. It allows for a single drive series to be deployed across an entire machine, simplifying inventory management and maintenance.

KOLLMORGEN S20360-SRS

Main Features and Advantages

Precision Motion Control

The RMP201-8 delivers sub-millimeter accuracy with its advanced servo control algorithms, ensuring precise positioning for critical manufacturing processes. Its high-resolution encoders provide ±0.02 mm repeatability, making it suitable for applications requiring extreme precision.

Multi-Axis Synchronization

With 8 fully synchronized axes, the positioner enables complex coordinated motion for sophisticated robotic applications. The integrated motion controller supports electronic gearing and cam profiling for seamless multi-axis operations.

Robust Industrial Design

Featuring IP54 protection, the RMP201-8 withstands harsh industrial environments including dust, moisture, and vibration. Its heavy-duty construction supports 200 kg payload capacity while maintaining positioning accuracy.

Advanced Connectivity

The positioner offers multiple industrial communication options including EtherCAT, CANopen, PROFINET, and Ethernet/IP, ensuring easy integration with various automation systems and PLCs.

KOLLMORGEN S20360-SRS

Application Field

The KOLLMORGEN RMP201-8 excels in industrial automation applications requiring precise multi-axis control:

Robotic Welding Systems: Precise positioning for arc and spot welding applications
Automated Assembly Lines: Coordinated motion for complex assembly processes
Material Handling: Precise positioning for pick-and-place operations
Machine Tending: Automated loading/unloading of CNC machines
Inspection Systems: Precise positioning for quality control applications

Installation and Maintenance

Installation requirements: The RMP201-8 requires a stable, level mounting surface capable of supporting its operational weight and dynamic loads. Ensure proper electrical connections with appropriate power and communication cables. Allow sufficient clearance for maintenance access and heat dissipation.

Maintenance recommendations: Perform quarterly inspections of mechanical components including bearings and gear mechanisms. Regularly check electrical connections and cable integrity. Monitor system performance through the diagnostic interface and maintain proper lubrication of moving parts. Keep ventilation paths clear of obstructions to ensure optimal thermal management.

Product Guarantee

Kollmorgen provides a 24-month warranty for the RMP201-8, covering manufacturing defects under normal operating conditions. The positioner undergoes rigorous testing to ensure compliance with industrial standards. Comprehensive technical support is available worldwide, including application engineering assistance and troubleshooting services. Firmware updates and maintenance support are provided throughout the product lifecycle to ensure long-term reliability and performance.
