Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | CB06560 PRD-B040SAIB-62 |
| Manufacturer | KOLLMORGEN |
| Product Category | Servo Drive |
| Input Voltage | 24V to 80V DC |
| Output Current | 400A Max |
| Rated Power | 400W |
| Peak Power | 800W |
| Rated Current | 6.7A |
| Peak Current | 13.4A |
| Control Mode | Position, Speed, Torque |
| Resolution | 20 bits |
| Communication Interface | CAN bus |
| Response Time | < 1 ms |
| Operating Temperature Range | -10°C to +50°C |
| Dimensions (L x W x H) | 249 mm x 163 mm x 83.3 mm |
| Weight | 2KG |
| Certifications | CE, UL |

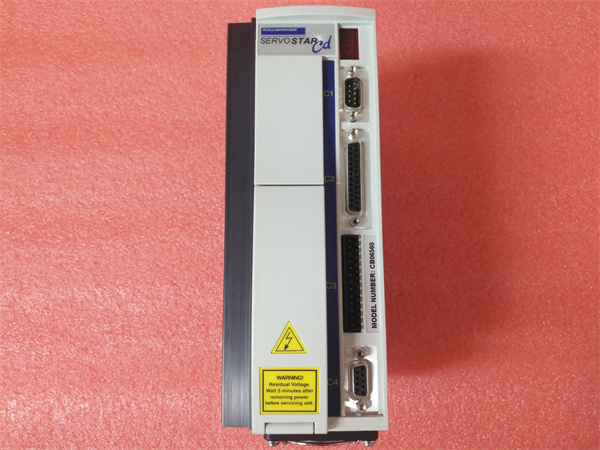

KOLLMORGEN CB06560 PRD-B040SAIB-62
Product Introduction
The KOLLMORGEN CB06560 PRD-B040SAIB-62 is a high-performance servo drive designed for precise motion control applications in industrial automation. It combines advanced servo technology with a compact, rugged design to provide precise position, speed, and torque control. This drive is ideal for applications requiring high precision and reliability, such as CNC machine tools, industrial robots, and packaging machinery.
Core Advantages and Technical Highlights
High Precision and Reliability: The CB06560 offers high-precision position, speed, and torque control, ensuring accurate and repeatable motion profiles. It features fast dynamic response and stable static performance, making it suitable for high-precision applications.
Robust Design: The drive is designed to operate reliably within a wide temperature range of -10°C to +50°C and features an IP20 protection rating, ensuring resistance to dust and water ingress.
Energy Efficiency: The CB06560 is designed to minimize power consumption while delivering high performance, reducing operational costs.
User-Friendly Interface: The drive features an intuitive graphical interface, simplifying monitoring and control. Users can easily configure settings and visualize system performance.
Wide Compatibility: The CB06560 supports multiple communication protocols, including CAN bus, enabling seamless integration with various control systems.

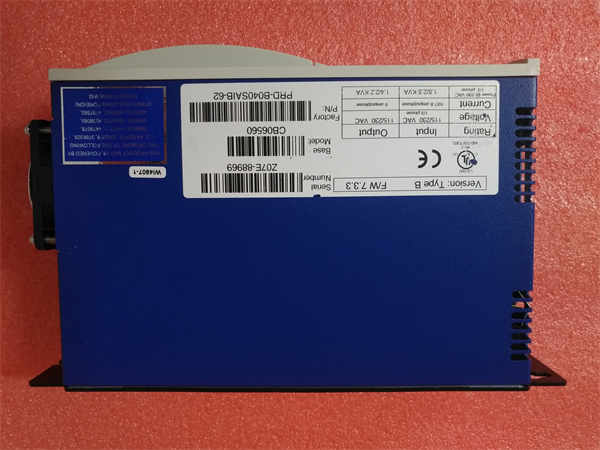

KOLLMORGEN CB06560 PRD-B040SAIB-62
Typical Application Scenarios
The KOLLMORGEN CB06560 PRD-B040SAIB-62 is widely used in various industrial sectors, including:
Manufacturing Automation: For precise control and monitoring of robotic arms and assembly line machinery.
Machine Tools: For high-precision positioning and speed control in CNC machines.
Packaging Industry: For accurate packaging and packaging processes.
Printing Industry: For controlling the movement of printing drums and paper to improve printing quality.
Medical Equipment: For controlling medical robots and scanning equipment to improve the level of automation and accuracy of medical equipment.
Related Model Recommendations
CB06551 PRD-B040SSIB-63: A similar model with different communication protocols and features.
CB06561 PRD-B040SSLZ-62: A related model with enhanced features and improved performance.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation location meets the specified temperature and humidity requirements. Mount the drive securely on a grounded conductive mounting plate in the cabinet. Use shielded cables for connections to minimize electrical interference.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages.
Service and Guarantee Commitment
The KOLLMORGEN CB06560 PRD-B040SAIB-62 is backed by comprehensive support and quality assurance. The drive comes with a 12-month warranty that ensures protection against manufacturing defects. KOLLMORGEN’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency.
