Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | KOLLMORGEN S72402-NANANA |
| Manufacturer | KOLLMORGEN |
| Product Category | Digital AC Servo Drive |
| Operating Voltage | 208Vac-480Vac (220Vac / 230Vac / 240Vac / 380Vac / 400Vac / 415Vac / 440Vac) |
| Rated Current | 24A |
| Output Frequency | Up to 70kHz |
| Control Modes | Position, Velocity, Torque |
| Communication Protocols | EtherCAT, CANopen, Pulse Direction Interface |
| Operating Temperature Range | 0°C to +40°C |
| Humidity Tolerance | Up to 85% |
| Noise Emission | 65 dB(A) |
| Dimensions | 10cm × 15cm × 5cm |
| Weight | 1.24 kg |
| Certifications | UL, CE, TUV |
KOLLMORGEN S72402-NANANA
Product Introduction
The KOLLMORGEN S72402-NANANA is a high-performance digital AC servo drive designed for precise motion control in industrial automation applications. It is part of the S700 series, known for its advanced control algorithms and robust design。
Core Advantages and Technical Highlights
High Precision and Dynamic Performance
The S72402-NANANA provides high-precision control with a response time of less than 0.6ms and position control accuracy of less than 1 arc-minute. It supports multiple control modes, including position, velocity, and torque control, making it suitable for complex industrial applications。
Robust and Reliable Design
The drive is designed for harsh industrial environments, with a wide operating temperature range and built-in protection features such as overcurrent, overvoltage, and overtemperature protection。
Flexible Communication Options
The S72402-NANANA supports multiple communication protocols, including EtherCAT, CANopen, and Pulse Direction Interface, facilitating seamless integration with existing industrial networks。
User-Friendly and Flexible
The drive is easy to program and configure using RS232 or dedicated software, supporting various motion control algorithms and modes。

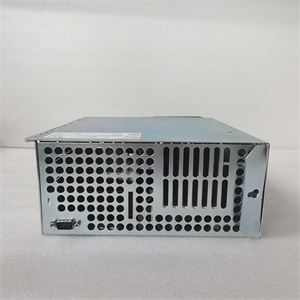

KOLLMORGEN S72402-NANANA
Typical Application Scenarios
The KOLLMORGEN S72402-NANANA is widely used in:
-
Industrial Automation: For precise control of CNC machine spindles and feed axes, ensuring high-precision cutting and rapid positioning。
-
Robotics: For controlling robotic arm joints, enhancing flexibility and precision in assembly and welding processes。
-
Packaging Machinery: For driving sorting and sealing modules, ensuring high-speed continuous production。
-
Printing Equipment: For precise control of paper transport and print head positioning, reducing waste。
Related Model Recommendations
-
KOLLMORGEN S72402-NANANA-NA: A variant with additional features such as an RS232 interface and 2CAN expansion module。
-
KOLLMORGEN S72402-NANANA-030: A model with enhanced thermal management and high torque output, suitable for applications requiring rapid acceleration and deceleration。
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the drive in place. Connect the input and output cables according to the manufacturer’s guidelines。
Maintenance Suggestions
Regularly inspect the drive for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation。
