Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DIGIFAS7201 |
| Manufacturer | Kollmorgen |
| Product Category | Digital Servo Amplifier |
| Rated Output | 1.5 A |
| Rated Intermediate Circuit Voltage | 560 V |
| Rated Power Supply Voltage | 3 x 80-400 V AC (50-60 Hz) |
| Residual Voltage | 10% and 5 V |
| Dimensions (L) | 234 mm |
| Weight | 1.2 kg to 2 kg (depending on configuration) |
| Series | Digifas 7000 |
| Communication Protocols | EtherCAT, CANopen, RS485, SSI |
| Control Modes | Position, Speed, Torque |
| Efficiency | Up to 95% |
| Operating Temperature Range | 0°C to 40°C |
| Protection Level | IP20 |

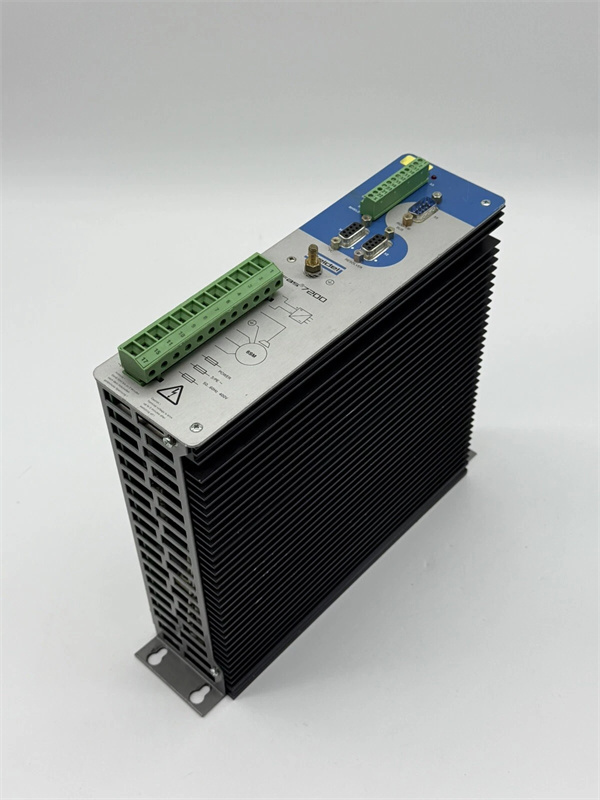

DIGIFAS7201
Product Introduction
The Kollmorgen DIGIFAS7201 is a high-performance digital servo amplifier designed for industrial automation and motion control applications. It is part of the Digifas 7000 series, known for its precision and reliability in controlling servo motors.
Core Advantages and Technical Highlights
High Precision and Reliability: The DIGIFAS7201 offers precise control over servo motors, ensuring accurate positioning, speed control, and torque management.
Wide Voltage Range: It operates with a wide input voltage range of 80-400 V AC, making it suitable for various industrial power supplies.
Multiple Control Modes: The amplifier supports position, speed, and torque control modes, providing flexibility for different application requirements.
Efficient Power Conversion: With an efficiency of up to 95%, the DIGIFAS7201 minimizes energy loss and reduces operational costs.
Robust Design: The module features IP20 protection against solid objects and is designed to operate within a temperature range of 0°C to 40°C.
Advanced Communication Protocols: It supports EtherCAT, CANopen, RS485, and SSI interfaces, ensuring seamless integration with modern industrial automation systems.

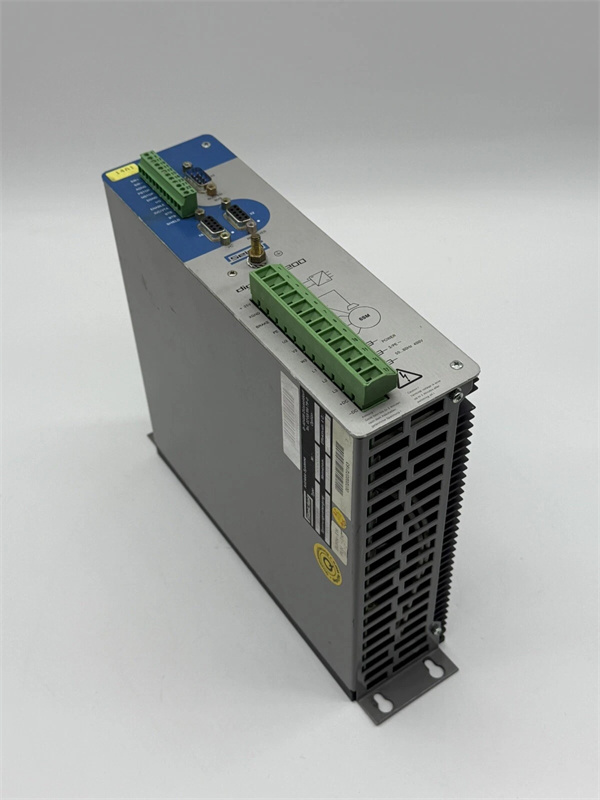

DIGIFAS7201
Typical Application Scenarios
The Kollmorgen DIGIFAS7201 is widely used in various industrial sectors, including:
-
Precision Manufacturing: Driving CNC machines, robotic arms, and other precision equipment.
-
Energy Management: Controlling motors in power generation and distribution systems.
-
Packaging and Material Handling: Enhancing the efficiency of packaging lines and automated guided vehicles.
-
CNC Machines: Providing precise motion control for milling, turning, and other CNC operations.
Related Model Recommendations
-
DIGIFAS 7202/7204/7206: Higher power variants within the Digifas 7000 series, suitable for applications requiring more torque.
-
Kollmorgen 6SM Series Motors: Designed to work seamlessly with DIGIFAS7201 for high dynamic response.
-
Kollmorgen S200 Series Servo Drives: Suitable for multi-axis control systems requiring precise synchronization.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements. Prepare necessary tools and follow the installation manual carefully to ensure proper grounding and connection.
Maintenance Suggestions: Regularly inspect the amplifier for signs of damage or wear. Clean the module periodically to remove dust and debris. If any issues are detected, consult the troubleshooting guide or contact a professional for assistance.
Service and Guarantee Commitment
The Kollmorgen DIGIFAS7201 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Kollmorgen offers technical support and service to assist with installation, troubleshooting, and maintenance.
