Hard-Numbers: Technical Specifications
- Protocol Support: Profibus DP, DeviceNet, CANopen, EtherCAT (configuration dependent)
- Port Count: 1 fieldbus port, 1 RS-232/485 programming port
- Data Rate: Up to 12 Mbps (Profibus), 1 Mbps (CANopen), 100 Mbps (EtherCAT)
- Operating Temperature: 0°C to +50°C (32°F to +122°F)
- Isolation Rating: 500V optical isolation (fieldbus to drive logic)
- Power Draw: 2.5W max from S700 backplane
- Address Range: Node address 0-127 (bus dependent)
- LED Indicators: PWR, RUN, ERR, BUS (status diagnostics)

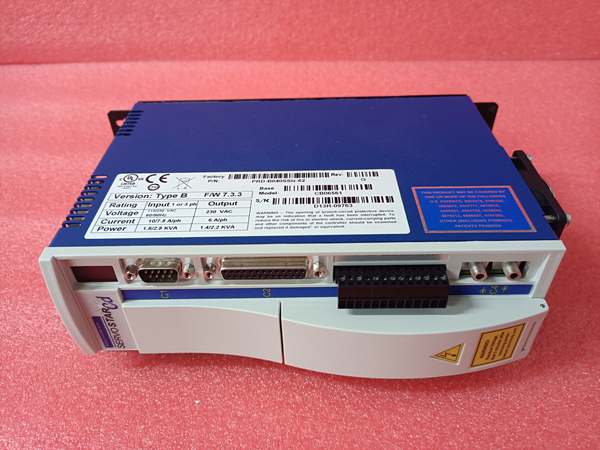

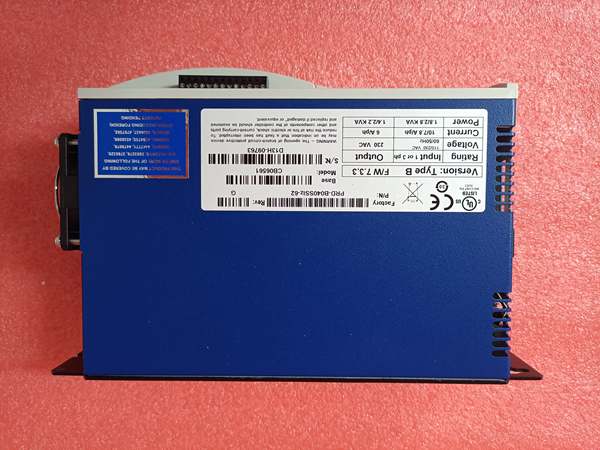

Kollmorgen CB06561
The Real-World Problem It Solves
Every control engineer knows the headache: a perfectly tuned servo drive that can’t talk to the PLC because the communication layer fails. The CB06561 eliminates the integration bottleneck by providing direct fieldbus connectivity to the S700 series, removing the need for external gateways or analog signal hacking.
Where you’ll typically find it:
- High-speed packaging lines with multi-axis synchronization
- Robot welding cells where precise motion coordination is critical
- Material handling systems with complex conveyor sequencing
The bottom line: It gets your axis talking to the controller reliably, so you can focus on tuning loops instead of chasing protocol errors.
Hardware Architecture & Under-the-Hood Logic
This module sits directly on the S700 backplane, pulling power and exchanging data with the main drive processor through a dedicated parallel interface. It’s not just a dumb pass-through card—the CB06561 has its own microcontroller that handles protocol parsing, leaving the main motion processor free to execute servo loops without interruption.
Here’s how the signal flows:
- Fieldbus signals enter through the DB9/ RJ45 front connector
- The onboard microcontroller processes the incoming protocol frames
- Data is translated into S700 internal register format
- Process data (position, status, control words) exchanges over the backplane at the drive update rate
- The module pushes diagnostics and error codes to the front-panel LEDs for quick troubleshooting

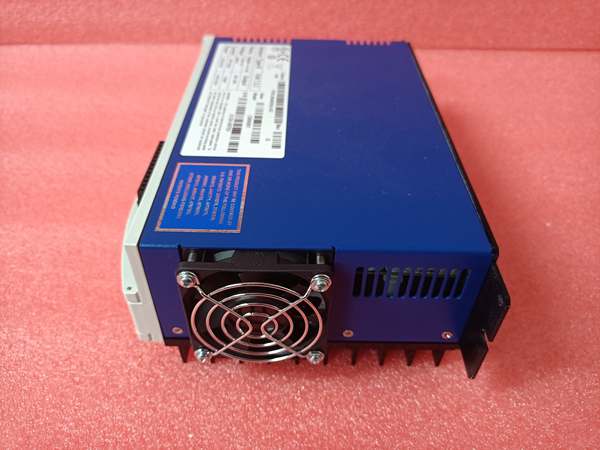

Kollmorgen CB06561
Field Service Pitfalls: What Rookies Get Wrong
Wrong Termination ConfigurationMost fieldbus failures trace back to missing or duplicate termination resistors. Techs forget that the last device on the segment needs termination, and every daisy-chained drop should have it removed.
- Field Rule: Use a bus analyzer to measure the differential voltage drop across the segment—120 ohm impedance at the ends is your target.
Improper Shield Drain WiringI’ve seen too many ground loops caused by shield wires tied to multiple points along the cable run. The CB06561 is isolated, but that isolation breaks if you ground the shield at both ends.
- Quick Fix: Ground the shield at the PLC/controller end only. Use a metal gland or proper shield termination clamp—never twist the braid around a screw terminal.
Ignoring Bus Timing ParametersNew engineers copy-paste configuration files without checking bus cycle time against the drive’s update rate. Mismatched timing causes stuttering or intermittent faults that look like hardware failure.
- Field Rule: Set the S700’s update rate (parameter 0x2800) to match or be faster than the bus cycle time. If your bus scans every 2ms, the drive needs to update at least every 1ms.
