Kollmorgen CB06551 | 650W Compact Servo Motor for Precision Motion Control – Field Service Notes

  • Model: CB06551 (also referenced with drive suffix PRD-B040SSIB-63)
  • Alt. P/N: CB06551 PRD-B040SSIB-63 (motor + drive combo), CB06560 (variant)
  • Product Series: Kollmorgen CB Series / AKD Servo Systems
  • Hardware Type: Brushless Permanent Magnet AC Servo Motor
  • Key Feature: 650W rated power with 2.8 Nm peak torque in a compact 65mm frame with IP65 protection and natural cooling
  • Primary Field Use: Precision positioning axes in packaging, printing, robotics, and semiconductor manufacturing equipment requiring compact size and reliable torque output.
Get a Quote
In Stock
Manufacturer:
Part number: Kollmorgen CB06551
Our extensive catalogue, including : Kollmorgen CB06551 , is available now for dispatch to the worldwide. Brand:

Description

Hard-Numbers: Technical Specifications

  • Motor Type: Brushless permanent magnet synchronous servo (3-phase, 8-pole)
  • Frame Size: IEC 65mm square flange (compact industrial)
  • Winding Type: B040 (optimized for 400V-class operation)
  • Rated Speed: 3000 RPM
  • Rated Power: 0.6 kW to 650 W (variant dependent)
  • Rated Torque: ~2.0-2.5 Nm (estimated at rated speed)
  • Peak Torque: 2.8 Nm (short-term overload capacity)
  • Continuous Current: 9 A RMS
  • Peak Current: 18 A RMS (2× continuous, short-term)
  • Voltage Class: 400 VAC / 480 VAC (nominal DC bus ~560-600V)
  • Torque Constant (K_T): ~0.31 Nm/A (line-to-line, estimated)
  • Voltage Constant (K_E): ~33-35 mV/min (line-to-line back-EMF, estimated)
  • Winding Resistance (R_20): ~2.5-3.5 Ω (line-to-line, cold, estimated)
  • Winding Inductance (L): ~12-18 mH (line-to-line, estimated)
  • Rotor Inertia: 0.006 kg·m² (6.0 × 10⁻⁴ kg·m², without brake)
  • Mechanical Time Constant: ~3-4 ms
  • Thermal Time Constant: 20-25 minutes (winding)
  • Insulation Class: F (155°C) with Class B temperature rise (80K)
  • Protection Class: IP65 (dust-tight, low-pressure water jet protected)
  • Cooling Method: Natural convection (no fan)
  • Mounting: IEC 65mm square flange, 14mm keyed shaft (optional smooth shaft)
  • Shaft Load: 400-500 N radial (max at shaft end), 150-200 N axial
  • Feedback Device: Incremental encoder (2048 line standard, 23-bit multi-turn absolute optional)
  • Bearing Type: Sealed ball bearings (greased for life)
  • Operating Temperature: -20°C to +60°C (ambient, derate above 40°C)
  • Storage Temperature: -40°C to +85°C (some sources indicate -55°C to +125°C for storage)
  • Weight: ~3.5-4.5 kg (7.7-9.9 lbs) depending on configuration
  • Dimensions: 65 × 65 mm flange, ~180-200 mm length
  • Compatible Drives: Kollmorgen AKD series, PRD-B040SSIB-63, Servostar CD

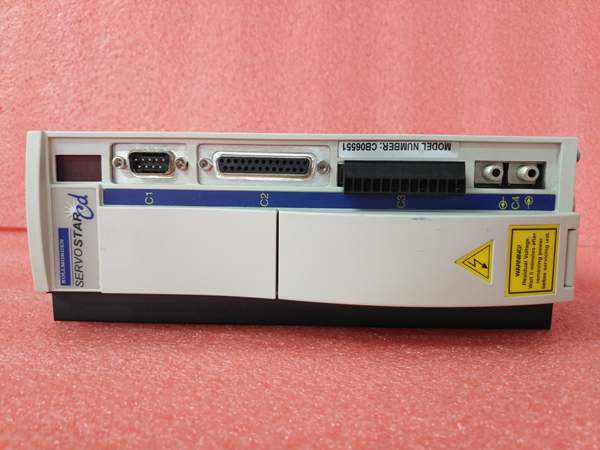

    Kollmorgen CB06551

    Kollmorgen CB06551

The Real-World Problem It Solves

Packaging lines, printing presses, and robotic cells need motors that deliver reliable torque without requiring liquid cooling or oversized frames that eat up machine real estate. The CB06551 eliminates the “cooling complexity” headache by using natural convection to dissipate 650W in a 65mm package—no fan bearings to fail, no coolant leaks, just solid-state reliability. It handles the messy reality of continuous-duty cycles in washdown environments where IP65 protection keeps out paper dust, ink mist, and cutting fluid.
Where you’ll typically find it:
  • Cartoning and case packing machinery with continuous-duty forming and sealing stations
  • Web-fed printing presses with precise tension control and registration requirements
  • Small robotic arms and pick-and-place units in cleanroom or light industrial settings
  • Semiconductor wafer handling equipment requiring smooth motion without vibration
This motor keeps your axes running clean and cool—no fan noise, no maintenance intervals for cooling systems, just compact servo performance that survives in harsh industrial air.

Hardware Architecture & Under-the-Hood Logic

The CB06551 isn’t just a smaller version of larger servos—it’s a thermally optimized design that maximizes surface area to volume ratio for natural convection cooling. The 8-pole configuration provides smoother torque ripple than 4-pole alternatives at 3000 RPM, reducing vibration in sensitive positioning applications. The B040 winding is specifically wound for 400V-class operation, matching industrial servo drives without requiring step-down transformers.
Internal Construction:
  1. Stator Assembly: Laminated steel core with concentrated 3-phase windings, vacuum-pressure impregnated (VPI) for thermal conduction and moisture resistance
  2. Rotor Assembly: High-energy neodymium-iron-boron (NdFeB) magnets on steel hub, bonded and wrapped for high-speed retention
  3. Thermal Design: Optimized finned aluminum housing maximizing surface area for natural convection; no internal fan required
  4. Feedback System: Incremental encoder with 2048 lines (8192 counts/rev with quadrature) or 23-bit multi-turn absolute encoder for position feedback
  5. Bearing System: Double-sealed ball bearings (greased for life), rated for 30,000+ hours at rated load and speed
  6. Thermal Protection: PTC thermistors embedded in windings (130°C trip) for drive-based overload protection

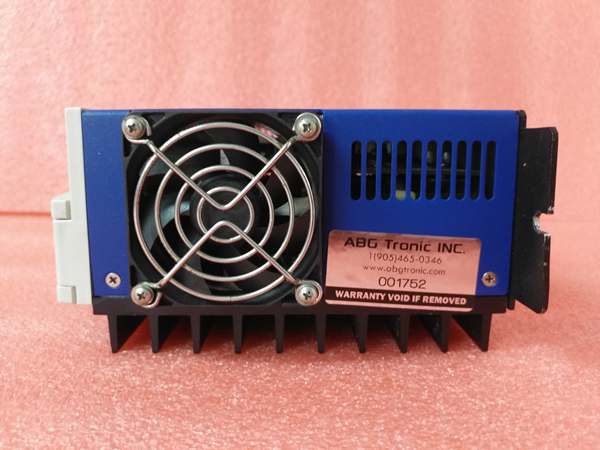

    Kollmorgen CB06551

    Kollmorgen CB06551

Field Service Pitfalls: What Rookies Get Wrong

Assuming Natural Cooling Means “Install Anywhere”
Natural convection only works if air can flow over the motor housing. Rookies mount the CB06551 in tight enclosures with zero clearance and wonder why it overheats during continuous operation.
  • Field Rule: Maintain 50mm (2 inches) minimum clearance around the entire motor housing for air circulation. If installed in a cabinet, ensure the cabinet has adequate ventilation (fan or heat exchanger) to keep ambient below 40°C. Monitor the motor temperature via the drive’s thermal model—if the calculated winding temperature exceeds 120°C, add external cooling or reduce the duty cycle. Natural cooling doesn’t work in 50°C ambient without help.
Mixing Up Encoder Types on Replacement
The CB06551 comes with either incremental (2048 line) or absolute (23-bit multi-turn) encoder options. Engineers replace a failed motor with the wrong encoder type and wonder why the axis won’t home or the drive faults on “Encoder Communication Error.”
  • Quick Fix: Verify the encoder type before ordering. Incremental encoders require homing at every power-up; absolute encoders retain position without homing. Check the part number suffix: “SSIB” typically indicates incremental, “MSIB” or similar indicates multi-turn absolute. If you must substitute, reconfigure the drive parameters—AKD drives can handle both, but the encoder type parameter must match the hardware. A mismatch results in immediate fault on enable.
Ignoring the 18A Peak Current Reality
The 18A peak rating is for transient acceleration only—typically limited to 2-3 seconds by the drive’s overload capacity and the motor’s thermal time constant (~20 minutes for windings). Rookies size mechanics for 2.8 Nm continuous, then watch the motor overheat and trip thermal protection during sustained high-torque operations.
  • Field Rule: Size your mechanics for ~2.0-2.5 Nm rated torque, use 2.8 Nm only for acceleration/deceleration transients. Calculate the RMS torque for your motion profile—if it exceeds the rated torque at your operating speed, you need a larger motor (CB06560 or CB06600 series) or a duty cycle reduction. Monitor the drive’s “Motor Thermal Load” parameter; if it trends above 80% during normal operation, you’re living on borrowed time.
