Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | CB06251 |
| Manufacturer | Kollmorgen |
| Product Category | Servo Drive |
| Operating Voltage | 220 V |
| Output Frequency | 30 kHz |
| Continuous Current | 6 A |
| Peak Current | 12 A (2 sec) |
| Input Voltage Range | 115-230 VAC (3-phase) |
| PWM Switching Frequency | Up to 15 kHz |
| Feedback System | Resolver, Encoder |
| Certifications | CE, UL |
| Operating Temperature Range | 0°C to 40°C |
| Storage Temperature Range | -20°C to 70°C |
| Humidity Range | Up to 90% non-condensing |
| Dimensions (L×W×H) | 249 mm × 163 mm × 83.3 mm |
| Weight | 2 kg |

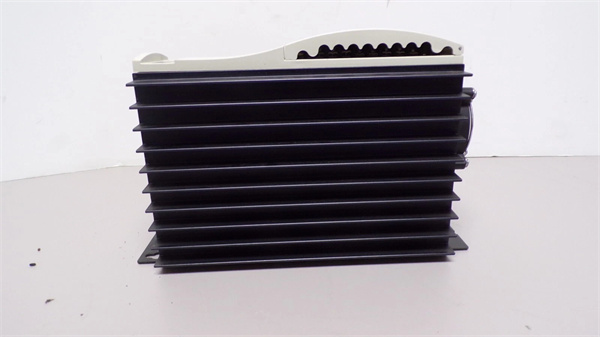

Kollmorgen CB06251
Product Introduction
The Kollmorgen CB06251 is a high-performance servo drive designed for precision motion control applications in various industrial environments. It offers reliable operation with an output frequency of up to 30 kHz and an operating voltage of 220 V. This drive is engineered to provide precise control and monitoring, making it ideal for applications requiring high dynamic response and stability.
Core Advantages and Technical Highlights
High Precision and Reliability: The CB06251 offers precise control capabilities, with a position loop update rate of 500 µs (2 kHz) and long-term speed regulation of 0.01%. It supports both resolver and encoder feedback systems, ensuring accurate monitoring of motor shaft position.
Wide Power Range and Compatibility: The drive supports a wide input voltage range of 115-230 VAC, making it suitable for various industrial power systems. It is designed for high-power industrial use, with a rated load capacity of up to 2 HP.
Advanced Communication Protocols: The CB06251 supports multiple communication protocols, such as CANopen, EtherCAT, and EtherNet/IP, ensuring seamless integration with modern industrial automation networks.
Safety Features: The drive includes overcurrent, overvoltage, and undervoltage protection, ensuring safe operation and preventing equipment damage. It complies with multiple international safety standards, such as UL 508C, CE, EN50178, EN61800-C, and Semi F47.
Easy to Use and Maintain: The drive features an easy-to-use graphical user interface (GUI), reducing engineering and support time. It also includes comprehensive fault protection and optical isolation input/output, extending the service life of the machine.

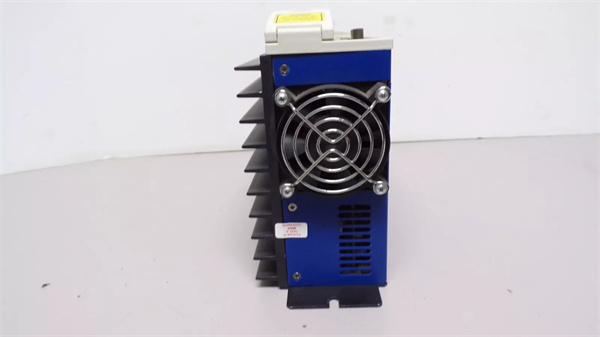

Kollmorgen CB06251
Typical Application Scenarios
The Kollmorgen CB06251 is widely used in various industrial sectors, including:
-
Machine Tools: For precise motion control in CNC machines.
-
Packaging Machinery: To control the movement of packaging lines.
-
Material Handling Systems: For efficient operation of conveyor systems and automated guided vehicles (AGVs).
-
Robotics: To drive motors in robotic arms and other automation equipment.
Related Model Recommendations
-
AKD Series: A higher power variant suitable for heavy-duty applications requiring more torque.
-
S21260-SRS: A similar model with slightly different specifications, offering additional configuration options.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements. Follow the installation manual carefully to ensure proper grounding and connection. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the drive for signs of damage or wear. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, consult the troubleshooting guide or contact a professional for assistance.
Service and Guarantee Commitment
The Kollmorgen CB06251 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Kollmorgen offers technical support and service to assist with installation, troubleshooting, and maintenance.
