Description
Hard-Numbers: Technical Specifications
-
Motor Type: Brushless permanent magnet synchronous servo (3-phase)
-
Rated Speed: 6000 RPM
-
Rated Power: 1.2 kW (1.6 hp)
-
Holding Torque: 1.0 Nm (continuous stall)
-
Rated Torque: 0.8 Nm at 6000 RPM
-
Peak Torque: 4.0 Nm (3× rated, limited by drive current)
-
Peak Current: 3.8 A (corresponds to peak torque)
-
Voltage Constant: ~32 V/KRPM (line-to-line back-EMF)
-
Winding Resistance: ~2.5 Ω (line-to-line, cold)
-
Winding Inductance: ~6.5 mH (line-to-line)
-
Rotor Inertia: 0.1 kg·cm² (0.00001 kg·m²)
-
Mechanical Time Constant: ~1.5 ms
-
Thermal Time Constant: 15 minutes (winding), 45 minutes (housing)
-
Insulation Class: F (155°C) with Class B temperature rise
-
Protection Class: IP64 (dust-tight, splash-proof)
-
Mounting: IEC 60mm square flange, 14mm keyed shaft (optional smooth shaft)
-
Shaft Load: 90 N axial (max at shaft end), 150 N radial
-
Brake Option: 24 VDC holding brake, 3.8 A inrush, S1 duty
-
Feedback Device: Resolver (standard) or incremental encoder (optional)
-
Operating Temperature: 0°C to +40°C (ambient, derate above 40°C)
-
Storage Temperature: -20°C to +70°C
-
Weight: 4.5 kg (9.9 lbs) with brake
-
Dimensions: 60 × 60 mm flange, ~180 mm length (with brake)
-
Compatible Drives: Kollmorgen Servostar series, Digifas drives, third-party servo amplifiers with proper current capacity

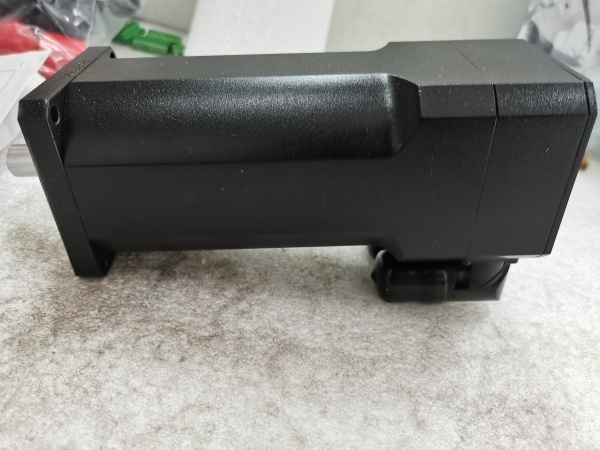

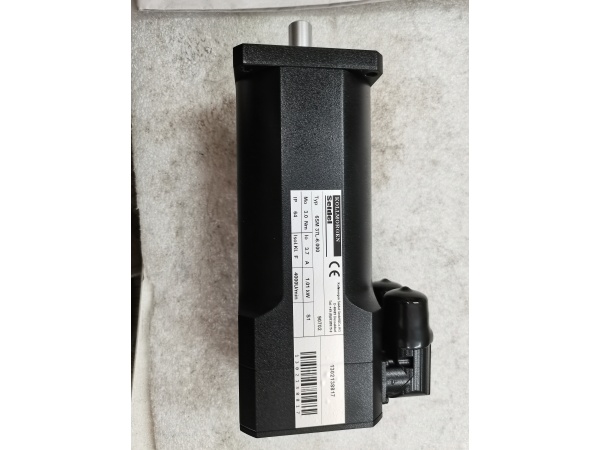

Kollmorgen 6SM37VL-6000
The Real-World Problem It Solves
Packaging lines and semiconductor handling equipment need motors that can accelerate fast, hold position precisely, and fit into tight machine frames without overheating. The 6SM37VL-6000 eliminates the “too big, too slow, too hot” compromise by delivering 6000 RPM in a 60mm square package with enough torque to handle moderate inertial loads. It handles the messy reality of high-speed indexing, pick-and-place cycles, and tension control where you need speed more than brute force.
Where you’ll typically find it:
-
High-speed packaging machinery for cartoning and labeling systems
-
Semiconductor wafer handling robots and transfer mechanisms
-
Precision textile machinery requiring rapid spindle acceleration
-
Automated assembly equipment with fast indexing tables
This motor keeps your axes moving fast without hogging cabinet space—no oversized gearboxes, no liquid cooling, just compact air-cooled performance.
Hardware Architecture & Under-the-Hood Logic
The 6SM37VL-6000 isn’t just a scaled-down industrial motor—it’s a high-frequency servo design optimized for fast dynamics. The brushless permanent magnet rotor uses rare-earth magnets for high torque density, while the stator winding is designed for low inductance to allow rapid current changes. The compact frame concentrates heat in the windings, requiring careful thermal management in continuous duty applications.
Internal Construction:
-
Stator Assembly: Laminated steel core with distributed 3-phase windings, potted for thermal conduction and mechanical integrity
-
Rotor Assembly: Surface-mounted rare-earth magnets on steel hub, bonded and wrapped for high-speed retention (tested to 1.2× max speed)
-
Feedback Device: Resolver (10-bit resolution typical) or optical encoder mounted to rear shaft, isolated from motor heat
-
Holding Brake: Spring-applied, electrically released disc brake with 24VDC coil, engages when power removed for vertical axis safety
-
Thermal Protection: PTC thermistors embedded in windings (130°C trip) for drive-based overload protection
-
Bearing System: Sealed ball bearings (greased for life), rated for 20,000 hours at rated load and speed

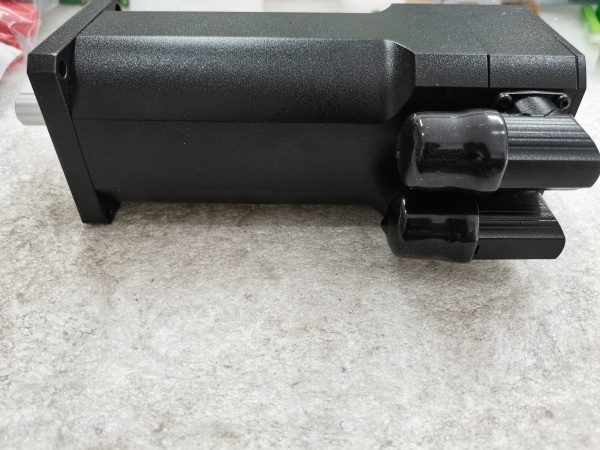

Kollmorgen 6SM37VL-6000
Field Service Pitfalls: What Rookies Get Wrong
Assuming 6000 RPM Means 6000 RPM Continuous
The 6SM37VL-6000 can hit 6000 RPM, but not with full torque continuously. The 0.8 Nm rated torque at 6000 RPM assumes adequate cooling and 40°C ambient. Rookies command full torque at max speed for extended periods and watch the motor overheat and trip thermal protection.
-
Field Rule: Check the duty cycle. The S1 rating assumes continuous operation at rated conditions. If you’re doing rapid indexing (accelerate-hold-decelerate), calculate the RMS torque and ensure it’s below 0.8 Nm. Monitor the PTC thermistor resistance—if it’s trending toward 1.5kΩ (130°C trip point), you’re overheating. Add a fan or reduce the duty cycle. For sustained high-speed operation, derate torque to 0.6 Nm above 5000 RPM.
Mixing Up the 6SM37VL and 6SM37-M Variants
The VL (very low inertia) variant has a different rotor construction and winding than the standard 6SM37-M. They have different torque constants, back-EMF profiles, and thermal characteristics. Rookies replace a failed VL with an M variant and wonder why the drive faults on overcurrent or the axis won’t tune.
-
Quick Fix: Verify the nameplate suffix before ordering spares. The VL has lower inertia (0.1 vs 0.15 kg·cm²) and higher speed capability but less continuous torque. If you must substitute, retune the servo drive completely—PID gains, current limits, and feedforward all change. Check the drive’s motor database; if it doesn’t have the VL profile, enter the parameters manually from the motor datasheet. Never assume “close enough” on servo motors.
Ignoring the 24V Brake Inrush Current
The holding brake draws 3.8A at 24VDC to release—far more than the holding current (~0.5A). Rookies size the brake power supply for holding current only, then watch the supply sag and the brake chatter or fail to release when the axis tries to move.
-
Field Rule: Size the brake power supply for 3.8A inrush, not 0.5A holding. Use a supply with at least 5A capacity, or add a dedicated brake relay with a large capacitor to handle the inrush. Wire the brake through the drive’s brake output (which typically has a current limit) or use an external relay with a suppression diode. Check brake release time—if it’s >100ms from command to full release, your supply is sagging or the brake is worn. Measure the air gap if release time increases over time; wear increases gap and requires more current to release.
