Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 88-132V AC / 105-132V DC |
| Output Voltage | 24V DC Regulated |
| Output Current | 10A Continuous / 15A Peak |
| Operating Temp | -40°C to +70°C |
| Efficiency | >92% |
| Protection Features | Overvoltage, Undervoltage, Short-Circuit, Reverse Polarity, Transient Suppression |
| Functional Revision | 1A |
| Configuration Suffix | FC (Fuel Control / Enhanced Filtering) |
| Mounting | DIN Rail or Panel Mount |
| Communication | IONet / SPI Bus for Health Reporting |
| Dimensions | 30.5cm x 15.2cm x 5.1cm (approx) |
| Weight | 控制1.5kg (approx) |
Product Introduction
Nuisance turbine trips often stem from noisy power feeding sensitive fuel control valves and I/O racks. The GE directly addresses this vulnerability by acting as a heavily filtered power interface. It is strategically deployed in gas turbine packages, compressor stations, and power generation facilities to ensure actuator and sensor banks receive pristine, regulated DC power regardless of upstream grid fluctuations.
Procurement teams and plant engineers should select this specific AEPSG variant because of its tailored firmware baseline. Unlike generic power supplies, this unit prioritizes harmonic isolation and precise voltage regulation required by fuel metering valves. Integrating this component enhances overall system reliability and prevents costly unplanned downtime caused by electrical noise or minor voltage sags.
-

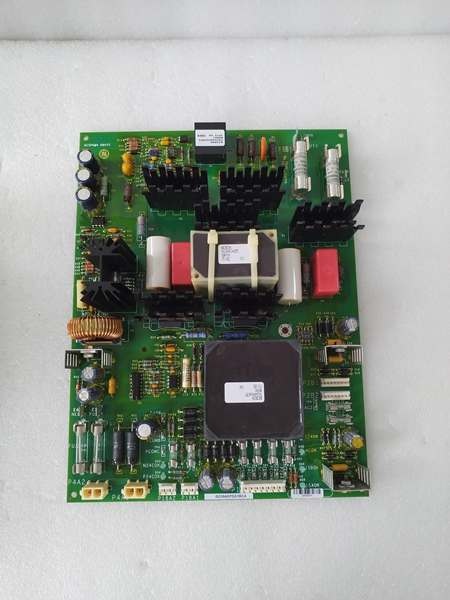

GE IS210AEPSG1AEC
Key Selling Points & Differentiators
- Enhanced EMI/RFI Filtering: The “FC” configuration includes additional input filtering components to eliminate electromagnetic interference common in fuel control cabinets.
- Verified Testing: Every refurbished unit completes a 24-hour continuous load test on a live Mark VIe simulator rack. A detailed test report is generated for each device.
- Not recommended for: General-purpose 5V logic powering; the FC suffix is specifically calibrated for 24V actuator and solenoid loads.
- Direct Contrast: Standard AEPSG modules lack the specific transient suppression threshold tuning found in the FC variant, making them susceptible to nuisance tripping in noisy electrical environments.
- Immediate Availability: In-stock units ship within 24 business hours from our Texas distribution center, complete with a 12-month warranty.
FAQ
- What distinguishes the FC suffix from other AEPSG modules?
The FC suffix indicates a specific firmware and hardware filter configuration optimized for Fuel Control applications. It provides tighter voltage regulation and enhanced noise filtering compared to standard or EC variants.
- Is this module compatible with my existing Mark VIe rack?
Compatibility depends on your system’s hardware definition file. Verify the full part number in your site’s Bill of Materials (BOM) or ToolboxST configuration. Mismatched suffixes can cause hardware key errors.
- What is the typical lead time if shown out of stock?
Lead time for new surplus units is typically 2-4 weeks. However, we maintain a rolling inventory of refurbished units that undergo same-day testing and shipping.
- My turbine experienced a brownout, but the main breaker didn’t trip. Could this module prevent a shutdown?
Yes. This unit features microsecond-level transient response. If the input voltage sags below operational thresholds, the internal capacitance maintains the 24V DC output long enough to bridge the gap or trigger a controlled shutdown sequence.
- Does the 12-month warranty cover installation errors?
The warranty covers component failure under normal operating conditions. It does not cover damage resulting from incorrect wiring, ESD handling violations, or exceeding the 10A current rating.
- I need a replacement urgently. Can I use a standard IS210AEPSG1A instead?
We do not recommend substituting suffixes. The FC variant has specific calibration settings. Using a standard unit might result in erratic actuator behavior or communication handshake failures with the Mark VIe controller.
- How do I monitor the health of this power supply?
The module continuously monitors its internal temperature, output ripple, and input voltage. This data is transmitted to the Mark VIe controller via the IONet bus, generating proactive alarms for maintenance personnel.
-
GE IS210AEPSG1AEC
-
Quality Transparency SOP
- Incoming Verification: We establish source traceability and perform serial number cross-referencing. Our technicians conduct a rigorous visual inspection for burnt components, corroded pins, or damaged mounting tabs. All necessary accessories are accounted for.
- Live Bench Test: The unit is mounted on a dedicated test rack featuring a live Mark VIe controller. We perform a power-on self-check, followed by a communications handshake verification via the IONet protocol. We then execute a full-scale I/O simulation and subject the unit to a continuous 24-hour load test at maximum rated capacity. A comprehensive timestamped test report is generated.
- Electrical Tests: Insulation resistance is measured using a 500V megger (must exceed 10 MΩ). Ground continuity is strictly verified to prevent ground loop issues.
- Firmware Verification: The current firmware version is recorded, and all DIP switch and jumper configurations are documented and backed up.
- Final QC & Packaging: A final quality control sign-off is completed and dated. The module is sealed in an anti-static bag, surrounded by industrial-grade foam shock protection, and affixed with a “QC Passed” label.
Transparency required: Test photos and video evidence of the bench test are available upon request. We never claim “100% failure-free” as industrial components operate under immense stress.
Technical Risk Avoidance
Firmware Mismatch
Risk: Installing a module with an incorrect suffix (e.g., ACC or AEC) will result in a hardware key mismatch, preventing the Mark VIe controller from booting and forcing a system trip.
Prevention: Always physically verify the label on the failed unit and cross-reference it with your plant’s approved spare parts list before ordering.
Anecdote: A rushed technician once installed a standard AEPSG into a fuel control cabinet. The subtle voltage fluctuations in the actuator loop caused the turbine to throw a “Valve Position Error” and trip offline during a peak demand period.
DIP/Jumper Errors
Risk: Incorrect jumper settings for input voltage (115V vs 230V) will instantly release the “magic smoke” and destroy the module upon power-up.
Prevention: Photograph the jumper configuration of the failed unit before removal. Compare it against the official GE technical manual before applying power to the replacement.
Anecdote: A maintenance crew skipped the manual check, assuming the default jumper position was correct. Applying 230V AC to a 115V-configured board resulted in a loud bang and a 48-hour plant shutdown.
Terminal Incompatibility
Risk: Using undersized wiring (e.g., 18 AWG) for the 24V DC output can cause excessive voltage drop under the 10A load, leading to erratic sensor readings or underpowered solenoids.
Prevention: Use minimum 12 AWG stranded copper wire for the main 24V DC output. Torque terminal screws to the specified 0.5 Nm to prevent thermal cycling loosening.
Anecdote: An installer used 14 AWG wire for a fuel control valve bank. Over time, the resistance increased due to heating, causing the valve to drift and the turbine to operate inefficiently.
Power Budget Miscalculation
Risk: Connecting too many high-draw solenoids or I/O modules will exceed the 10A continuous rating, forcing the AEPSG into thermal shutdown.
Prevention: Calculate the total worst-case current draw of all connected devices. Ensure the total load does not exceed 80% of the module’s 10A rating (8A max).
Anecdote: An engineer added several new proximity probes to a rack powered by a single AEPSG. The cumulative draw reached 11A, causing the module to overheat and trip intermittently.
ESD Damage
Risk: The internal DSP and logic components are highly sensitive to electrostatic discharge. Casual handling can create microscopic damage that causes intermittent failures weeks later.
Prevention: Always wear a grounded anti-static wrist strap and handle the module only by its edges or designated grounding points.
Anecdote: A contractor placed a module on a rubber mat while troubleshooting. The static discharge from his uniform destroyed the communication chip. The module passed the initial bench test but failed to communicate once installed in the rack.
Practical Summary: Match the suffix exactly, respect the 10A power budget, and handle with strict ESD protocols. Keep the serialized test report on file for audit trails and warranty claims.
