Description
Product Overview

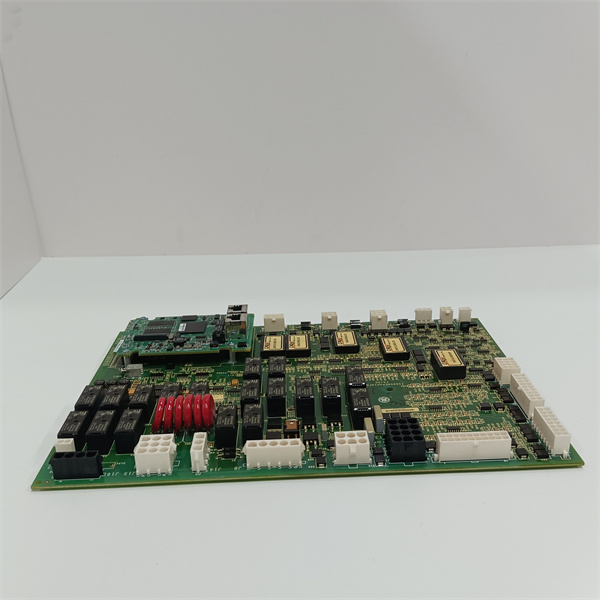

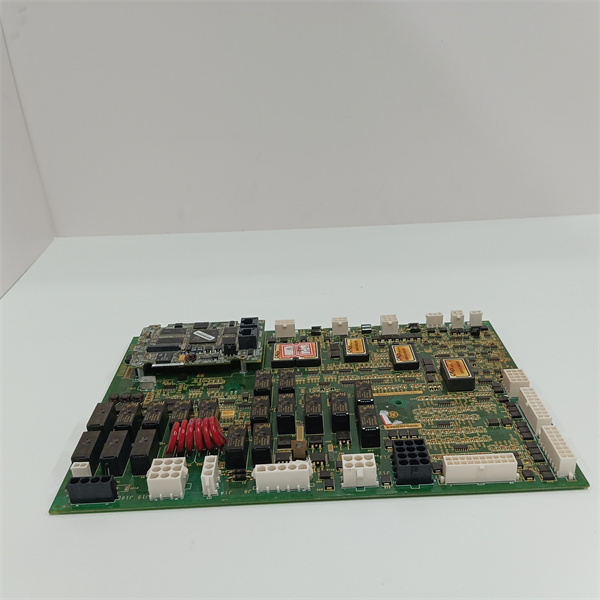

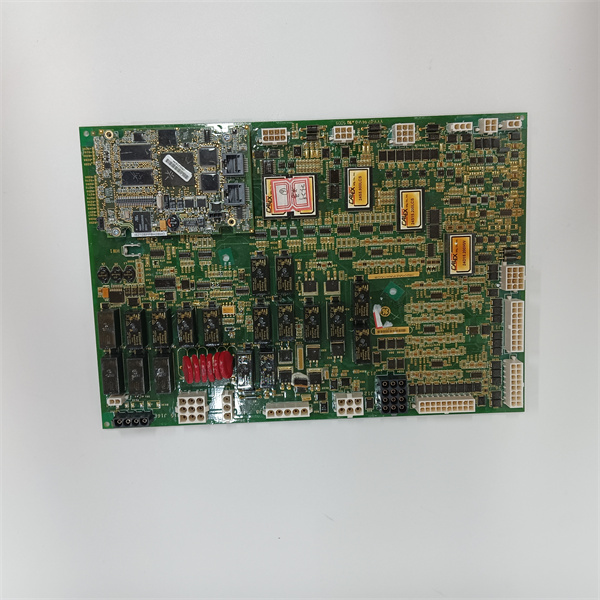

The GE IS200TRPGH1BDD S1C5029 is a primary trip terminal board that belongs to the renowned GE Speedtronic Mark VI series. It is a key component in gas turbine control systems, designed to handle critical control and protection functions. This board serves as an interface between the I/O controller and various external devices such as trip solenoids and flame detectors. With its advanced design, the IS200TRPGH1BDD S1C5029 can precisely regulate and monitor the electrical signals related to the operation of the gas turbine, ensuring the safe and reliable operation of the entire system. It plays a vital role in protecting the turbine from potential faults and malfunctions, thereby enhancing the overall performance and availability of the gas turbine system.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS200TRPGH1BDD S1C5029 |
| Manufacturer | General Electric |
| Product Type | Terminal Board |
| Trip Solenoids | 3 |
| Solenoid Rated Voltage/Current | 125 V DC |
| Solenoid Response Time | L/R time constant is 0.1 sec |
| Current Suppression | Metal Oxide Varistor |
| Control Relay Coil Voltage Supply | 28 V |
| Flame Detector Supply Voltage/Current | 335 V DC |
| Flame Detectors | 8 |
| Dimensions | 45 cm x 35 cm x 32 cm |
| Weight | 2 kg |
| Country of Origin | USA |
IS200DTAIH1ABB
Main Features and Advantages
Reliable and stable: The IS200TRPGH1BDD S1C5029 is designed with high – quality components and advanced manufacturing processes, ensuring its reliable operation in harsh industrial environments. It has a low failure rate and can withstand the test of time.
Precise control: This terminal board can accurately control the trip solenoids and monitor the flame detectors, providing precise control and protection for the gas turbine. It helps to maintain the stable operation of the turbine and prevent potential accidents.
Flexible configuration: The Mark VI series platform is highly flexible, and the IS200TRPGH1BDD S1C5029 can be easily integrated into different system configurations, supporting both simplex and TMR applications. This allows for greater flexibility in system design and expansion.
Precise control: This terminal board can accurately control the trip solenoids and monitor the flame detectors, providing precise control and protection for the gas turbine. It helps to maintain the stable operation of the turbine and prevent potential accidents.
Flexible configuration: The Mark VI series platform is highly flexible, and the IS200TRPGH1BDD S1C5029 can be easily integrated into different system configurations, supporting both simplex and TMR applications. This allows for greater flexibility in system design and expansion.
Application Field
The GE IS200TRPGH1BDD S1C5029 is mainly used in gas turbine control systems. In power plants, it is essential for the safe and efficient operation of gas turbines, ensuring the stable generation of electricity. It is also widely used in industrial processes that rely on gas turbines for power supply, such as in the oil and gas industry, chemical plants, and manufacturing facilities. By precisely controlling the gas turbine, the IS200TRPGH1BDD S1C5029 helps to improve the overall efficiency of the production process and reduce energy consumption.
Related Products
- IS200TRPGH1B: The basic version of the terminal board, similar in function to IS200TRPGH1BDD S1C5029, but may have some differences in specific configurations or performance.
- VTUR board: Interfaces with the IS200TRPGH1BDD S1C5029 in Mark VI systems, responsible for certain control and communication functions.
- TREG board: Works together with the IS200TRPGH1BDD S1C5029 to form the interface to the emergency trip devices, providing additional protection and control.
- PTUR packs on TTURH1C: Control the IS200TRPGH1BDD S1C5029 in Mark VIE systems, accepting I/O packs as input.
- GE Speedtronic Mark VI I/O board: Controls the operation of the IS200TRPGH1BDD S1C5029, monitoring supply voltages and current flow for diagnostic purposes.
IS200AEPAH1ACB
Installation and Maintenance
Pre – installation preparation: Before installing the GE IS200TRPGH1BDD S1C5029, make sure to carefully read the installation manual. Check the working environment to ensure it meets the requirements, and prepare the necessary tools and equipment. Clean the installation site to avoid dust and debris. When handling the board, always wear anti – static gloves and use proper ESD protection measures to prevent damage from static electricity.
Maintenance recommendations: Regularly check the connection status of the IS200TRPGH1BDD S1C5029 to ensure that all connectors are firmly connected. Inspect the board for any signs of damage or wear, such as burnt components or loose wires. Clean the board regularly to remove dust and dirt. If any faults are detected, refer to the troubleshooting guide in the manual or contact the GE technical support team for assistance.
Maintenance recommendations: Regularly check the connection status of the IS200TRPGH1BDD S1C5029 to ensure that all connectors are firmly connected. Inspect the board for any signs of damage or wear, such as burnt components or loose wires. Clean the board regularly to remove dust and dirt. If any faults are detected, refer to the troubleshooting guide in the manual or contact the GE technical support team for assistance.
Product Guarantee
GE provides a comprehensive product guarantee for the IS200TRPGH1BDD S1C5029. The product comes with a standard quality assurance period, during which any defects in materials or workmanship will be repaired or replaced free of charge. GE also offers professional after – sales service and technical support. Their team of experts is available to answer any questions and provide solutions to ensure the proper operation of the product. With GE’s commitment to quality, customers can have full confidence in the performance and reliability of the IS200TRPGH1BDD S1C5029.
