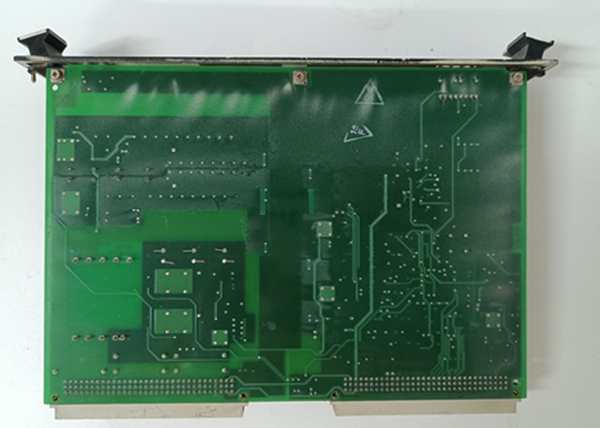

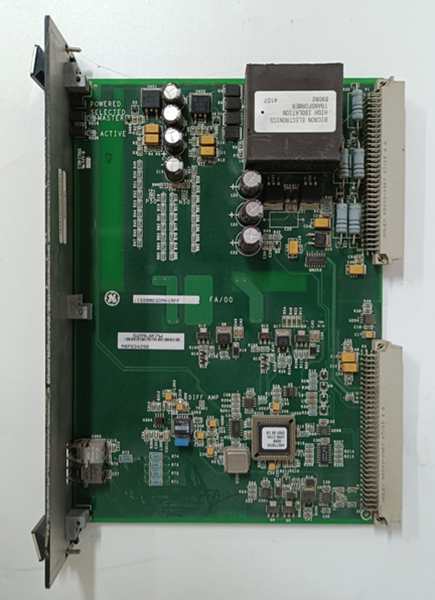

Product Description: GE IS200EXAMG1A

h2 Detailed Parameter Table

IS200EXAMG1A

h2 Product Introduction

The IS200EXAMG1A is a multifunction analog monitoring & alarm module developed by General Electric (GE), exclusively designed for GE’s Mark VI Speedtronic turbine control systems—critical infrastructure for power generation, oil & gas, and industrial turbine operations. As a versatile member of GE’s IS200-series, the IS200EXAMG1A combines precision signal conditioning with integrated alarm functionality, making it ideal for monitoring critical turbine parameters while providing immediate alerts for abnormal conditions.

Unlike basic signal conditioning modules, the IS200EXAMG1A offers built-in alarm capabilities that reduce the need for separate monitoring equipment. Each of its 8 channels can be independently configured for different signal types (voltage, current, thermocouple, RTD) and programmed with high/low alarm limits. Paired with GE’s IS200JGPAG1A power module for redundant 24 V DC supply, the IS200EXAMG1A delivers reliable performance in harsh environments while simplifying system architecture and reducing installation costs.

h2 Core Advantages and Technical Highlights

Multi-Signal Type Support: The IS200EXAMG1A’s ability to handle multiple signal types from a single module eliminates the need for specialized measurement equipment. In a gas turbine plant, for example, the module can simultaneously monitor 4–20 mA pressure signals, ±10 V vibration signals, Type K thermocouples for temperature measurement, and Pt100 RTDs for bearing temperature monitoring—all from one compact module. This versatility reduces the number of modules required by up to 75%, saving valuable chassis space and simplifying wiring complexity.

Integrated Alarm Functionality: Each channel on the IS200EXAMG1A features programmable high/low alarm limits with configurable deadband to prevent nuisance tripping. When an alarm condition is detected, the module can activate a dedicated alarm relay or send a digital signal to the Mark VI controller. In a coal-fired power plant, this capability enables immediate notification of abnormal bearing temperatures, allowing maintenance crews to respond before catastrophic failure occurs. The alarm functionality reduces the need for separate monitoring systems, lowering overall project costs.

High Accuracy Measurements: With 16-bit resolution for voltage/current signals and 24-bit resolution for temperature measurements, the IS200EXAMG1A delivers precise data for turbine control and monitoring. The module’s >105 dB CMRR ensures accurate measurements even in electrically noisy environments common in power generation facilities. For example, when monitoring combustion chamber pressure with a 4–20 mA transmitter, the module maintains measurement accuracy within ±0.02 mA, enabling precise fuel control and emissions management.

Robust Design for Harsh Environments: The IS200EXAMG1A features IPC-CC-830 Class 3 conformal coating and a wide operating temperature range (-20 °C to 70 °C), making it suitable for installation in turbine enclosures and other harsh environments. The module’s 1500 Vrms isolation provides protection against electrical transients, while overvoltage, overcurrent, and ESD protection safeguard against installation errors and environmental hazards. GE’s accelerated life testing confirms the module can operate reliably for 15+ years in these challenging conditions.

h2 Typical Application Scenarios

In power generation, the IS200EXAMG1A is widely used in GE Mark VI-equipped gas turbine plants. It monitors various critical parameters throughout the turbine system, including combustion chamber pressure (4–20 mA), turbine inlet/outlet temperature (Type K thermocouples), bearing temperature (Pt100 RTDs), and fuel gas pressure (4–20 mA). The module’s alarm functionality provides immediate notification of abnormal conditions, allowing operators to take corrective action before these issues escalate into major problems, reducing unplanned downtime and maintenance costs.

In oil & gas applications, the IS200EXAMG1A is used to monitor critical parameters in gas compression stations. It handles signals from pressure transmitters monitoring pipeline pressure, temperature sensors tracking compressor discharge temperature, and various other process variables. The module’s conformal coating protects against corrosive environments, while its robust input protection safeguards against electrical interference from nearby motor drives. The integrated alarm system provides early warning of potential issues, helping prevent costly equipment failures.

In industrial manufacturing, the IS200EXAMG1A finds application in process control systems where precise temperature and pressure monitoring is essential. For example, in chemical processing plants, it monitors reactor temperatures using thermocouples and process pressures via 4–20 mA transmitters. The module’s alarm outputs can trigger cooling systems or shutdown procedures when process parameters exceed safe limits, preventing accidents and ensuring product quality.

h2 Related Model Recommendations

IS200JGPAG1A: GE’s dual-mode power module, provides redundant 24 V DC power to the IS200EXAMG1A—ensuring reliable operation even during power supply interruptions.

IS200MDDHG1A: GE’s analog I/O module, pairs with the IS200EXAMG1A to add additional analog channels for comprehensive system monitoring.

IS200GDDDG1A: GE’s digital I/O module, works with the IS200EXAMG1A to provide additional digital inputs/outputs for control and monitoring functions.

IS200TBAIH1A: GE’s terminal block assembly, organizes the IS200EXAMG1A’s wiring and provides strain relief for connections in high-vibration environments.

IS200PPDAH1A: GE’s backplane adapter, ensures proper connectivity between the IS200EXAMG1A and older Mark VI chassis revisions.

IS200PCCAG1A: GE’s power conditioning card, filters power supply noise for the IS200EXAMG1A in unstable electrical environments.

IS200JDCBH1A: GE’s DC redundant supply board, adds an additional layer of power supply redundancy for the IS200EXAMG1A in mission-critical applications.

IS200EXAMG1B: Updated revision of the IS200EXAMG1A with 12 channels instead of 8, offering expanded monitoring capability for larger systems.

IS200EXAMG1A

h2 Installation, commissioning and maintenance instructions

Installation preparation: Before installing the IS200EXAMG1A, verify compatibility with your GE Mark VI system and ensure the controller firmware supports the module. Power off the control system and follow proper lockout/tagout procedures. Use an anti-static wristband and ESD mat when handling the module to prevent damage to sensitive components. Required tools include a Phillips screwdriver, torque wrench (0.3–0.5 N·m), wire strippers, and a multimeter. Mount the IS200EXAMG1A in the appropriate slot of the Mark VI chassis, ensuring proper alignment with the backplane connector. Connect field wiring to the terminal blocks according to the wiring diagram, verifying correct polarity and signal type for each channel.

Commissioning and configuration: After physical installation, configure the IS200EXAMG1A using GE’s programming software. Set the appropriate signal type for each channel (voltage, current, thermocouple, or RTD) and configure scaling parameters as needed. Program alarm limits for each monitored parameter, setting appropriate high/low thresholds and deadband values. Test each channel with known input signals to verify proper operation and calibration. Configure alarm outputs according to system requirements, either using the module’s dedicated alarm relay or digital outputs to communicate with the main controller.

Maintenance suggestions: Perform regular visual inspections of the IS200EXAMG1A, checking for loose connections, signs of corrosion, or physical damage. Clean the module periodically using compressed air or a soft brush to remove accumulated dust. Verify calibration annually using standard signal sources for each configured signal type. Check alarm functionality by simulating out-of-range conditions and confirming proper alarm activation and reset. If a channel shows abnormal readings, first check the field wiring and connected sensor before suspecting a module issue. For persistent problems, contact GE service for support or replacement.

h2 Service and Guarantee Commitment

The IS200EXAMG1A comes with GE’s industry-leading 3-year manufacturer’s warranty, covering defects in materials, workmanship, and performance. GE guarantees that the IS200EXAMG1A will meet all published specifications when properly installed and maintained according to GE guidelines. If the module fails to perform as specified during the warranty period, GE will provide a replacement unit at no cost.

Customers receive comprehensive technical support for the IS200EXAMG1A, including access to GE’s global network of technical experts, online resources, and documentation. GE offers commissioning assistance for new installations, ensuring proper configuration and integration with Mark VI systems. For mission-critical applications, extended service plans are available that include priority technical support, accelerated replacement service, and preventive maintenance programs. These service offerings demonstrate GE’s commitment to customer success and the long-term reliability of the IS200EXAMG1A in demanding industrial environments.
