Professional Product Description: GE IS200ECTbg2a
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product model | IS200ECTBG2A |
| Manufacturer | General Electric (GE) |
| Product category | Excitation Control Thyristor Gate Driver Module (Mark VIe EX2100e) |
| Function | Thyristor firing pulse generation, gate drive, and status monitoring |
| Output channels | 6 independent thyristor gate drive channels |
| Gate drive output | 10V to 15V peak, adjustable pulse width (0.1ms to 10ms) |
| Input control signals | Digital firing commands via backplane; synchronization input |
| Monitoring features | Gate pulse feedback, overvoltage/overcurrent protection, temperature monitoring |
| Isolation rating | Channel-to-channel: 2.5kV RMS; Channel-to-ground: 5kV RMS |
| Communication | Mark VIe backplane interface; status reporting to main controller |
| Power requirements | 24VDC ±10%, 0.8A max |
| Operating temperature | -40°C to +85°C |
| Safety compliance | IEC 61010-1, UL 61010-1, EN 61326-1 |
| MTBF | 2,500,000 hours (at 40°C) |

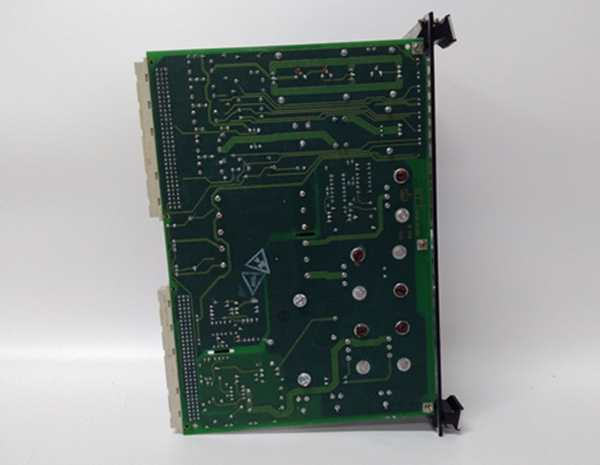

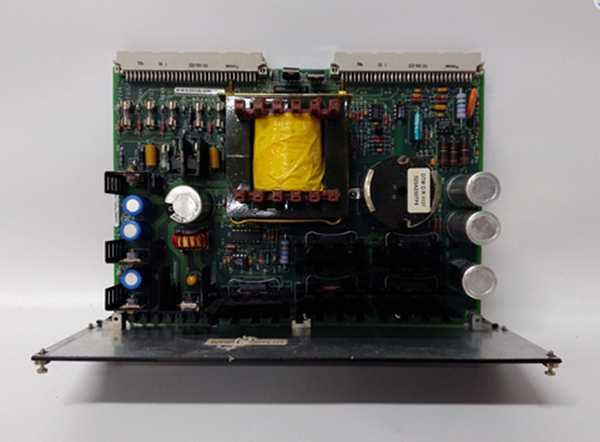

IS200ECTBG2A
Product Introduction
The IS200ECTBG2A is a critical excitation control component developed by GE for the Mark VIe EX2100e excitation system platform. As a specialized thyristor gate driver module, it serves as the interface between the excitation controller and the power thyristor bridges that regulate generator field current.
This module generates precisely timed gate pulses to trigger thyristor conduction, controlling the field current with microsecond-level accuracy. It provides six independent drive channels to accommodate three-phase full-wave bridge configurations common in generator excitation systems. The IS200ECTBG2A also incorporates comprehensive monitoring capabilities to verify proper thyristor operation and protect against faults.
Designed for the harsh environments of power generation facilities, the IS200ECTBG2A features rugged construction with enhanced isolation and protection features. Its seamless integration with the Mark VIe backplane allows for centralized control and diagnostics, making it an essential component in modern generator excitation control architectures.
Core Advantages and Technical Highlights
Precision Timing Control: The IS200ECTBG2A delivers microsecond-accurate firing pulses with adjustable pulse widths (0.1ms to 10ms), enabling precise control of thyristor conduction angles. This level of accuracy is crucial for maintaining stable generator voltage regulation and reactive power control.
Enhanced Protection Features: The module incorporates multiple protection mechanisms including gate pulse feedback verification, overvoltage protection, and temperature monitoring. These features help prevent catastrophic failures in the power electronics and ensure safe system shutdown during fault conditions.
High Isolation Rating: With 2.5kV channel-to-channel isolation and 5kV channel-to-ground isolation, the IS200ECTBG2A provides robust protection between the low-voltage control circuitry and the high-power thyristor bridges, enhancing system reliability in noisy industrial environments.
Seamless System Integration: Fully integrated with the Mark VIe backplane, the IS200ECTBG2A enables centralized control and monitoring through the main excitation controller. This integration simplifies system design and allows for comprehensive diagnostics through the human-machine interface.
Industrial-Grade Reliability: Designed to operate in extreme temperature conditions (-40°C to +85°C) with high vibration immunity, the IS200ECTBG2A delivers reliable performance in the demanding environments typical of power generation facilities.
Typical Application Scenarios
In large fossil-fuel power plants, the IS200ECTBG2A plays a crucial role in controlling the excitation system of synchronous generators. It receives firing commands from the main excitation controller and generates precisely timed gate pulses to the thyristor bridges, regulating the field current to maintain stable terminal voltage and reactive power output.
For hydroelectric generators, the IS200ECTBG2A provides the precise excitation control necessary to handle varying load conditions and grid disturbances. Its rapid response capability helps maintain system stability during transient events.
In combined-cycle power plants, the IS200ECTBG2A coordinates with the turbine control system to provide synchronized excitation control during startup and load changes. This ensures smooth generator synchronization with the grid and optimal power plant performance.
The module is also widely used in industrial cogeneration facilities and renewable energy applications where precise excitation control is essential for grid stability and power quality.
Related Model Recommendations
IS200EAUXH1A – Excitation auxiliary I/O interface board that works with the IS200ECTBG2A to provide sensor inputs and control outputs for the excitation system.
IS200ESELH1A – Excitation selector module that may be paired with the IS200ECTBG2A in redundant excitation system configurations.
IS200EACFG2A – Configuration module that stores setup parameters for the IS200ECTBG2A and other excitation system components.
IS200DSPXH2C – High-performance digital signal processor that provides the control algorithms implemented by the IS200ECTBG2A.
IS200IVFBG1A – Voltage/frequency feedback module that supplies grid parameters to the excitation controller, influencing the firing commands sent to the IS200ECTBG2A.
IS200EHBQG2A – Backplane module that provides power and communication connectivity for the IS200ECTBG2A within the Mark VIe system.
IS200JGNDG1A – Grounding module that enhances signal integrity for the IS200ECTBG2A by reducing noise and preventing ground loops.
IC698CPE030 – Mark VIe main controller that coordinates with the IS200ECTBG2A in integrated turbine and excitation control systems.
Installation, Commissioning and Maintenance Instructions
Installation preparation: Before installing the IS200ECTBG2A, ensure the Mark VIe backplane is powered down. Verify that the operating environment meets the module’s specifications (-40°C to +85°C). Use ESD-protective equipment during handling. Confirm that the backplane slot is compatible with gate driver modules and that the 24VDC power supply meets the required specifications (±10% tolerance). Ensure proper isolation between the control system and high-voltage equipment according to safety regulations.
Commissioning: After physical installation, configure the IS200ECTBG2A using GE’s ToolboxST software. Set appropriate pulse width parameters and verify communication with the main excitation controller. Perform functional tests to confirm proper operation of all six gate drive channels. Calibrate and verify synchronization with the power system as required.
Maintenance suggestions: Regularly monitor the IS200ECTBG2A status through the Mark VIe HMI. Check for any fault indicators or abnormal temperature readings. Periodically verify the integrity of all connections, particularly the high-voltage isolation barriers. Keep firmware updated to the latest version recommended by GE. In case of module failure, follow proper lockout/tagout procedures before replacement. Always use GE-approved replacement parts to ensure system compatibility and safety.
Service and Guarantee Commitment
The IS200ECTBG2A comes with a 2-year standard warranty from GE, covering defects in materials and workmanship. GE’s global service network provides comprehensive support for the IS200ECTBG2A, including technical assistance, repair services, and spare parts availability.
GE offers 24/7 technical support for the IS200ECTBG2A, with specialists available to assist with installation, configuration, and troubleshooting. Customers have access to GE’s extensive library of technical documentation, including user manuals, application notes, and best practices guides for excitation control systems.
For mission-critical applications, GE provides extended warranty options and preventive maintenance services to ensure the IS200ECTBG2A operates at peak performance throughout its service life. GE’s commitment to quality ensures that the IS200ECTBG2A will provide reliable excitation control in even the most demanding power generation environments.
