Professional Product Description: GE IS200DSPXH1D

Detailed Parameter Table

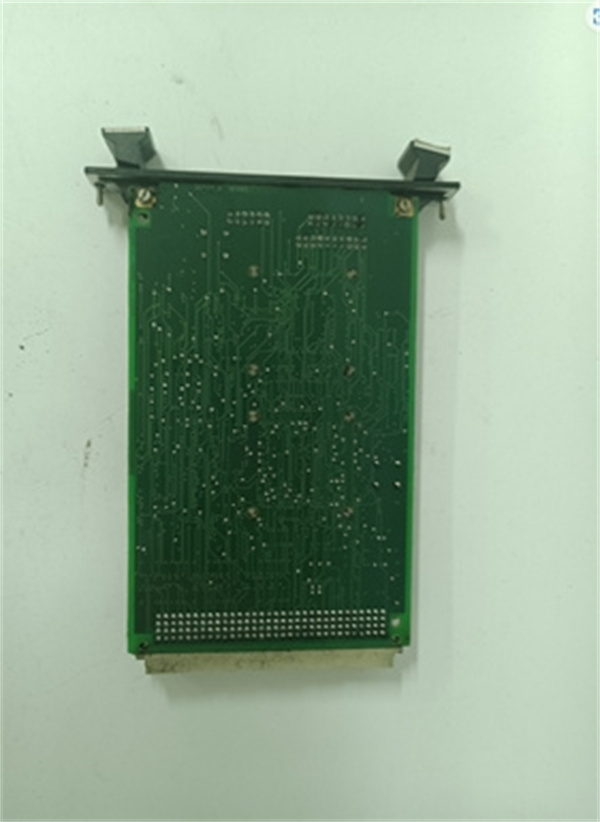

IS200DSPXH1D

Product Introduction

The IS200DSPXH1D is a high-performance digital signal processor module developed by GE for its Mark VIe Speedtronic turbine control system. As a key component in GE’s advanced turbine automation platform, this module serves as the “signal processing engine” that transforms raw sensor data into actionable control signals for efficient and reliable turbine operation.

Equipped with a 160 MHz floating-point DSP delivering 320 MFLOPS of processing power, the IS200DSPXH1D excels at real-time data processing and complex algorithm execution. Its comprehensive I/O capabilities include 8 analog inputs (16-bit resolution at 500 kSPS) and 4 digital/pulse inputs (up to 500 kHz), making it ideal for handling multiple sensor types simultaneously.

The IS200DSPXH1D plays a crucial role in modern turbine control architectures by providing the computational power needed for advanced control strategies, condition monitoring, and performance optimization. Its robust design ensures reliable operation in the harsh environments typical of power generation facilities, including extreme temperatures, vibration, and electromagnetic interference.

Core Advantages and Technical Highlights

High-Performance Signal Processing: The IS200DSPXH1D features a dedicated floating-point DSP that executes complex control algorithms with exceptional speed and precision. This capability is essential for advanced control strategies such as model predictive control (MPC) and adaptive tuning, which optimize turbine performance while maintaining safe operating margins.

Multi-Sensor Data Acquisition: With 8 high-resolution analog inputs and 4 high-speed digital inputs, the IS200DSPXH1D can simultaneously process data from multiple sensors throughout the turbine system. This includes temperature, pressure, vibration, and speed measurements that are critical for both control and condition monitoring applications.

Industrial-Grade Reliability: Designed specifically for turbine control applications, the IS200DSPXH1D meets the demanding requirements of power generation environments. Its wide operating temperature range (-40°C to +85°C), rugged construction, and comprehensive EMC protection ensure reliable operation even in harsh conditions.

Seamless System Integration: The IS200DSPXH1D integrates seamlessly with other Mark VIe components through its dual Ethernet interfaces and backplane connection. This allows for efficient data exchange with the main controller and other system modules, creating a cohesive control architecture.

Flexible Programming Environment: Supporting IEC 61131-3 programming standards along with GE’s specialized algorithm library, the IS200DSPXH1D offers flexibility in implementing custom control strategies. This allows engineers to develop application-specific solutions while leveraging GE’s extensive experience in turbine control.

Typical Application Scenarios

In combined-cycle power plants, the IS200DSPXH1D is used to process data from gas turbine sensors including exhaust temperature thermocouples, compressor discharge pressure transducers, and rotor speed encoders. The module executes advanced control algorithms that optimize fuel delivery and airflow to maintain efficient combustion while minimizing emissions.

For steam turbine applications, the IS200DSPXH1D processes steam pressure and temperature data, along with valve position feedback, to implement precise speed and load control. Its high-speed processing capabilities enable rapid response to load changes while maintaining stable operation.

In industrial cogeneration facilities, the IS200DSPXH1D coordinates between the turbine control system and auxiliary equipment such as heat recovery steam generators (HRSGs). It processes both electrical load demands and thermal requirements to optimize the overall plant efficiency.

The IS200DSPXH1D is also used in condition monitoring applications, processing vibration data to detect early signs of mechanical issues. By analyzing vibration patterns in real-time, the module can identify potential problems before they escalate into major failures, enabling predictive maintenance strategies.

Related Model Recommendations

IS200HFPAG2A – High-frequency pulse acquisition module that provides precise speed and position data to the IS200DSPXH1D for turbine control and protection applications.

IS200IVFBG1A – Voltage/frequency feedback module that supplies grid parameters to the IS200DSPXH1D for synchronization and power control functions.

IS200DTAIH1A – Digital input module that sends status signals from field devices to the IS200DSPXH1D for monitoring and interlock functions.

IS200DTAOH1A – Digital output module that executes control commands generated by the IS200DSPXH1D to operate valves, pumps, and other equipment.

IC698CPE030 – Mark VIe main controller that works in conjunction with the IS200DSPXH1D to provide comprehensive turbine control functionality.

IS200EACFG1A – Configuration module that stores the IS200DSPXH1D’s program and parameters, enabling quick replacement and minimizing downtime.

IS200EHBQG2A – Backplane module that provides power and communication connectivity for the IS200DSPXH1D within the Mark VIe system.

IS200JGNDG1A – Grounding module that enhances signal integrity for the IS200DSPXH1D by reducing noise and preventing ground loops.

IS200DSPXH1D

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing the IS200DSPXH1D, ensure the Mark VIe backplane is powered down. Verify that the installation environment meets the module’s operating specifications (-40°C to +85°C). Use ESD-protective equipment and tools to prevent electrostatic damage. Check that the backplane slot is compatible with DSP modules and that the 24 VDC power supply meets the required specifications (±10% tolerance). Use shielded twisted-pair cables for all signal connections and ensure proper grounding according to GE guidelines.

Commissioning: After physical installation, configure the IS200DSPXH1D using GE’s ToolboxST software. Download the appropriate control program and parameter settings. Perform a complete system checkout, verifying all analog and digital inputs and outputs. Calibrate analog channels as required and verify communication with the main controller and other system components.

Maintenance suggestions: Regularly monitor the IS200DSPXH1D status through the Mark VIe HMI. Perform periodic diagnostic tests using ToolboxST to verify module health and performance. Inspect connections quarterly, tightening any loose terminals. Keep the module firmware updated to the latest version recommended by GE. If a failure occurs, first check power and communication connections before considering module replacement. Always use GE-approved replacement parts to ensure system compatibility and reliability.

Service and Guarantee Commitment

The IS200DSPXH1D comes with a 2-year standard warranty from GE, covering defects in materials and workmanship. GE’s global service network provides comprehensive support for the IS200DSPXH1D, including technical assistance, repair services, and spare parts availability.

GE offers 24/7 technical support for the IS200DSPXH1D, with specialists available to assist with installation, configuration, and troubleshooting. Customers have access to GE’s extensive library of technical documentation, including user manuals, application notes, and programming guides.

For mission-critical applications, GE provides extended warranty options and preventive maintenance services to ensure the IS200DSPXH1D operates at peak performance throughout its service life. GE’s commitment to quality and customer satisfaction ensures that the IS200DSPXH1D will provide reliable performance in even the most demanding turbine control applications.
