Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T9300 |
| Manufacturer | ICS TRIPLEX (part of Rockwell Automation) |
| Product category | I/O Backplane |
| Operating Voltage | 18-32 V DC |
| Maximum Current | 9.6 A (400 mA per slot) |
| Number of I/O Slots | Up to 24 |
| Communication Protocol | Modbus RTU, EtherCAT, Profinet |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 19″ (W) x 1.7″ (H) x 10.2″ (D) |
| Weight | 10 lbs (4.5 kg) |
| Certifications | CE, UL, EN 50155 |
Product Introduction
The ICS TRIPLEX T9300 is a high-availability Input/Output (I/O) backplane designed for mission-critical industrial applications. It is part of the ICS TRIPLEX TMR (Triple Modular Redundancy) system, known for its robustness and reliability in demanding environments. This backplane serves as a central communication hub for various I/O modules, ensuring seamless data exchange between the control processor and field devices.

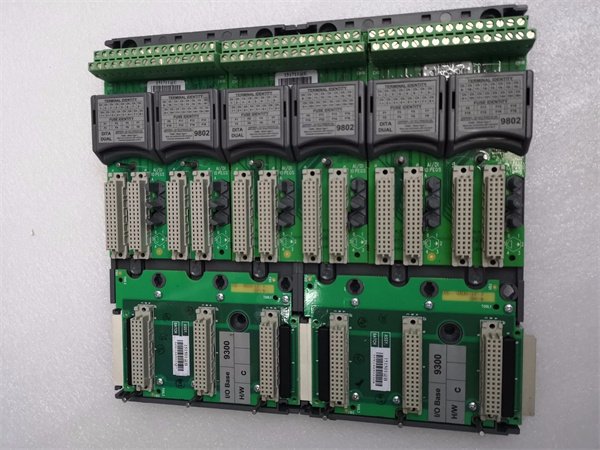

ICS TRIPLEX T9300
Core Advantages and Technical Highlights
Triple Modular Redundancy (TMR)
The ICS TRIPLEX T9300 employs TMR technology, providing fault tolerance by incorporating three independent channels for each I/O point. This design ensures continuous operation even if one channel fails, minimizing downtime and data loss.
High Availability and Fault Tolerance
This backplane is designed to maintain system functionality in the event of hardware failures. It supports redundant power supplies and offers comprehensive diagnostics for rapid fault identification, enhancing overall system reliability.
Wide Compatibility and Scalability
The ICS TRIPLEX T9300 integrates seamlessly with various ICS TRIPLEX platforms and supports a broad range of I/O modules. It can be expanded using the T9310 expansion cable, allowing for additional rows of I/O base units.
Advanced Communication Protocols
The backplane supports multiple high-speed communication protocols, including Modbus RTU, EtherCAT, and Profinet, ensuring efficient data transmission and real-time performance.
Robust Design for Harsh Environments
Constructed with high-quality materials, the ICS TRIPLEX T9300 is rated for operation in a wide temperature range (-20°C to +60°C) and is suitable for deployment in harsh industrial conditions.
Typical Application Scenarios
The ICS TRIPLEX T9300 is widely used in industries where safety, reliability, and high availability are paramount, such as:
-
Oil & Gas: Ensuring stable control of critical processes in harsh environments.
-
Power Generation: Monitoring and controlling power systems to ensure stable operation.
-
Manufacturing: Optimizing automated production lines to improve efficiency and reduce costs.
-
Safety Control Systems: Detecting and addressing potential safety hazards in nuclear power plants and large chemical plants.
Related Model Recommendations
-
ICS TRIPLEX T9310-02: A 2-meter expansion cable for extending the system’s backplane.
-
ICS TRIPLEX T9451: A digital output module with high reliability and availability.
-
ICS TRIPLEX T9481: An analog output module with high precision and reliability.
-
ICS TRIPLEX T9100: A processor backplane module, providing a platform for integrating multiple ICS TRIPLEX modules.
-
ICS TRIPLEX T9432: An analog input module with high precision and reliability.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T9300, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (18-32 V DC) and that the operating temperature range (-20°C to +60°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T9300. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance, and ensure that spare parts are readily available to minimize downtime.
Service and Guarantee Commitment
The ICS TRIPLEX T9300 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries. We stand behind the quality of our products and are dedicated to ensuring reliable performance and timely support for our customers.
