Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T8850 |
| Manufacturer | ICS TRIPLEX |
| Product category | Field Termination Assembly (FTA) |
| Operating Voltage | 24 V DC |
| Number of Channels | 40 |
| Channel Type | Analog and Digital |
| Input/Output Configuration | 40x24V DC Outputs |
| Operating Temperature Range | -20°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Certifications | IEC 61131-3, UL, CE |
| Dimensions | 110 mm (H) × 360 mm (W) × 68 mm (D) |
| Weight | 0.95 kg |

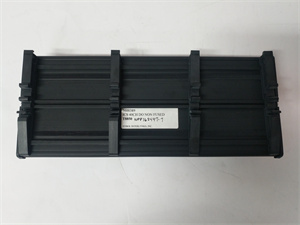

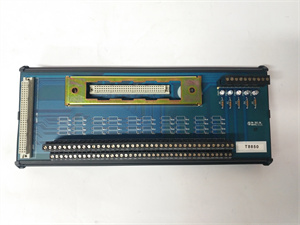

ICS TRIPLEX T8850
Product Introduction
The ICS TRIPLEX T8850 is a high-performance Field Termination Assembly (FTA) designed for critical industrial control applications. It acts as the main interface between field devices and the main control system, ensuring reliable and secure signal transmission. This module is part of the Trusted TMR (Triple Modular Redundant) system, providing high availability and fault tolerance. It supports both analog and digital signals, making it suitable for a wide range of industrial applications.
Core Advantages and Technical Highlights
High Reliability and Fault Tolerance
The ICS TRIPLEX T8850 employs a TMR architecture, ensuring high availability and fault tolerance. It features redundant components and communication paths, allowing seamless failover in case of a failure.
Advanced Signal Processing
This module supports 40 channels of analog and digital outputs, ensuring precise control and monitoring of industrial processes. It also features high-speed sampling rates, ensuring real-time processing of input signals and generation of accurate outputs.
Robust Design for Harsh Environments
Constructed with high-quality materials, the ICS TRIPLEX T8850 can operate reliably in extreme temperatures (-20°C to +70°C) and high humidity (5% to 95% non-condensing). Its compact design and standard DIN rail compatibility make it easy to install and integrate into existing systems.
User-Friendly and Versatile
The ICS TRIPLEX T8850 features a user-friendly interface and industry-standard connections, simplifying setup and configuration. It supports both analog and digital signals, making it suitable for diverse industrial applications.

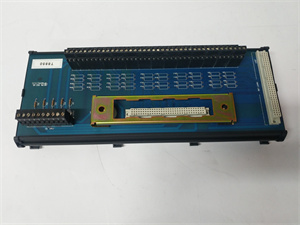

ICS TRIPLEX T8850
Typical Application Scenarios
The ICS TRIPLEX T8850 is widely used in industries where high reliability and safety are paramount, such as:
-
Oil & Gas: Ensuring reliable operation in production platforms.
-
Chemical Processing: Managing hazardous processes in chemical plants.
-
Power Generation: Monitoring and controlling critical parameters in power plants.
-
Manufacturing: Automating production lines to improve efficiency and product quality.
Related Model Recommendations
-
ICS TRIPLEX T8451: A digital output module with high reliability and availability.
-
ICS TRIPLEX T8480: An analog output module with high precision and reliability.
-
ICS TRIPLEX T8310: A 2-meter expansion cable for extending the system’s backplane.
-
ICS TRIPLEX T8403: A digital input module with high precision and reliability.
-
ICS TRIPLEX T8461: An analog input module with high precision and reliability.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T8850, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-20°C to +70°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T8850. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance and ensure that spare parts are readily available to minimize downtime.
Service and Guarantee Commitment
The ICS TRIPLEX T8850 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries. We stand behind the quality of our products and are dedicated to ensuring reliable performance and timely support for our customers.
