Description
Key Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ICS Triplex (affiliated to Rockwell Automation) |
| Core Function | Acquire speed and frequency signals from industrial sensors, convert analog inputs into digital data, and transmit them to the Trusted TMR system to realize real-time monitoring and feedback of equipment speed |
| Channel Configuration | 9 speed input channels, which are divided into three groups of three inputs to meet the speed monitoring needs of multiple groups of equipment at the same time |
| Physical Indicators | There are differences in the data released by different merchants. One set of data shows the dimensions are 330mm×218mm×63mm and the weight is about 0.8kg; another set shows the weight is about 2kg. It supports standard DIN rail installation for convenient layout in the control cabinet |
| Certifications | Complies with IEC 61508 SIL 3 standard and has TÜV certification, which meets the strict safety and reliability requirements of industrial control systems |
| Compatibility | It can be matched with multiple products of the same series such as T8442, T8800, and T8403, and can be smoothly integrated into the Rockwell ICS Triplex automation system |

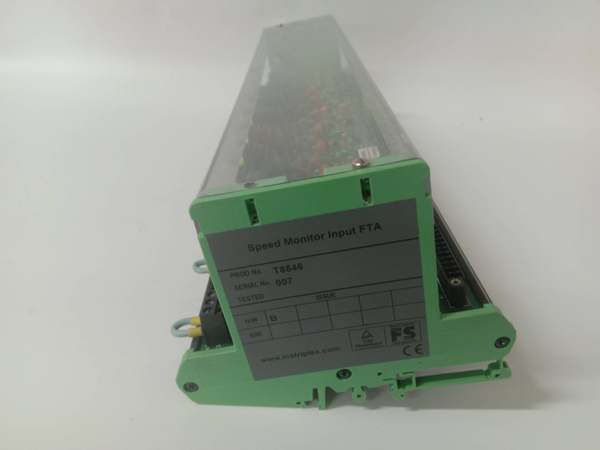

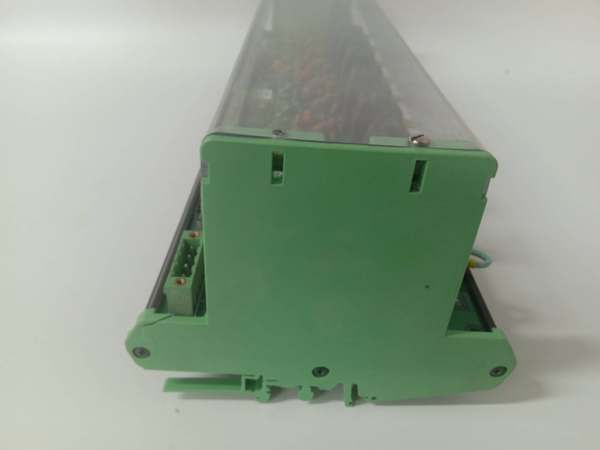

ICS Triplex T8846
Field Application & Problem Solved
The T8846 can effectively solve such problems. For example, in an oil pipeline transportation station, the module is connected to the speed sensor of the pipeline booster pump. Its 9-channel design can monitor the speed of multiple booster pumps at the same time. When the speed of a certain pump is too high or too low, the module can quickly collect the abnormal signal, convert it into digital data and transmit it to the T8442 speed monitoring system. The system will immediately send an alarm and trigger the adjustment of the frequency converter to stabilize the pump speed. In a chemical reaction workshop, it is used to monitor the speed of the stirring equipment in the reaction kettle. Its SIL 3 certification level ensures that the speed signal collection is accurate and reliable, avoiding the problem of uneven reaction of materials caused by inaccurate speed monitoring, and ensuring the stability of product quality.
Installation & Maintenance Pitfalls (Expert Tips)
- Improper Grouping of Input Channels: The 9 channels are divided into three groups of three. If the sensors of different types of equipment are randomly connected without grouping during installation, it will cause mutual interference of signals and affect the accuracy of speed measurement. It is necessary to group and wire according to the type of monitored equipment and the requirements of the system manual.
- Ignoring Compatibility with Matching Modules: The module needs to be used with the T8442 TMR speed monitoring system. If it is arbitrarily matched with other non-specialized speed control modules, it will lead to incompatible communication protocols and failure to transmit signals. It is necessary to confirm that the connected core control module is of the matching model.
- Rough Operation During DIN Rail Installation: Although it supports DIN rail installation, forced clamping during installation may damage the module shell and internal circuit connections. It should be aligned with the rail smoothly during installation, and the firmness should be checked after installation to avoid poor contact caused by loose installation.
- Neglecting Regular Calibration: In harsh industrial environments, long-term use may cause deviations in the module’s signal conversion accuracy. If regular calibration is ignored, it will lead to inaccurate speed monitoring. It is recommended to calibrate the module regularly according to the production cycle to ensure the accuracy of signal acquisition.

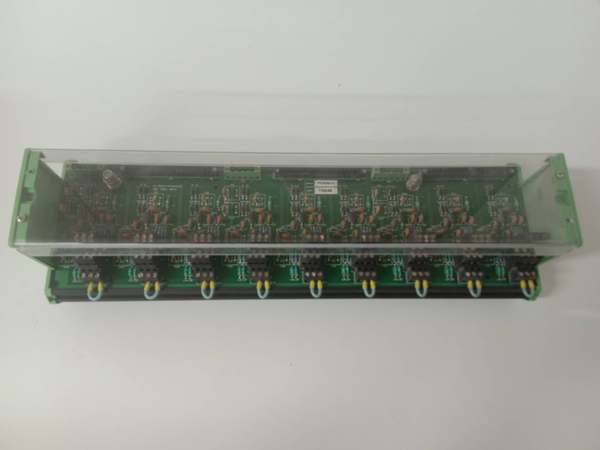

ICS Triplex T8846
Technical Deep Dive & Overview
In terms of safety and reliability, its compliance with the SIL 3 standard makes it competent for various high-risk industrial scenarios, which is crucial for avoiding safety accidents caused by speed abnormalities. In terms of system integration, it can be seamlessly connected with other modules of the Trusted series, which reduces the difficulty of system construction for enterprises. In addition, the module has a stable supply of original parts and a 12-month warranty service in the market, and its mature after-sales support can reduce the maintenance cost of enterprises during the later use process.
