Description
Key Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ICS Triplex |
| Electrical Parameters | Adopts dual 24VDC power supply, and each channel is equipped with a 50mA fuse to limit the current in the field circuit and ensure the safety of the circuit. It is suitable for common analog signal types such as 4 – 20mA current signals and 0 – 10V voltage signals in the industry. |
| Physical Indicators | The weight is about 0.6kg, and the size is 31.8×168×147mm. The compact design is compatible with standard DIN rail installation, which is convenient for integration into the control cabinet. |
| Environmental Adaptability | It is designed to adapt to harsh industrial environments, can operate stably under extreme temperature and high humidity conditions, and some sources indicate that it has an IP67 dustproof and waterproof rating, which can cope with complex on-site environmental challenges. |
| Safety & Compliance | It has obtained CE and UL certifications. The electrical isolation design between channels and the system, combined with the per-channel fused power supply, can effectively prevent circuit failures from spreading and ensure the safety and stability of the system during operation. |

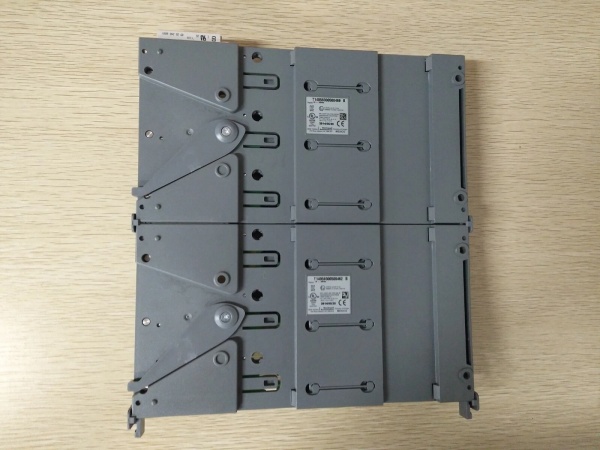

ICS Triplex T9831
Field Application & Problem Solved
For example, in an onshore oilfield’s oil transportation pipeline monitoring system, the T8830 is responsible for connecting multiple pressure and flow sensors along the pipeline with the T8431 core module. Its 40-channel design can meet the signal access needs of multiple sensors at the same time, and the 50mA fuse of each channel can avoid circuit burnout caused by abnormal current of individual sensors. In a thermal power plant’s boiler monitoring system, the module connects the temperature sensors at various parts of the boiler to the control system. The on-board LED indicator can let the staff intuitively check the power supply status. When a sensor circuit fails, the staff can quickly locate the fault point, avoid delays in troubleshooting, and ensure the stable operation of the boiler.
ICS Triplex T9831
Installation & Maintenance Pitfalls (Expert Tips)
- Improper Power Supply Connection: The module adopts dual 24VDC power supply which is connected in common through diodes. If the positive and negative poles are reversed during installation, or only a single power supply is connected, it may cause the module to fail to work normally or reduce reliability. It is necessary to strictly follow the manual to connect the dual power supply correctly.
- Neglecting Fuse Inspection: Although each channel is equipped with a fuse for protection, if the fuse is not checked regularly after long-term use, the fuse aging or damage may cause the channel to fail to collect signals. It is recommended to check the fuse status synchronously during routine maintenance.
- Incorrect DIN Rail Installation: The module relies on DIN rail installation. If the installation is not firm, the vibration of industrial equipment during operation may cause poor contact between the module and the rail. It is necessary to confirm that the module is clamped in place during installation to avoid loose connections.
- Ignoring Wiring Specifications: The module uses 2-wire wiring for field signals and is connected through terminal blocks. If the wiring is too long or the wire diameter is too small during installation, signal attenuation will be caused. It is necessary to select wires of appropriate specifications according to the on-site distance and follow the industry wiring standards.
