Description
Key Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ICS Triplex (affiliated to Rockwell Automation) |

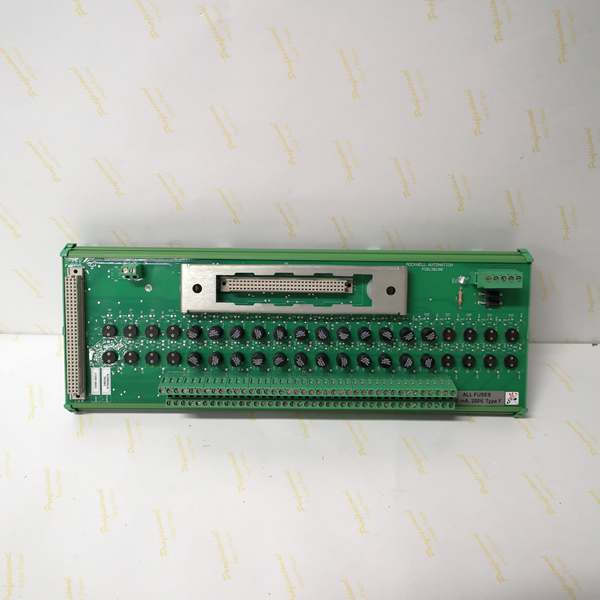

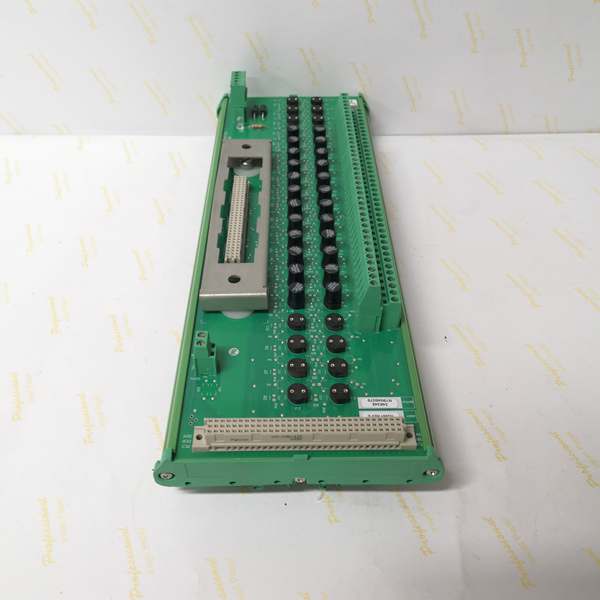

| Core Function | Acts as a bridge between field digital signal devices and the T8403 digital input module, realizing signal termination, stable transmission and power supply protection for field devices |
| Channel Configuration | 40 digital input channels, supporting 2-wire connection of industrial standard field devices |
| Power Supply | Adopts dual 24V DC power input, and the two power supplies are connected through diodes; each channel is equipped with a 50mA fuse to limit the current of the field loop and protect the circuit |
| Physical Indicators | There are differences in the data released by different merchants. One set of data shows the dimensions are 16cm×16cm×12cm and the weight is about 0.8kg; another set shows 112mm×112mm×68mm. It is compatible with standard DIN rails for easy installation |
| Environmental Adaptability | Different sources have slightly different data. The operating temperature is roughly between 0°C – 55°C and -20°C – 70°C; the storage temperature can reach -40°C – 85°C, which can adapt to most harsh industrial environments |
| Auxiliary Functions | Equipped with on-board LED indicators to display the integrity of the field power supply, which is convenient for staff to check the power supply status; the communication is compatible with SmartSlot connection and supports Modbus RTU protocol |
| Certifications | Has UL, CE and ISO 9001:2015 certifications, meeting international industrial quality and safety standards |

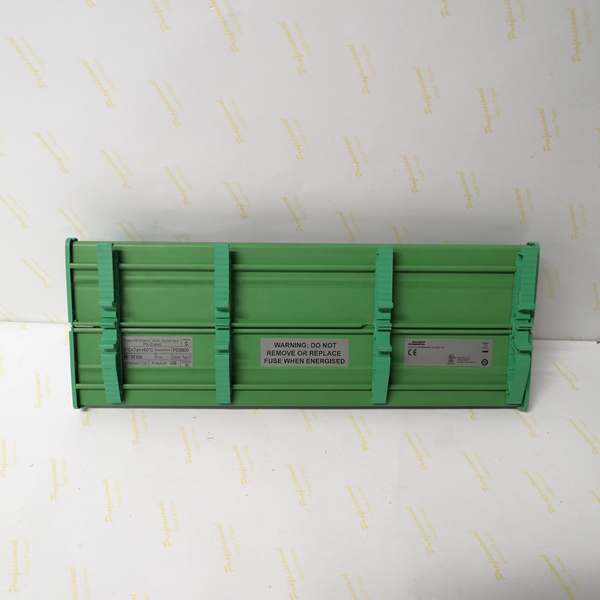

ICS TRIPLEX T8800
Field Application & Problem Solved
In large – scale industrial sites such as petrochemical plants and thermal power stations, a large number of sensors are needed to collect on – site switch status, equipment operation signals and other digital information. The signals of these scattered sensors need a stable termination and transmission component to connect to the core control module, otherwise problems such as signal loss, interference and circuit burnout due to excessive current are likely to occur.
The T8800 solves these problems well. For example, in a chemical processing plant, multiple temperature and pressure sensors installed on the reaction kettle and pipeline are connected to the T8800. The dual 24V DC power supply of the module ensures that the power supply will not be interrupted due to a single power failure. The 50mA fuse of each channel can prevent the circuit from being burned out when the sensor circuit is short – circuited. The module transmits the collected digital signals to the T8403 input module stably. Once the sensor detects abnormal data such as excessive reaction temperature, the signal can be quickly transmitted to the central controller through the T8800 to trigger an alarm or emergency control measures. In thermal power plants, it is used in the auxiliary equipment monitoring system. Its DIN rail installation method is convenient for centralized layout in the control cabinet, and the LED power supply indicator can help maintenance personnel quickly locate power supply faults, ensuring the stable operation of the monitoring system.
Installation & Maintenance Pitfalls (Expert Tips)
- Improper Power Supply Wiring: The module adopts dual 24V DC power input. If the wiring is reversed or the two power supplies are not connected correctly, it may lead to power supply failure or damage to the internal diodes. During installation, it is necessary to strictly distinguish the positive and negative poles of the power supply and follow the manual to complete the wiring of the dual power supplies.
- Ignoring Fuse Inspection and Replacement: Each channel is equipped with a 50mA fuse. After a short – circuit fault occurs in the field device, the fuse will be blown. If only the field fault is eliminated and the fuse is not replaced, the corresponding channel will not work normally. Regularly check the fuse status during maintenance and replace the fuse of the same specification in time when it is blown.
- Incorrect Connector Matching: The module uses 96 – way sockets SK1 and SK2 for signal connection. If the connecting cable does not match the socket specification or the insertion is not in place, it will cause poor signal contact. It is necessary to use cables that meet the specifications and confirm that the insertion is firm after wiring.
- Rough Operation During Hot Replacement: Although it supports hot replacement of input modules through SmartSlot, forced plugging and unplugging without following the operation steps will damage the SmartSlot connector. During hot replacement, it is necessary to follow the system prompt to cut off the corresponding channel signal first, and then perform the plugging and unplugging operation.
ICS TRIPLEX T8800
Technical Deep Dive & Overview
The T8800’s core value lies in providing a reliable signal termination and protection solution for the Trusted series TMR control system. Different from ordinary digital input modules, it is positioned as a field termination assembly, which focuses on solving the problems of signal integration, power supply stability and circuit protection between field devices and core input modules. The dual 24V DC power supply design with diode commutation ensures the continuity of the power supply, and the independent fuse of each channel realizes the independent protection of each signal loop, avoiding the overall failure caused by a single channel fault.
In terms of maintenance, its LED power supply indicator and hot – swap function greatly reduce the difficulty of fault diagnosis and module replacement, reducing the system downtime. In terms of system compatibility, it can be perfectly matched with the T8403 digital input module of the same series, and can also be integrated into the Rockwell industrial control system as a whole. In addition, its derivative model T8800C has the same core functions and can be used as an alternative in different stock scenarios, which improves the flexibility of the system for enterprises to configure components.
