Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T8403 |
| Manufacturer | ICS TRIPLEX |
| Product category | Digital Input Module |
| Operating Voltage | 24 V DC (18-30 V compatible) |
| Number of Inputs | 40 Channels |
| Input Voltage Range | 0V to 24V DC |
| Input Current | 2 mA per channel |
| Response Time | < 1 ms |
| SOE Resolution | 1 ms |
| Isolation | 2500 V impulse withstand opto/galvanic isolation barrier |
| Communication Protocols | Ethernet/IP, Modbus TCP, RS232, RS485 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -55°C to +85°C |
| Humidity Range | 0% to 95% RH (non-condensing) |
| Dimensions | 12.7 cm × 8.9 cm × 2.3 cm (5 in × 3.5 in × 0.9 in) |
| Weight | 340 g (12 oz) |
| Certifications | IEC 61508 SIL 3, CE, RoHS |

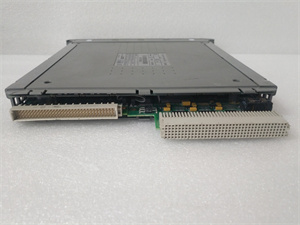

ICS TRIPLEX T8403
Product Introduction
The ICS TRIPLEX T8403 is a high-performance digital input module designed for critical industrial control applications. It features a Triple Modular Redundant (TMR) architecture, ensuring high reliability and fault tolerance. This module interfaces with 40 field input devices, providing comprehensive diagnostics and self-test capabilities.
Core Advantages and Technical Highlights
Triple Modular Redundancy (TMR)
The ICS TRIPLEX T8403 employs a TMR architecture, with three independent processing paths per input channel. This design ensures continuous operation even if one channel fails, enhancing system reliability.
Advanced Signal Processing
This module supports 40 digital input channels, each with optical isolation. It features a response time of <1 ms and Sequence of Events (SOE) reporting with a resolution of 1 ms, ensuring precise and timely control.
Robust Design for Harsh Environments
Constructed with high-quality materials, the ICS TRIPLEX T8403 can operate reliably in extreme temperatures (-40°C to +70°C) and high humidity (0% to 95% RH non-condensing). Its compact design and lightweight construction make it easy to install and integrate into existing systems.
Comprehensive Diagnostics
The module includes onboard diagnostics for detecting faults such as open circuits, short circuits, and overrange conditions. It also provides real-time monitoring of module status and performance to ensure reliable operation.
Hot-Swappable Design
The ICS TRIPLEX T8403 supports hot-swapping, allowing modules to be replaced or maintained without disrupting system operation. This feature minimizes downtime and enhances maintenance efficiency.
ICS TRIPLEX T8403
Typical Application Scenarios
The ICS TRIPLEX T8403 is widely used in industries where high reliability and safety are paramount, such as:
-
Oil & Gas: Monitoring and controlling critical processes in refineries and drilling operations.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Chemical Processing: Process control in reactors, mixers, and separation units.
-
Manufacturing: Automation control systems for production lines and robotic interfaces.
Related Model Recommendations
-
ICS TRIPLEX T8451: A digital output module with high reliability and availability.
-
ICS TRIPLEX T8480C: An analog output module with high precision and reliability.
-
ICS TRIPLEX T8310: An expansion cable for extending the system’s backplane.
-
ICS TRIPLEX T8432: An analog input module with high precision and reliability.
-
ICS TRIPLEX T8449: A valve monitor module with high precision and reliability.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T8403, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-40°C to +70°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T8403. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance and ensure that spare parts are readily available to minimize downtime.
Service and Guarantee Commitment
The ICS TRIPLEX T8403 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries. We stand behind the quality of our products and are dedicated to ensuring reliable performance and timely support for our customers.
