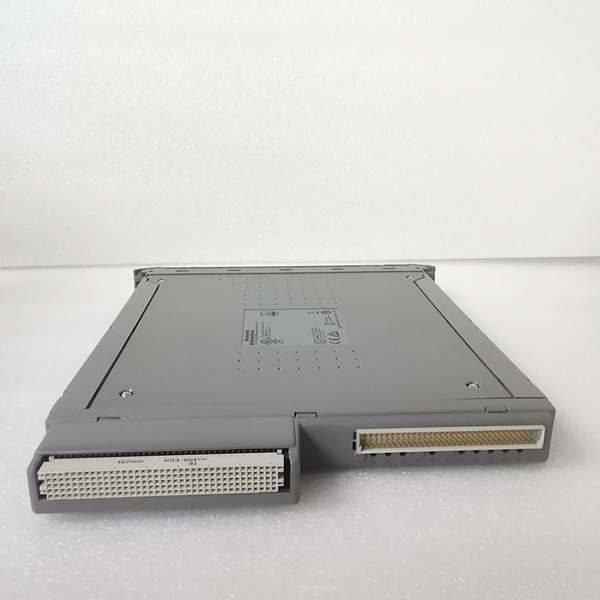

ICS Triplex T8312 | TMR Expander Interface Adapter for Industrial Control Systems

Item Details
Model T8312
Series ICS Triplex Trusted Series
Type TMR expander interface adapter unit
Key Feature Adopts TMR technology, supports Modbus TCP/IP and Modbus RTU protocols, hot standby capability, integrated diagnostics and fault detection, EMC shielding, connects up to 4 expander chassis
Primary Use Expand I/O capacity for safety-critical control systems in oil and gas, power generation, chemical processing industries
Warranty 12-month warranty for new original products
Get a Quote
In Stock
Manufacturer:
Part number: ICS Triplex T8312
Our extensive catalogue, including : ICS Triplex T8312 , is available now for dispatch to the worldwide. Brand:

Description

Key Technical Specifications

  • Connection Capability: It can realize the interconnection between the controller chassis and up to 4 expander chassis. The T8312-4 version is equipped with four 12-pin ODU connectors for connecting the expander chassis and a 96-way C-type connector for connecting to the expander interface module in the controller chassis. It can be clipped on the rear connector of the controller chassis and disassembled by pressing the release button.
  • Communication & Redundancy: It supports Modbus TCP/IP and Modbus RTU communication protocols, which can be seamlessly integrated with different automation systems. The TMR architecture enables the system to continue operating even if components fail. Its hot standby function can realize automatic or manual recovery without causing system downtime, ensuring continuous operation.
  • Physical & Power Parameters: The typical power input is 24V DC, and the power consumption of the T8312-4 version is 6W. The weight of the common version is about 0.6kg, and the size of the T8312-4 is 31.8mm×168mm×147mm. It has a metal shell, which is compact and easy to install on DIN rails or chassis.
  • Environmental & Certification Traits: It has CE and UL certifications. The operating temperature range is -40°C to 70°C, and the storage temperature can reach -40°C to 85°C. It can adapt to 5%-95% non-condensing humidity environment. The fully shielded design meets the industrial EMC standard and can resist electromagnetic interference in complex industrial environments.
    ICS Triplex PS01-B

    ICS Triplex PS01-B

Field Application & Problem Solved

The T8312 is a key component in large-scale industrial control systems that need to expand I/O capacity. In oil refineries, the control system needs to monitor multiple sets of equipment such as distillation towers and pipelines at the same time. The original controller chassis has limited I/O interfaces and cannot connect all sensors and control equipment. The T8312 can connect 4 expander chassis at the same time to expand the I/O capacity, which avoids the cumbersome problem of replacing the high-interface controller and reduces the transformation cost.

In thermal power plants, the stability of the control system directly affects the power supply security. The T8312’s TMR redundancy and hot standby capabilities can avoid system paralysis caused by single component failure. Even if a communication link or internal component fails, the system can quickly switch to the standby state, preventing power outages caused by control system failures.

Installation & Maintenance Pitfalls (Expert Tips)

  1. Connector Matching Check: When connecting the 96-way C-type connector and 12-pin ODU connector, ensure that the connectors are fully inserted. Loose connections will lead to intermittent communication interruptions. It is recommended to check the clamping state after installation and use special tools to confirm that the connectors are locked in place.
  2. Chassis ID Configuration: The chassis ID needs to be set through the DIP switch during installation. The controller chassis ID should be set to 1, and the expander chassis ID should be set to 2 – 8 for the first group. If additional chassis are added, the ID should be set to 9 – 15 through software. Confusing ID settings will cause communication conflicts between multiple chassis.
  3. Environmental Adaptation Control: Although it can work in the environment of -40°C to 70°C, it should avoid installing it in areas with large temperature fluctuations and condensation, such as near the exhaust port of high-temperature equipment or the wet area of chemical plants. Condensation may corrode the internal circuit board and affect the service life of the module.
  4. Regular Diagnostic Monitoring: It has an integrated diagnostic function. During daily maintenance, professional software should be used to check the fault detection records regularly. Focus on monitoring the communication link stability and power supply status. Timely handle the early warning information to avoid small faults evolving into system communication failures.
    ICS Triplex PS01-B

    ICS Triplex PS01-B

Technical Deep Dive & Overview

The core value of the ICS Triplex T8312 lies in solving the problem of I/O capacity expansion of the Trusted control system while ensuring safety and reliability. In large-scale industrial control scenarios, the I/O demand of the system often increases with the expansion of production scale. The traditional way of adding independent controllers not only costs a lot but also has compatibility risks.

The T8312 realizes the efficient expansion of the expander chassis through a single adapter, which not only simplifies the system structure but also relies on the TMR technology to maintain the fault-tolerant performance of the original system. Its support for multiple Modbus protocols breaks the communication barriers between different modules, and the EMC shielding design ensures that the module can maintain stable signal transmission in the complex electromagnetic environment of industrial sites. For safety-critical industries, this kind of adapter that balances scalability and stability is an important guarantee for the continuous and stable operation of the production process.
