Description
Key Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ICS Triplex (affiliated to Rockwell Automation) |
| Core Function | Establishes reliable communication links between expander interface modules in the controller chassis and processor interface modules in the expander chassis, realizing seamless data transmission |
| Connection Capacity | Supports connecting up to 4 expander chassis to a single controller chassis |
| Connectors | Equipped with four 12 – pin ODU connectors for connecting expander chassis, and a 96 – way C – type connector for interfacing with the controller chassis |
| Physical Specifications | Dimensions are 31.8mm (height) × 168mm (width) × 147mm (depth); weight is about 0.6kg; adopts a metal enclosure structure and can be clipped onto the rear connector of the controller chassis |
| Power Supply | 24V DC power supply, with a power consumption of about 6W |
| Environmental Adaptability | Operating temperature ranges from – 40°C to 70°C; storage temperature ranges from – 40°C to 85°C; can work normally in an environment with 5% – 95% non – condensing humidity |
| Certifications | Has ordinary location certification and hazloc/ATEX/IECEx certifications, meeting the use requirements of hazardous industrial sites |

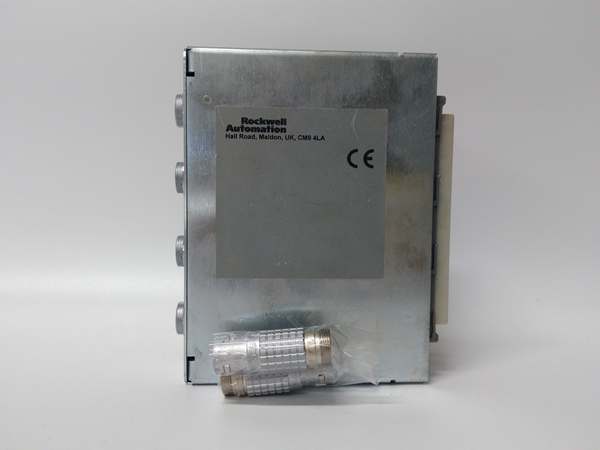

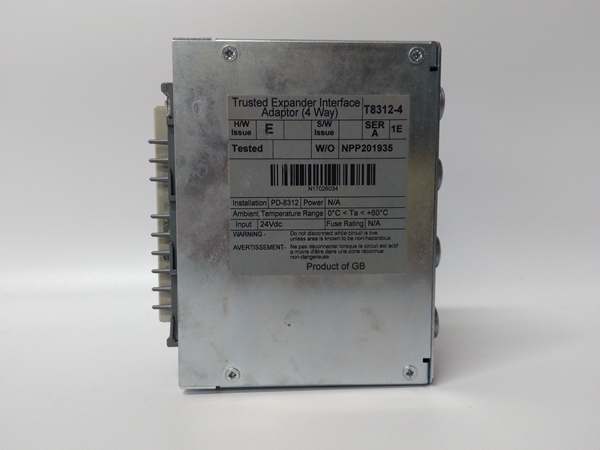

ICS TRIPLEX T8312 – 4
Field Application & Problem Solved
The T8312 – 4 solves this pain point well. In a large oil refinery, it connects 4 expander chassis responsible for monitoring pipeline temperature, pressure and flow to the central controller chassis. When the sensors on each expander chassis collect data, the module can stably transmit the data to the controller, and the controller can also send control instructions to each expander chassis in time to realize the coordinated control of the entire oil transportation pipeline. In chemical processing plants, it is applied to the emergency shutdown system. Even in harsh environments with large temperature fluctuations and high humidity, it can maintain reliable communication between the controller and multiple expander chassis, ensuring that once an abnormal situation occurs, the system can receive signals and execute shutdown instructions quickly.
Installation & Maintenance Pitfalls (Expert Tips)
- Incorrect DIP Switch Settings: When configuring the module, if the DIP switch of the controller chassis is not set to position #1, it may cause communication failure between the module and the controller. It is necessary to strictly follow the operation manual to set the DIP switch and assign expander chassis IDs from 2 to 8 to ensure the correctness of the system configuration.
- Improper Fixing of the Module: The module is clipped onto the rear connector of the controller chassis. If the clipping is not firm, the module may loosen due to industrial site vibration, resulting in poor contact. After installation, it is necessary to check whether the module is tightly clamped, and regularly re – inspect during daily maintenance.
- Rough Operation During Disconnection: The module is equipped with a special release button for disconnection. If you force to pull the module without pressing the release button, the connector pins may be damaged. It must be operated in accordance with the specified steps, and the release button should be pressed first before disconnecting the module.
- Neglecting Connector Protection: The 12 – pin ODU connectors and 96 – way C – type connector are core communication parts. In dusty or corrosive industrial environments, if no protective measures are taken, dust or corrosive substances will accumulate on the connectors. It is necessary to clean the connectors regularly and cover them with protective caps when the module is not in use.

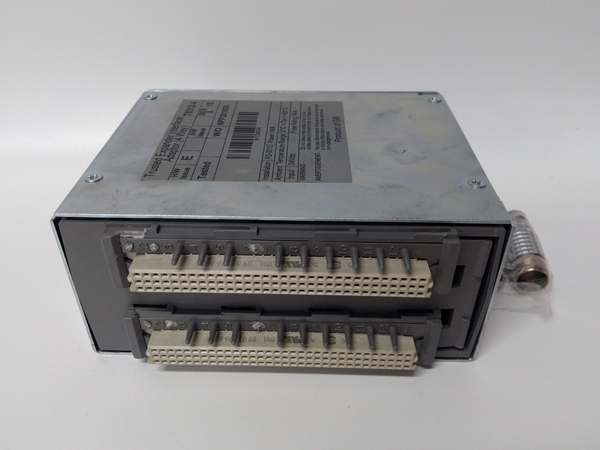

ICS TRIPLEX T8312 – 4
Technical Deep Dive & Overview
In terms of structural design, its compact size and clip – on installation method save installation space and simplify the installation process. The matching release button also improves the convenience of later maintenance and replacement. In terms of system compatibility, it can be perfectly integrated with other modules of the Trusted series. When the enterprise needs to further expand the system scale (connect more than 4 expander chassis), it can be used in combination with other models of the T8312 series such as T8312 – 7, which greatly improves the scalability of the entire control system and reduces the cost of system transformation for the enterprise.
