Description

Key Technical Specifications

Superior Fault Tolerance and Stability: The module uses TMR triple modular redundancy architecture. Even if one or two internal processors fail, the system can still maintain continuous operation. It is also equipped with a special hardware and software testing mechanism, which can quickly identify and respond to faults. With the standby module configuration, it supports both automatic and manual repair strategies, avoiding production interruptions caused by module faults.
Efficient Data Transmission and Connection Performance: It has an excellent data transmission capability with a transmission rate of 250Mbps, which can meet the high-speed data exchange needs between the expander chassis and the controller chassis in complex industrial control systems. It is connected with related components through TC – 301 communication cables and T8312 expander interface adapters, ensuring the stability and reliability of the communication link during data transmission.
Intuitive Status Monitoring: It is configured with multiple groups of LED indicators for comprehensive status monitoring. Three LEDs are used to indicate the health status of the module, where green represents normal operation and red indicates a fault. The active/standby status is also displayed by green LEDs, and the communication status is indicated by three LEDs in green, red and amber, allowing staff to quickly grasp the module’s operation situation.

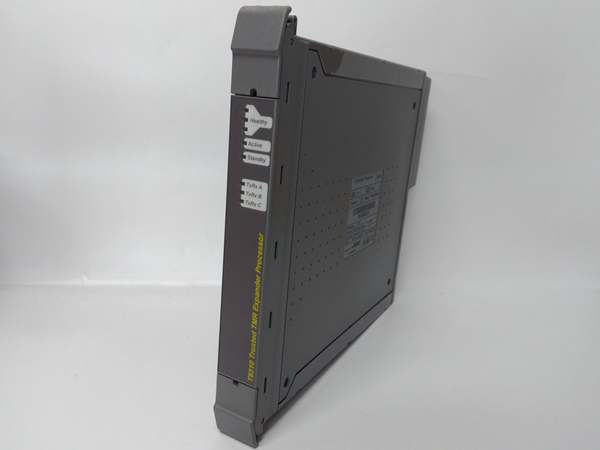

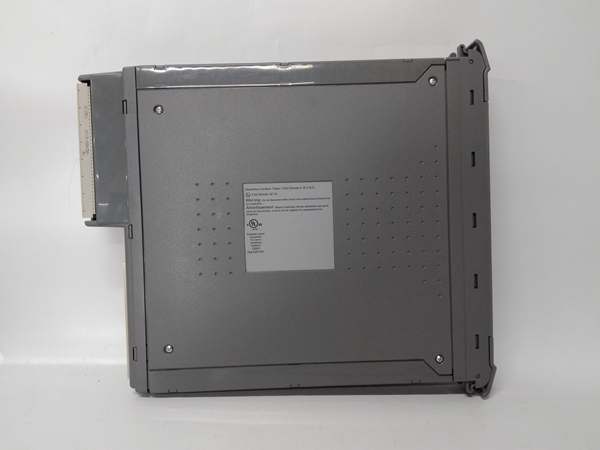

ICS Triplex T8310

Oil and Gas Drilling Control System: In oil and gas drilling sites, the control system needs to coordinate the operation of multiple devices and timely transmit a large amount of drilling data such as stratum pressure and drill bit speed. The T8310 module connects the expander chassis and the controller chassis of the drilling control system. Its TMR architecture can avoid data transmission interruption caused by single-point faults. The 250Mbps high transmission rate ensures that the drilling data is transmitted to the control center in real time, preventing accidents such as well collapse due to delayed data feedback.
Chemical Production Line Process Control: In chemical production lines, various reaction kettles, pipelines and other equipment are involved, and the control system needs to integrate and process data from multiple links. The T8310 module solves the problem of poor compatibility between different chassis in the traditional control system. It realizes seamless connection and stable communication between the expander and the controller chassis. Even in the harsh chemical production environment with strong corrosion and strong interference, it can ensure the accurate transmission of control signals and avoid production quality problems or safety accidents caused by signal loss.

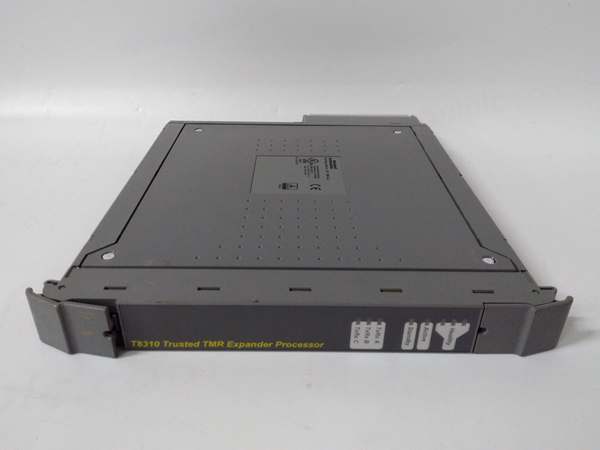

ICS Triplex T8310

Standardize Cable Connection Operations: The module must use the matching TC – 301 communication cable and T8312 expander interface adapter for connection. Do not use non – standard cables or adapters to replace them. Otherwise, it will not only reduce the data transmission rate, but also may lead to communication failures. When connecting, ensure that the cable interface is firmly inserted to prevent poor contact caused by vibration during equipment operation.
Pay Attention to Installation Position Requirements: The module needs to be installed in the two leftmost processor slots of the expander chassis. Randomly changing the installation slot may lead to incompatibility with the chassis backplane, making the module unable to obtain power normally or communicate with other components.
Do a Good Job in Regular Fault Diagnosis: Although the module has an automatic fault handling function, it is still necessary for staff to regularly check the LED indicators. When a fault indicator is on, use professional diagnostic tools to further locate the fault cause. At the same time, regularly detect the standby module to ensure that it can be switched quickly and normally when the main module fails.

Item	Details
Model	T8310
Series	ICS Triplex Trusted Series
Type	Expander processor module
Key Feature	Adopts HIFT TMR triple modular redundancy architecture; data transfer rate up to 250Mbps; powered by dual redundant +24VDC from the expander chassis backplane; operating temperature range -40°C to +70°C; equipped with multiple LED indicators for working status monitoring; connected via TC – 301 hot – link cable and T8312 expander interface adapter; supports automatic and manual repair strategies with standby module configuration.
Primary Use	Widely used in oil and gas, chemical, power, pharmaceutical and other industries. It is applied in drilling control, chemical reaction process control, power plant monitoring and other systems to realize the connection and data transmission between the expander and the controller chassis, ensuring the stable operation of the whole industrial control system.
Warranty	New original products are generally provided with a 12-month warranty.
