Parameter Details Electrical Parameters It gets power supply from the Trusted TMR processor, with a power consumption of only 0.1W. The isolation between the rear serial port, IRIG port, relay port and the chassis can reach 50V continuous enhanced level and 250V basic fault level, and has passed the type test of 2436V DC for 60 seconds. There is no built – in fuse device. Communication Ports It is configured with three RS422/485 ports. Port 1 is a 2 – wire RS422/485 port, and ports 2 and 3 are RS422/485 ports that can be flexibly set to 2 – wire or 4 – wire modes, which can meet the connection needs of different external communication devices. Physical & Environmental Indicators Its size is 138mm × 120mm × 108mm, and its weight is about 877g. The operating temperature range is 0°C – 60°C, the storage temperature is -25°C – 70°C, and it can work normally in an environment with 10% – 95% non – condensing relative humidity.

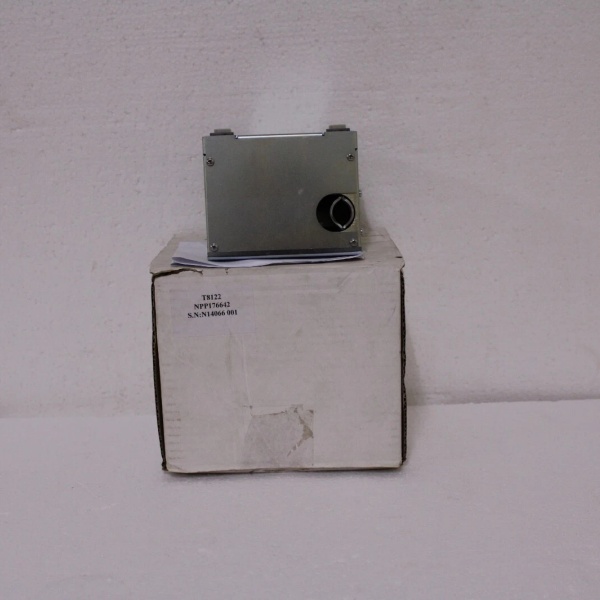

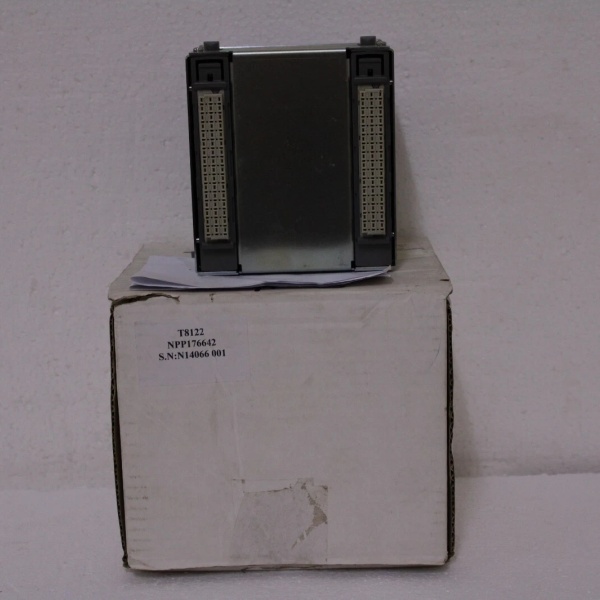

ICS Triplex T8122
-
Field Application & Problem Solved
In industries such as oil and gas, chemical industry and electric power that require high – reliability control systems, the communication between the core processor of the TMR system and external equipment is crucial. Once the communication is interrupted or the signal is distorted, it may lead to the control system’s failure to obtain on – site data or issue incorrect control commands, thus triggering safety accidents. The T8122 can well solve such communication bottleneck problems. For example, in a large chemical plant’s distributed control system, the T8122 is connected to the T8110B processor. It serves as a Modbus master to connect multiple on – site detection instruments and actuators through RS422/485 ports. It not only collects the operating parameters of the instruments in real time and transmits them to the processor, but also sends the processor’s control instructions to the actuators accurately. At the same time, its power supply shutdown monitoring and processor fault monitoring functions can timely feed back abnormal information, which is convenient for staff to deal with problems quickly and avoid production suspension or safety hazards.
ICS Triplex T8122
-
Installation & Maintenance Pitfalls (Expert Tips)
- Incorrect Port Configuration: Ports 2 and 3 support both 2 – wire and 4 – wire configurations of RS422/485. If the wiring mode is not configured according to the requirements of external connected equipment during installation, communication failure will occur. It is necessary to confirm the communication wiring standard of the external equipment first and then configure the ports correspondingly.
- Unfirm Chassis Connection: The module is directly connected to the rear of the controller chassis. If the connection is not firm, poor contact may occur due to industrial on – site vibration. After installation, it is necessary to check the connection tightness and reinforce it if necessary.
- Neglecting Diagnostic Port Utilization: The module is equipped with a processor diagnostic connector. If the diagnostic function is not used during daily maintenance, it is difficult to find potential faults of the processor in time. Regularly connecting diagnostic equipment through this port for detection can effectively predict and prevent system failures.
