Description
Key Technical & Structural Features
- Dual Safety Configuration & TMR Redundancy: The module supports two configurations: fail-safe single module (1oo1) and fault-tolerant dual module (2oo2). It is also designed with a triple modular redundancy (TMR) structure and a triple safety bus interface, which can achieve fail-safe operation even when a single component fails, fully meeting the safety requirements of critical industrial systems.
- 16-Channel Monitoring with Fault Detection: It is equipped with 16 monitored output channels divided into two groups of eight. It can monitor field wiring in real time to detect open and short-circuit faults promptly. At the same time, it can automatically test all output circuits, and the dynamic transition monitoring of the output ensures the accuracy and reliability of signal transmission.
- Convenient Maintenance & Status Visualization: The module supports hot replacement, which allows users to replace it without shutting down the system, minimizing downtime. Its fuses are accessible from the front panel, and there are individual indicators on the front panel for module faults, active status, shutdown state and output status, enabling maintenance personnel to quickly locate problems.
- Strong Environmental Adaptability: It can work stably in the temperature range of 0 – 60°C, and can also adapt to harsh industrial environments with large temperature differences during storage (-40 – 85°C). In addition, it can operate normally in high-humidity environments (5%-95% non-condensing) and medium and high-altitude areas within 2000m, which is suitable for various complex industrial sites.

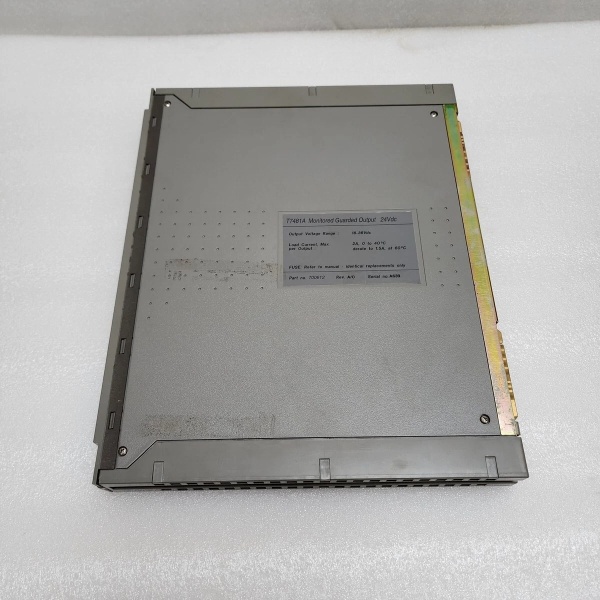

ICS Triplex T7481A
Field Application & Problem Solved
The T7481A module solves these pain points well. For example, in a chemical plant’s reactor emergency shutdown system, the module’s 16 channels can connect to multiple emergency cutoff valves. When the field wiring has an open circuit or short circuit, the module can quickly detect the fault and feed back the information to the control center. Its hot-replacement feature allows maintenance personnel to replace the module without stopping the reactor’s standby operation, ensuring continuous production. In a thermal power plant’s boiler safety control system, its SIL 3 certification and TMR redundancy design can ensure that the output signal will not be interrupted due to module failures, avoiding boiler explosion and other dangerous situations caused by control signal loss.
Installation & Maintenance Pitfalls (Expert Tips)
- Ignoring Current Derating at High Temperatures: The maximum load current of the module is 2A only when the ambient temperature is 0 – 40°C. If it is used in a high-temperature environment such as near a boiler (up to 60°C), the current must be derated to 1.5A. Exceeding the derated current will cause overheating and damage the module. It is recommended to install a temperature sensor near the module to monitor the temperature in real time.
- Improper Configuration of Working Modes: The module has two working modes: single module and dual module. If the fault-tolerant dual-module (2oo2) configuration is mistakenly used in a simple control scenario, it will cause resource waste; if the single-module configuration is used in a high-risk scenario, the safety redundancy will be insufficient. It is necessary to select the appropriate configuration according to the safety level requirements of the application scenario.
- Rough Operation During Hot-Swapping: Although the module supports hot replacement, plugging and unplugging during the peak period of signal output may cause transient signal interruption. It is best to perform hot-swapping operations during the low-load period of the system, and check whether the module is firmly installed and the indicator light is normal after replacement.
- Neglecting Fuse Inspection: The module’s fuses are installed on the front panel for easy maintenance. However, if the fuses are not regularly inspected, the module may fail to protect the circuit when overcurrent occurs. It is recommended to check the fuse status regularly during routine maintenance and prepare spare fuses of the same specification.

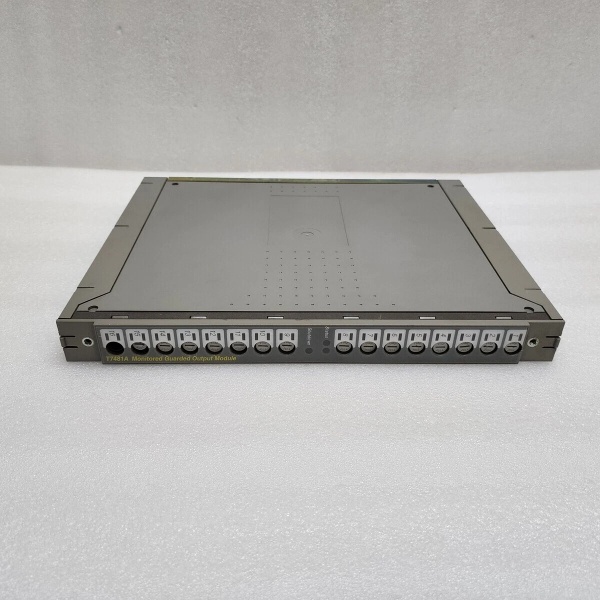

ICS Triplex T7481A
Product Positioning & Advantages
In addition, its hot-replaceable design and front-panel accessible fuses greatly reduce maintenance difficulty and downtime. For industrial enterprises that pursue high safety and stable operation, this module can effectively improve the reliability of safety control systems and reduce the risk of production accidents, which is an important supporting component in industrial automation safety control.
