Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | Honeywell USI-0002 |
| Manufacturer | Honeywell |
| Product Category | Universal Signal Interface |
| Input Types | 8 channels configurable for: 4-20mA, 0-10V, RTD, TC |
| Output Types | 4 channels configurable for: 4-20mA, 0-10V |
| Resolution | 16-bit (0.0015% of span) |
| Accuracy | ±0.05% of reading ±0.01% of span |
| Update Rate | 10ms per channel |
| Isolation | 1500V channel-to-channel |
| Power Supply | 24V DC ±10% |
| Power Consumption | 5W typical |
| Operating Temp | -20°C to +60°C |
| Communication | Modbus RTU/ASCII, Ethernet/IP |
| Certifications | UL, CE, IEC 61010-1 |

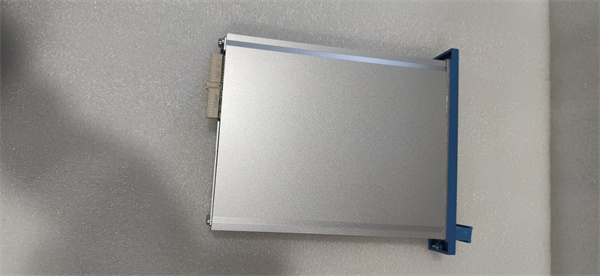

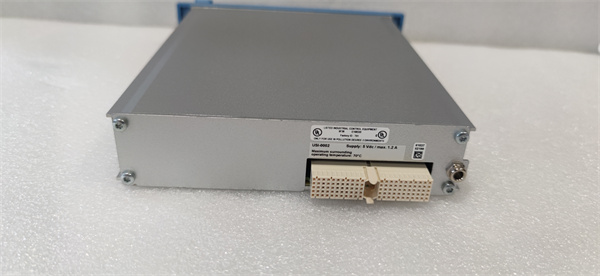

HONEYWELL USI-0002
Product Introduction
The Honeywell USI-0002 is a versatile signal conditioning interface designed for industrial process control applications. This compact yet powerful unit serves as a universal translator between field instruments and control systems, supporting multiple signal types across its configurable channels.
As part of Honeywell’s Universal Signal Interface series, the Honeywell USI-0002 simplifies system integration by eliminating the need for multiple specialized I/O modules. Its intelligent design automatically recognizes connected sensor types and applies appropriate signal conditioning, reducing configuration time and potential errors.
Engineered for reliability in industrial environments, the Honeywell USI-0002 features robust electrical isolation and noise immunity, making it suitable for installation in electrically noisy areas near motors and variable frequency drives.
Core Advantages and Technical Highlights
Universal Signal Handling:
Each of the 8 input channels automatically adapts to connect directly with thermocouples, RTDs, current (4-20mA), or voltage (0-10V) signals without hardware changes.
Advanced Diagnostics:
Continuous monitoring of field wiring integrity with detection of open circuits, short circuits, and signal degradation, providing early warning of potential issues.
Flexible Configuration:
Intuitive web interface and DIP switches allow quick setup without specialized software tools, while maintaining the option for detailed configuration via Modbus commands.
Space-Saving Design:
Compact DIN-rail mounting (35mm) with high channel density reduces panel space requirements by up to 60% compared to traditional solutions.
Cybersecurity Ready:
Secure boot functionality and authenticated configuration changes protect against unauthorized access in networked installations.
Energy Efficient:
Low power consumption with intelligent power management reduces heat generation in control cabinets.

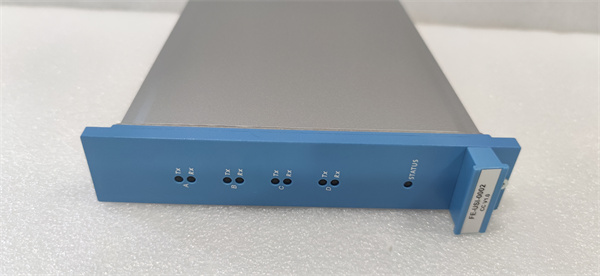

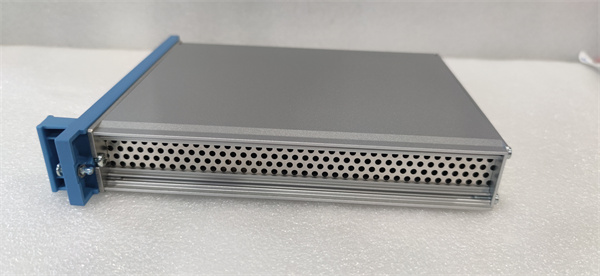

HONEYWELL USI-0002
Typical Application Scenarios
HVAC Control Systems:
Interface between building management systems and diverse sensors (temperature, pressure, airflow) in large commercial facilities.
Water Treatment Plants:
Signal conditioning for pH, ORP, and conductivity sensors in chemical dosing control loops.
Food Processing:
Temperature monitoring at multiple points in pasteurization and sterilization processes.
Pharmaceutical Manufacturing:
Precise signal conditioning for critical process measurements in cleanroom environments.
Oil & Gas:
Field instrument interface in remote wellhead monitoring applications.
Related Model Recommendations
Honeywell USI-0004 – Higher density 16-channel version
Honeywell USI-0001 – Basic 4-channel version
Honeywell USI-COM – Communication gateway add-on
Honeywell USI-PS – Redundant power supply module
Honeywell STT850 – Smart temperature transmitter
Honeywell SPT25 – Smart pressure transmitter
Honeywell UMC800 – Universal process controller
Installation, Commissioning and Maintenance
Installation Guidelines:
Mount the Honeywell USI-0002 vertically on standard DIN rail (35mm) in a well-ventilated area. Maintain minimum 25mm clearance on sides for heat dissipation. Use shielded cables for all field connections with proper grounding.
Commissioning:
Set channel configuration via DIP switches or web interface
Verify automatic sensor recognition
Test signal scaling and linearity
Configure alarm thresholds
Validate communication with host system
Maintenance:
Annual calibration verification
Quarterly inspection of terminal connections
Biannual firmware updates
Periodic cleaning of ventilation slots
Replacement after 10 years of continuous service
Service and Guarantee Commitment
Honeywell provides a 36-month warranty for the USI-0002, including:
24/7 technical support
On-site troubleshooting (4-hour response for critical systems)
Firmware update services
Repair and recalibration options
Preventive maintenance contracts
