Honeywell SDO – 0824 Product Description
1. Product Overview
The Honeywell SDO – 0824 is a high – performance digital output module, precisely engineered to meet the exacting demands of industrial automation and control systems. As a pivotal component, it efficiently transmits digital output signals to drive a wide variety of field devices, playing a crucial role in translating control commands from the central system into actionable operations in the industrial field. Compatible with both Honeywell’s safety – related systems and general – purpose industrial control setups, this module ensures seamless and reliable control over industrial processes, contributing to enhanced productivity and safety.
2. Detailed Parameter Table
Parameter Name | Parameter Value |
Product Model | SDO – 0824 |
Manufacturer | Honeywell |
Product Category | Digital Output Module |
Number of Output Channels | 8 |
Power Supply | 5 VDC (25 mA), 24 VDC (Internal: 25 mA, External: 70 mA without output load) |
Output Voltage | 24 VDC solid – state source |
Maximum Current | 550 mA (Limited to 350 mA at 70 °C) |
Maximum Lamp Load | 120 mA (2.9 W) |
Maximum Load Capacitance | 1 μF |
Voltage Drop | < 2.0 VDC at 500 mA |
Off Current | < 0.1 mA |
WDG Input Current | 8 mA |
Module Code | Holes A9, C9 |
Chassis Code | Large Pins A9, C9 |
Operating Temperature Range | – 40 °C to + 70 °C |
Storage Temperature Range | – 55 °C to + 85 °C |
Humidity | 0% – 95% non – condensing |
Enclosure Rating | IP20 |
Dimensions (approx.) | 6 cm x 7 cm x 5.8 cm |
Weight | 0.2 kg |
Approvals | CE, TÜV, UL, CSA, FM |
Space Requirements | 4 TE, 3 HE (equivalent to 4 HP, 3 U) |

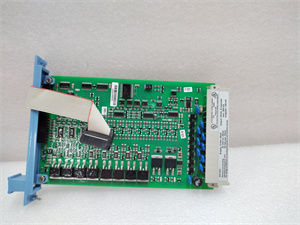

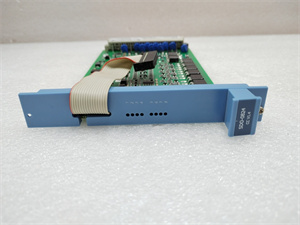

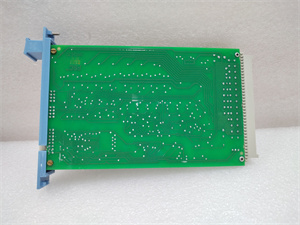

Honeywell SDO-0824
3. Product Introduction
The SDO – 0824 is designed with a focus on high – performance output capabilities, reliability, and ease of integration. Its 8 digital output channels are sufficient to drive a range of field devices such as solenoid valves, contactors, and indicator lamps. The solid – state output design, which is short – circuit proof, ensures long – term stable operation even in harsh industrial environments with potential electrical faults.
Featuring a universal snap – in mechanism for standard DIN EN rails, the module simplifies installation. The screw terminals for connecting field wiring are designed for easy and secure connections, reducing installation time and minimizing the risk of wiring errors. This design not only enhances installation efficiency but also simplifies maintenance and troubleshooting procedures.
4. Core Advantages and Technical Highlights
4.1 High – Density Output Channels
With 8 digital output channels, the SDO – 0824 offers a high – density solution for industrial control systems. This allows for the connection of multiple field devices to a single module, reducing the overall footprint and complexity of the control system. In large – scale industrial plants where space is often at a premium, this high – density design can significantly optimize the control cabinet layout.
4.2 Robust Power Handling
The SDO – 0824 is designed to handle power requirements efficiently. It operates on a combination of 5 VDC and 24 VDC power supplies. The 24 VDC power is used for the output circuitry, with separate internal and external current ratings to ensure stable operation. The power supply design is also robust enough to handle voltage fluctuations within the specified range, making it suitable for use in industrial settings where power quality may vary.
4.3 Galvanic Isolation
Galvanic isolation is a key feature of the SDO – 0824. It ensures isolation between the control system and the field devices, protecting the system from electrical interference and potential damage. This isolation is crucial in industrial environments where electrical noise and voltage spikes are common. By preventing these disturbances from reaching the control system, the SDO – 0824 helps to maintain the integrity of the output signals and the overall reliability of the control system.
4.4 Fault Detection and Diagnostics
The module is equipped with advanced fault – detection and diagnostic capabilities. It can continuously monitor the status of each output channel, detecting faults such as short circuits, open circuits, and incorrect voltage levels. In the event of a fault, the module can provide detailed diagnostic information, which is invaluable for troubleshooting and maintenance. This proactive approach to fault management helps to minimize downtime and improve the overall availability of the industrial process.
4.5 High – Quality Construction and Protection
The SDO – 0824 is constructed with high – quality materials and has an IP20 enclosure rating. While it is mainly designed for indoor use, it provides a certain level of protection against dust and accidental contact. The rugged construction and protection features ensure that the module can withstand the rigors of industrial use, including vibrations and shocks.
5. Typical Application Scenarios
5.1 Process Control Systems
In chemical, pharmaceutical, and food processing plants, the SDO – 0824 is used to control the operation of various process equipment. It can drive solenoid valves to control the flow of liquids or gases, contactors to start or stop motors, and indicator lamps to provide visual status feedback. By accurately transmitting control signals from the process control system, it enables precise control of the production process, ensuring product quality and consistency.
5.2 Material Handling Systems
In warehouses and distribution centers, material handling systems rely on the SDO – 0824 to control the movement of goods. It can control the operation of conveyor belts, palletizers, and automated guided vehicles (AGVs). For example, it can send signals to start or stop conveyor belts based on the presence or absence of packages, or control the movement of AGVs to optimize the flow of goods in the warehouse.
5.3 Machine Safety Systems
Machine safety systems in manufacturing facilities utilize the SDO – 0824 to control safety – related devices. It can drive solenoid – actuated safety gates, emergency stop relays, and warning lights. When a safety condition is detected, the module can quickly transmit the control signal to activate the appropriate safety device, helping to prevent accidents and protect the safety of operators.
5.4 Building Automation Systems
In large commercial and industrial buildings, the SDO – 0824 is integrated into building automation systems to control various building components. It can control the operation of lighting systems, HVAC dampers, and access control devices. For example, it can send signals to turn on or off lights based on the time of day or occupancy sensors, or control the opening and closing of HVAC dampers to optimize energy consumption.
Honeywell SDO-0824
6. Installation, Commissioning and Maintenance Instructions
6.1 Installation Preparation
Select a suitable location within the control cabinet for mounting the SDO – 0824. Ensure that the location is free from excessive heat, moisture, and electrical interference. Since it has an IP20 rating, it should be installed in an indoor environment.
Check the integrity of the module and all its components, including the enclosure, terminals, and circuit board, before installation.
Prepare the power supply cables and field wiring cables according to the specified gauge and length requirements. Make sure the cables are properly insulated and rated for the application.
Have the necessary tools on hand, such as screwdrivers, wire strippers, and crimping tools, for the installation process.
6.2 Commissioning
Mount the SDO – 0824 on the DIN EN rail using the snap – in mechanism. Ensure that the module is securely attached to the rail.
Connect the power supply cables to the appropriate terminals on the module, following the wiring diagram provided in the product manual. Make sure the power supply voltage is within the specified range.
Connect the field wiring cables to the screw terminals on the module, ensuring that the connections are tight and secure. Label the wires for easy identification.
Power on the control system and the SDO – 0824 module. Use a diagnostic tool or software to verify that the module is recognized by the control system and that all output channels are functioning correctly.
Test the output channels by sending control signals from the control system and observing the response of the connected field devices. Adjust the output thresholds if necessary to ensure accurate signal transmission.
6.3 Maintenance
Regularly inspect the SDO – 0824 for any signs of physical damage, such as cracks in the enclosure, loose terminals, or corrosion on the circuit board. If any damage is detected, replace the affected components immediately.
Clean the module periodically to remove any dust that may have accumulated. Use a soft, dry cloth to clean the enclosure and terminals, taking care not to damage the components.
Check the integrity of the power supply cables and field wiring cables regularly. Ensure that the cables are not frayed, loose, or corroded. If any issues are found, repair or replace the cables as needed.
Monitor the performance of the module over time. Use the diagnostic capabilities of the module or the control system to check for any faults or abnormal behavior. If a fault is detected, follow the troubleshooting procedures provided in the product manual to identify and resolve the issue.
Periodically review the product manual and any updates or bulletins issued by Honeywell to stay informed about any recommended maintenance procedures or product improvements.
7. Service and Guarantee Commitment
Honeywell typically offers a 12 – month warranty for the SDO – 0824, providing customers with assurance against manufacturing defects. In case of any product failures within the warranty period, Honeywell’s dedicated technical support team is available to offer prompt assistance. They can help with troubleshooting, and if required, arrange for the repair or replacement of the module, subject to the terms and conditions of the warranty.
Customers can access comprehensive installation and operation manuals on Honeywell’s official website. These manuals provide detailed, step – by – step instructions for installation, commissioning, and maintenance of the SDO – 0824. Additionally, Honeywell may offer training programs for customers who want to enhance their understanding of the proper use and integration of this digital output module in industrial applications. This support ensures that customers can maximize the performance and lifespan of the SDO – 0824, while maintaining the highest standards of safety and efficiency in their industrial control systems.
