Honeywell FC-PSU-UNI2450U

Description

Detailed parameter table

Honeywell FC-PSU-UNI2450U

Product introduction

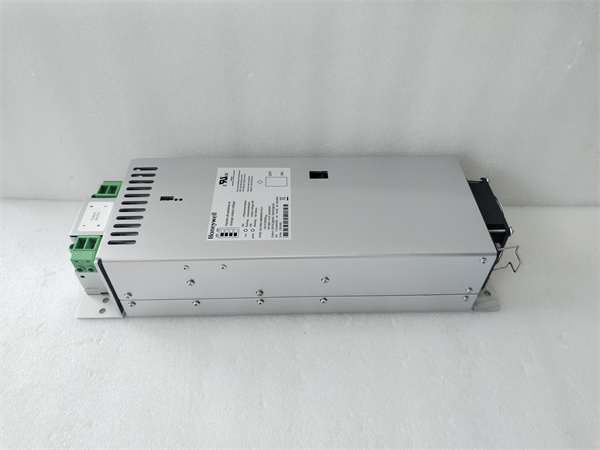

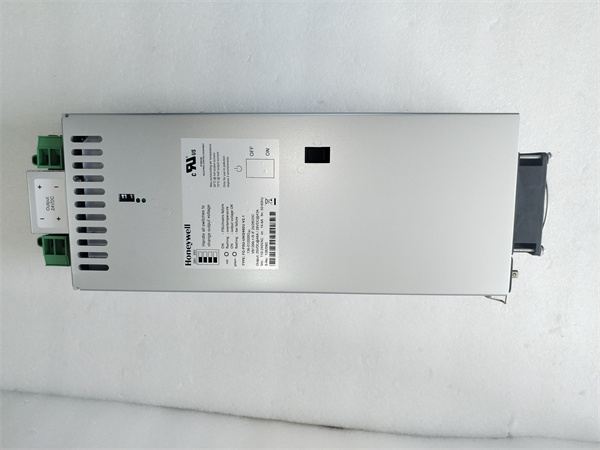

The Honeywell FC-PSU-UNI2450U is a high – performance universal power supply unit, purpose – built for industrial automation and control systems. As a crucial part of Honeywell’s comprehensive portfolio, this power supply module is designed to offer stable, efficient, and reliable power distribution across a wide array of industrial applications.

Engineered to meet the stringent demands of modern industrial setups, the FC-PSU-UNI2450U can seamlessly integrate with Honeywell’s Safety Manager platform and other industrial control systems. It serves as the power backbone, ensuring that connected devices, such as I/O modules, controllers, and field devices, receive a consistent and clean power supply. Whether deployed in a large – scale manufacturing plant, a chemical processing facility, or a power generation station, the FC-PSU-UNI2450U is engineered to maintain optimal performance, making it an essential component for industrial operations.

Core advantages and technical highlights

High – efficiency power conversion

The FC-PSU-UNI2450U boasts an impressive efficiency of up to 94%, minimizing energy losses during power conversion. This not only helps in reducing operational costs but also contributes to environmental sustainability. In energy – intensive industries like steel manufacturing or data centers, where large amounts of power are consumed, the high – efficiency power conversion of this unit can lead to significant savings over time.

Wide input voltage range

With an input voltage range of 90 – 264 V AC, the power supply unit can adapt to different power grid conditions. This versatility is especially beneficial in regions with fluctuating power supplies or in industrial setups where multiple power sources may be used. It ensures that the connected industrial control systems remain operational without disruption, regardless of minor voltage variations in the input power.

Selectable output voltages

The ability to select between 25 V DC @ 48 A or 28 V DC @ 43 A, along with a standard 24 V DC output (adjustable ±1%), provides flexibility in powering different types of industrial devices. Some industrial sensors and actuators may require specific voltage levels for optimal performance, and the FC-PSU-UNI2450U can meet these diverse requirements without the need for additional voltage converters or complex wiring modifications.

Robust protection mechanisms

Equipped with dual overvoltage protection, short – circuit protection, and over – temperature protection, the power supply unit safeguards connected devices from potential electrical hazards. In industrial environments, electrical faults such as short circuits or overvoltage situations can occur due to various factors like lightning strikes, equipment malfunctions, or incorrect wiring. The protection mechanisms in the FC-PSU-UNI2450U quickly detect and respond to such faults, preventing damage to sensitive industrial control components and ensuring the safety and reliability of the overall system.

Real – time monitoring and control

The unit features independent regulation circuits for output voltage limitation and a relay that de – energizes when the output voltage drops below 22 V DC. This real – time monitoring and control functionality allows operators to continuously monitor the power supply status. In critical industrial processes, such as pharmaceutical manufacturing or oil refinery operations, where uninterrupted power is crucial, these monitoring features enable early detection of power issues, allowing for prompt corrective actions to be taken.

Typical application scenarios

Manufacturing plants

In manufacturing plants, the FC-PSU-UNI2450U powers a variety of equipment, including programmable logic controllers (PLCs), motor drives, and robotic arms. For example, in an automotive assembly line, PLCs control the movement of conveyor belts, robotic arms perform tasks like welding and painting, and motor drives power the motors that move the assembly jigs. The stable power supply from the FC-PSU-UNI2450U ensures the precise and synchronized operation of all these devices, minimizing production errors and downtime.

Chemical processing facilities

Chemical processing plants have complex control systems that monitor and regulate chemical reactions, temperature, pressure, and flow rates. The FC-PSU-UNI2450U provides power to the sensors, transmitters, and control valves in these systems. For instance, in a petrochemical refinery, pressure transmitters send data to the control system about the pressure inside reactors, and control valves adjust the flow of chemicals. The reliable power supply from this unit is essential for accurate monitoring and control, preventing potential safety hazards and ensuring smooth chemical processes.

Power generation stations

In power generation stations, whether they are coal – fired, gas – fired, or hydro – electric, the FC-PSU-UNI2450U powers the control systems that manage the generation, transmission, and distribution of electricity. It supplies power to the supervisory control and data acquisition (SCADA) systems, which monitor and control various aspects of the power generation process, such as turbine speed, generator voltage, and grid frequency. A stable power supply is critical in these applications to maintain the integrity of the power grid and prevent blackouts.

Honeywell FC-PSU-UNI2450U

Related model recommendations

FC-SCNT01: Safety controller that can be powered by the FC-PSU-UNI2450U, ensuring reliable operation in safety – critical applications. The stable power supply from the FC-PSU-UNI2450U is essential for the proper functioning of the safety controller, which may be used in industries like oil and gas, where safety is of utmost importance.

FC-PUIO01: Universal process I/O module that can be connected to the FC-PSU-UNI2450U for power. The I/O module, which interfaces with various field devices, requires a stable power source to accurately acquire and transmit data. The FC-PSU-UNI2450U can provide the necessary power to ensure the reliable operation of the I/O module in industrial process control applications.

Experion PKS SCADA: Honeywell’s distributed control system that can be powered by the FC-PSU-UNI2450U. The stable power supply is crucial for the continuous operation of the SCADA system, which is used to monitor and control industrial processes. In a large – scale industrial plant, the SCADA system receives data from various sensors and devices, and the FC-PSU-UNI2450U ensures that it remains operational at all times.

FC-PS24-3A: A smaller power supply option from Honeywell for comparison. While the FC-PS24-3A may be suitable for less power – hungry applications or as a backup power supply in some cases, the FC-PSU-UNI2450U offers higher power ratings and more features, making it suitable for large – scale industrial setups where multiple devices need to be powered simultaneously.

Installation, commissioning and maintenance instructions

Installation preparation

Mount the FC-PSU-UNI2450U on a 35 mm DIN rail in a well – ventilated, dust – free enclosure. The enclosure should be located in an area with ambient temperature within the unit’s operating range of – 40 °C to + 70 °C.

Ensure that the input power cables are properly sized and rated for the input voltage range of 90 – 264 V AC. Use cables with sufficient ampacity to handle the maximum input current.

Connect the output cables to the appropriate devices, ensuring that the voltage settings on the power supply unit match the requirements of the connected devices.

Ground the power supply unit according to local electrical codes to prevent electrical hazards.

Commissioning

Before powering on the unit, double – check all the connections to ensure they are secure and correct.

Power on the input power source and verify that the power supply unit is functioning properly. Check the status LEDs (if available) to confirm normal operation.

Use a multimeter to measure the output voltage and ensure that it is within the specified tolerance (±1% for the 24 V DC output). Adjust the output voltage if necessary using the built – in adjustment mechanism.

Connect a small load to the output and verify that the power supply unit can deliver the rated current without significant voltage drops.

Maintenance suggestions

Perform regular visual inspections to check for any signs of overheating, such as discoloration of the unit or melting of cable insulation. Also, look for loose connections or signs of corrosion on the terminals.

Use a power quality analyzer to periodically check the input and output power quality. Monitor parameters such as voltage, current, frequency, and harmonic distortion to detect any potential issues early.

Clean the unit regularly to remove dust and debris, especially in dusty industrial environments. Dust accumulation can affect the heat dissipation of the unit and potentially lead to overheating.

If the power supply unit has a fan for cooling, check the fan operation periodically to ensure proper ventilation. Replace the fan if it shows signs of malfunction, such as abnormal noise or reduced airflow.

Service and guarantee commitment

The Honeywell FC-PSU-UNI2450U comes with a standard 3 – year warranty, covering manufacturing defects and ensuring compliance with the published performance specifications under normal operating conditions. Honeywell’s global technical support team is available 24/7 to provide assistance for installation, configuration, troubleshooting, and maintenance. In case of critical issues, the team offers a 12 – hour response time to minimize downtime.

On – site commissioning services are available, performed by certified engineers who can ensure proper installation, configuration, and calibration of the power supply unit. Extended warranty options, up to 5 years, include annual preventive maintenance, firmware updates, and priority access to replacement parts. In the event of a fault, Honeywell maintains regional stock of FC-PSU-UNI2450U units, enabling next – day delivery in most cases. All repairs are carried out using genuine Honeywell components, ensuring that the unit retains its original performance, efficiency, and protection features. This commitment reflects Honeywell’s dedication to providing high – quality, reliable power solutions for industrial customers.
