Description
Detailed parameter table
| Parameter name | Parameter value |
| Product model | DC1020CL |
| Manufacturer | Honeywell |
| Product category | Digital controller |
| Panel size | 48 x 96 mm (DIN 1/8) |
| Power supply | 90 – 265 VAC, 50/60 Hz, 8VA max; 15 – 50 VDC, 10VA max |
| Input type | Universal configurable (RTD, TC, mA, dCV) |
| Number of inputs | 1 – 2 analog inputs |
| Output type | Relay, voltage, current (varies by model) |
| Number of control outputs | Up to 2 |
| Number of alarm outputs | 2 – 3 |
| Accuracy | ±0.5% of span |
| Control algorithms | PID, ON/OFF, heat/cool algorithms with 2 different PID sets, motor position control, single – phase and three – phase control (with or without zero crossover control) |
| Communication interface | RS232 or RS485 with ASCII and Modbus RTU protocols |
| Display | Dual 4 – digit 7 – segment display for PV (process value) and SP (setpoint); 10 – LED bar graph for additional status indication |
| Operating temperature | -20°C to 65°C (-4°F to 149°F) |
| Operating humidity | 50 – 85% RH (non – condensing) |
| Protection class | IP65 front face protection |
| Certifications | CE, UL, CUL |

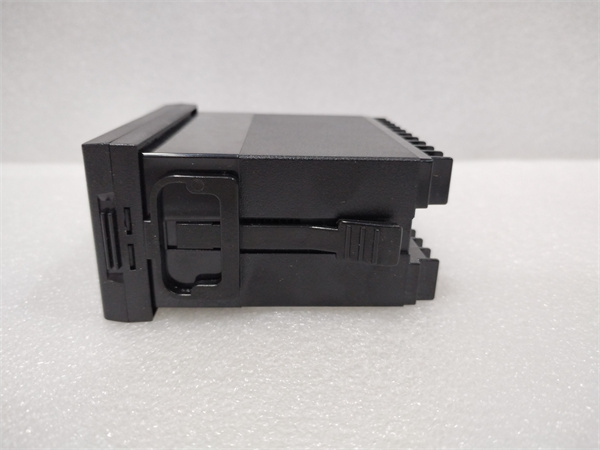

Honeywell DC1020CL
Product introduction
The Honeywell DC1020CL is a high – performance digital controller designed to meet the diverse control needs of industrial and commercial applications. As part of Honeywell’s DC1000 series, it offers a cost – effective solution without compromising on functionality and reliability.
This controller is engineered to precisely control various process variables such as temperature, humidity, pressure, and flow. Its universal configurable inputs can accept a wide range of sensor signals, including RTDs (Resistance Temperature Detectors), thermocouples, mA (milliamperes) and dCV (direct current voltage) signals. The Honeywell DC1020CL is equipped with multiple control outputs and alarm outputs, enabling it to manage complex control scenarios and provide timely alerts in case of abnormal conditions.
Core advantages and technical highlights
Versatile control algorithms: The Honeywell DC1020CL supports a variety of control algorithms. The PID (Proportional – Integral – Derivative) algorithm is widely used for precise control, ensuring stable operation and minimizing process fluctuations. The ON/OFF control is simple and effective for basic applications. Additionally, the heat/cool algorithms with two different PID sets are useful in applications where both heating and cooling processes need to be controlled independently, like in climate – controlled storage facilities. The motor position control without slide wire feedback, as well as single – phase and three – phase control options (with or without zero crossover control), make it suitable for controlling motors and power – intensive equipment.
Auto – tuning capability: One of the key features of the Honeywell DC1020CL is its auto – tuning function. This allows the controller to automatically adjust the PID parameters based on the process dynamics. In applications where the process characteristics may change over time, such as in chemical reactions with variable reaction rates, the auto – tuning feature ensures that the controller always maintains optimal control performance without the need for manual re – calibration.

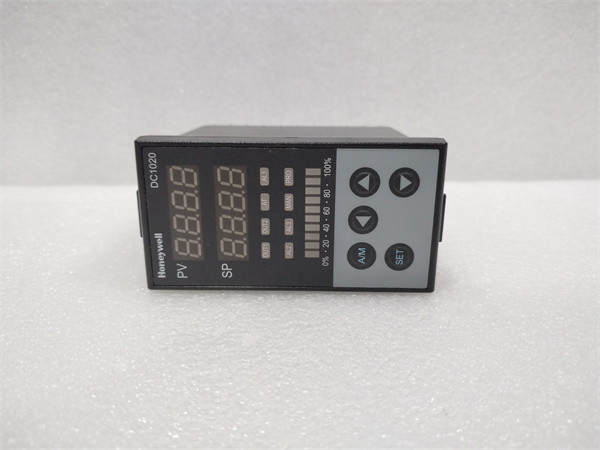

Dual display and bar graph: The controller features a dual 4 – digit 7 – segment display that clearly shows the process value (PV) and the setpoint (SP). This makes it easy for operators to monitor and adjust the control parameters. The 10 – LED bar graph provides additional information, such as the status of the control output, alarm conditions, and the auto/manual and programmer states. In a busy industrial environment, these visual indicators enable quick identification of the controller’s status, improving operational efficiency.
Setpoint programming: The Honeywell DC1020CL offers setpoint programming capabilities. It comes with two programs, each with a maximum of 8 segments. These two programs can be linked together to form a single 16 – segment program. This is particularly useful in applications where the process requires a series of different setpoints over time, such as in a batch – type manufacturing process where the temperature needs to be ramped up, held at a certain level, and then ramped down in a specific sequence.
Extended alarm capability: With 2 – 3 alarm outputs and 17 configurable alarm modes, the Honeywell DC1020CL provides comprehensive alarm functionality. It can detect various abnormal conditions, such as high or low process values, rate – of – change alarms, and sensor failures. In a power generation plant, for example, the controller can be configured to raise an alarm if the temperature of the generator exceeds a safe limit, allowing operators to take immediate corrective action and prevent equipment damage.
Typical application scenarios
In the plastic processing industry, the Honeywell DC1020CL is used to control the temperature of injection molding machines. Precise temperature control is crucial in plastic processing to ensure the quality of the molded products. The controller’s ability to handle different control algorithms and its auto – tuning feature make it suitable for maintaining the optimal temperature during the entire molding cycle, reducing product defects and improving production efficiency.
For painting and coating applications, the Honeywell DC1020CL can control the temperature and humidity of the drying ovens. The extended alarm capability ensures that any deviation from the set parameters is immediately detected, preventing issues such as uneven drying or paint blistering. In a large – scale painting facility, multiple DC1020CL controllers can be networked together using the RS232 or RS485 communication interfaces to be centrally monitored and controlled.
Within semiconductor packaging and testing processes, the Honeywell DC1020CL is used to control the temperature and pressure in the manufacturing equipment. The high accuracy of the controller is essential in these applications, as even a slight deviation in temperature or pressure can affect the performance and reliability of the semiconductors. The setpoint programming feature allows for the creation of complex temperature and pressure profiles required during different stages of semiconductor manufacturing.

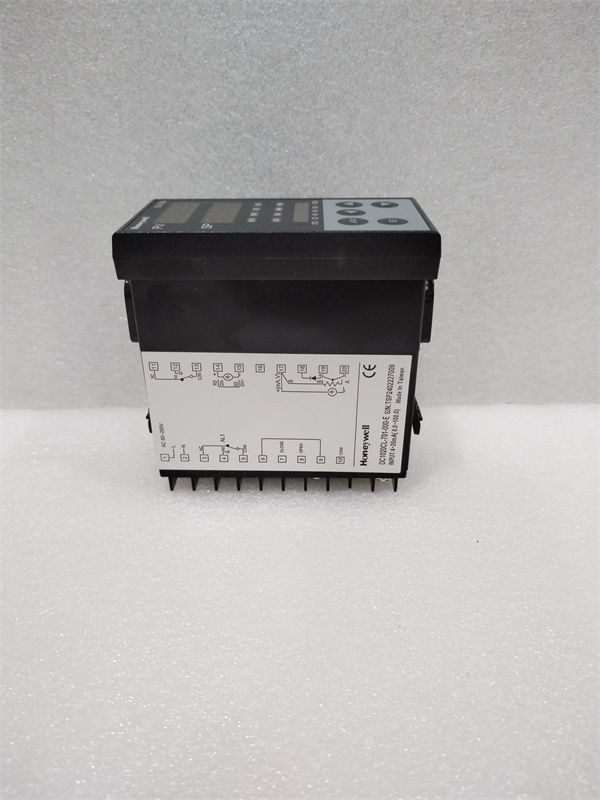

Honeywell DC1020CL
Related model recommendations
Honeywell DC1010: A smaller – sized digital controller in the DC1000 series with a 48 x 48 mm (DIN 1/16) panel. It is suitable for applications where space is limited, such as in small – scale laboratory equipment or compact industrial control panels.
Honeywell DC1030: This model has a 72 x 72 mm (DIN 3/16) panel and offers similar functionality to the DC1020CL but may be preferred in applications where a larger display is more convenient for operators, like in some large – scale industrial control rooms.
Honeywell DC1040: With a 96 x 96 mm (DIN 1/4) panel, the DC1040 provides a more prominent display. It is suitable for applications where clear visibility of the process parameters is crucial, such as in high – traffic areas or in control systems that require easy access for multiple operators.
Honeywell PLC – 500: A programmable logic controller that can be integrated with the Honeywell DC1020CL to expand the control capabilities. The PLC can process the data from the DC1020CL and execute more complex control logic, for example, in a large – scale industrial plant where multiple processes need to be coordinated.
Honeywell Signal Conditioner – 200: This device can be used to condition the input and output signals of the Honeywell DC1020CL, ensuring better compatibility with sensors and actuators. In applications where the sensor signals are weak or noisy, the signal conditioner can improve the accuracy and reliability of the control system.
Installation, commissioning and maintenance instructions
Installation preparation: Before installing the Honeywell DC1020CL, ensure that the control panel has a DIN 1/8 mounting slot available. Verify that the power supply voltage is within the specified range of 90 – 265 VAC or 15 – 50 VDC. Gather the necessary tools, such as a screwdriver for mounting the controller on the DIN rail and for making electrical connections. Check the ambient temperature and humidity conditions of the installation location to ensure they are within the operating range of the controller.
Commissioning steps: After installation, power on the Honeywell DC1020CL. Use the configuration buttons on the controller to set the input type, control algorithm, setpoints, and alarm parameters according to the application requirements. Connect the sensor to the input terminal and the actuator to the control output terminal. Monitor the PV and SP values on the display to ensure that the controller is correctly receiving the sensor data and is outputting the appropriate control signals. Test the alarm function by simulating an abnormal condition, such as exceeding the setpoint, to verify that the alarm output is activated.
Maintenance suggestions: Regularly inspect the Honeywell DC1020CL for any signs of physical damage, such as cracks in the housing or loose connections. Clean the front face of the controller periodically to maintain visibility of the display, especially in dusty environments. Check the communication connections to ensure that data is being transmitted correctly. Use a calibrated reference source to periodically check the accuracy of the input readings. If the accuracy deviates beyond the specified ±0.5% of span, the controller may need to be recalibrated. Update the controller’s firmware (if available) to ensure that it has the latest features and bug fixes.
Service and guarantee commitment
The Honeywell DC1020CL comes with a 12 – month warranty from the date of purchase. During this period, if the product fails due to manufacturing defects, Honeywell will repair or replace the unit free of charge.
Honeywell offers comprehensive technical support for the Honeywell DC1020CL. Technical experts are available via phone and email to assist with installation, configuration, calibration, and troubleshooting. Online resources, including installation manuals, user guides, and technical specifications, are also provided. For customers who require more in – depth support, optional extended service contracts are available. These contracts can include on – site maintenance, priority response times, and regular calibration services to ensure the long – term reliable operation of the controller.
