HIMA Z7138 | P2 Digital Output ITI Pre-Terminated Cable Plug for F3330/F3331 SIS – Field Service Notes

  • Model: Z7138 (full ordering part: /3330/CX/P2; CX = C2/C3/C5/C10 length variants)
  • Alt. P/N: No cross-replacement part; must match base series with F3330/F3331 DO baseplate suffix
  • Product Series: HIMA HIQuad / HIMatrix SIL Safety Instrumented System
  • Hardware Type: Pre-fabricated shielded digital output signal cable + molded P2 ITI locking plug assembly
  • Key Feature: Factory matched twisted pair impedance with mechanical anti-mating keying separate from Z7128 analog plugs
  • Primary Field Use: Interconnect 24V solenoid trip valves, alarm horn actuators to F3330/F3331 digital safety output baseplates for SIL3 ESD loops.
Get a Quote
In Stock
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide. Brand:
The listed price is not final; the actual selling price is negotiable based on current market conditions.

Description

Component Snapshot At-a-Glance

  • Model: Z7138 (full ordering part: /3330/CX/P2; CX = C2/C3/C5/C10 length variants)
  • Alt. P/N: No cross-replacement part; must match base series with F3330/F3331 DO baseplate suffix
  • Product Series: HIMA HIQuad / HIMatrix SIL Safety Instrumented System

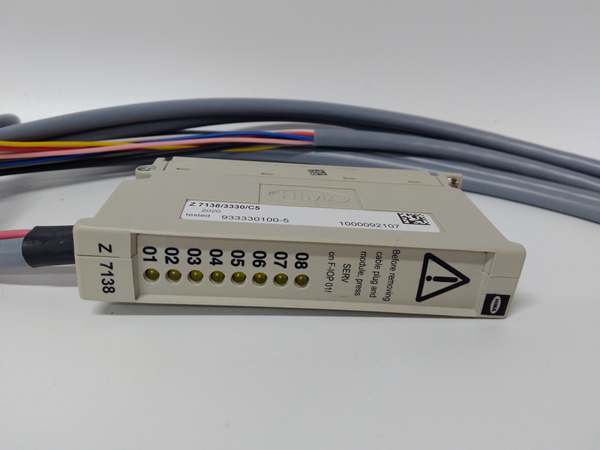

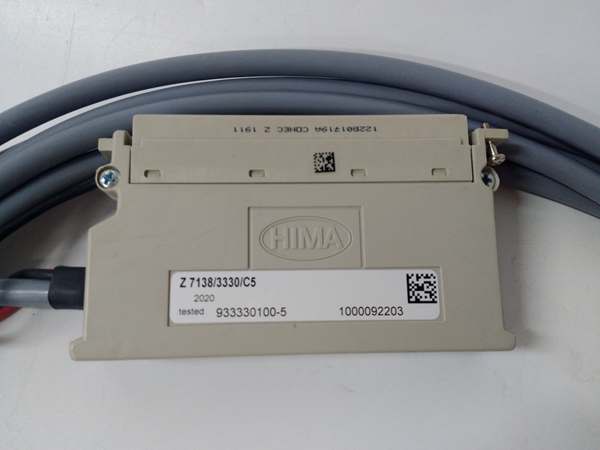

  • Hardware Type: Pre-fabricated shielded digital output signal cable + molded P2 ITI locking plug assembly
  • Key Feature: Factory matched twisted pair impedance with mechanical anti-mating keying separate from Z7128 analog plugs
  • Primary Field Use: Interconnect 24V solenoid trip valves, alarm horn actuators to F3330/F3331 digital safety output baseplates for SIL3 ESD loops.
HIMA Z7138

HIMA Z7138

Hard-Numbers: Technical Specifications

  • Protocol Support: Passive digital DC signal transmission (24VDC DO, max 0.5A per channel)
  • Port Count: Single molded P2 ITI keyed plug (module side); open color-coded field wire harness
  • Baud/Data Rate: N/A, low-frequency digital discrete safety signals
  • Operating Temperature: -40°C to +85°C operational; -50°C to +90°C storage
  • Isolation Rating: 1500VAC dielectric withstand between signal pairs and overall shield
  • Power Draw: No power consumption; passive wiring harness
  • Cable Length Options: C2=2m, C3=3m, C5=5m, C10=10m factory standard lengths
  • Shield Construction: 100% coverage copper braid overall shield, individually twisted digital pairs
  • Minimum Bend Radius: 10x cable outer diameter static installation
  • Certifications: TÜV IEC 61508 SIL3, ATEX Zone 2 compatible, CE marked
  • Plug Protection Rating: IP67 fully locked plug mating
  • Contact Rating: Gold-plated pins rated 5A / 250V nominal



The Real-World Problem It Solves

Field techs building custom DO wiring cut corners on shielding and strain relief, leading to valve chatter and false valve feedback faults when VFD noise bleeds into trip circuits. Hand-terminated wiring also slows module swap-outs during critical plant shutdown windows.Where you’ll typically find it:

  • Refinery reactor emergency shutdown solenoid valve safety control wiring
  • Offshore FPSO fire suppression valve and emergency blowdown actuator signal runs
  • Fossil power plant boiler fuel shutoff valve SIL3 digital output loopsThis pre-built digital harness eliminates field wiring noise ingress and cuts module replacement downtime by 70% during outage work.



Hardware Architecture & Under-the-Hood Logic

This is a fully passive wiring assembly with no embedded electronics; its P2 molded plug uses unique keyways to prevent cross-mating with Z7128 analog AI plugs.

  1. Field-side 24VDC solenoid power and discrete control signals enter individually twisted wire pairs to reduce crosstalk between adjacent trip channels.
  2. Continuous full-length copper braid shield wraps all pairs to block radiated EMI from large motor and variable frequency drive cable trays.
  3. Molded P2 ITI plug uses offset mechanical indexing to physically block insertion into F6217 analog baseplates.
  4. Integrated heavy-duty internal strain relief at plug entry prevents wire breakage from cabinet thermal cycling and platform vibration.
  5. Color-coded open harness ends simplify field junction box landing without cross-referencing wiring schematics.
  6. Shield drain wire factory routed to terminate only at the cabinet F3330 baseplate side per HIMA SIL wiring standards.
HIMA Z7138

HIMA Z7138

Field Service Pitfalls: What Rookies Get Wrong

Dual-End Shield Grounding Creates Digital Signal Chatter & Spurious Valve Trips

New hires bond the braided shield to both cabinet ground and field junction box ground. Plant ground potential difference creates circulating hum current that toggles DO states randomly under normal operating loads.Field Rule: Terminate shield drain wire exclusively at the F3330 cabinet baseplate; leave field-side shield floating with no ground connection.

Mixing DO and Z7128 AI Cables On The Same Baseplate Rack

Techs grab leftover Z7128 analog plugs to finish DO wiring when stock runs low. Mismatched pinouts short 24V output power to analog input circuits and blow internal module fuses instantly.Quick Fix: Label all Z7128 / harnesses by model and lock separate cable storage bins; inspect plug keyway before mating to any baseplate.

Failure To Fully Rotate The ITI Plug Locking Collar

Vibration from compressor skids will work loose half-seated plugs over weeks. Partial pin contact triggers intermittent wire break diagnostics and unplanned safety valve trips.Field Rule: Push plug fully seated into baseplate, rotate locking collar until hard mechanical stop, then pull lightly to confirm zero movement before closing cabinet door.



Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
