Description
Component Snapshot At-a-Glance
- Model: Z7128 (full ordering part: Z7128/6217/CX/ITI; CX = C2/C3/C5/C10 length variants)
- Alt. P/N: No cross-replacement part; must match base Z7128 series with F6217 baseplate suffix
- Product Series: HIMA HIQuad / HIMatrix SIL Safety Instrumented System
- Hardware Type: Pre-fabricated shielded analog signal cable + molded ITI locking plug assembly
- Key Feature: Factory balanced twisted pair impedance with single-ended shield termination design
- Primary Field Use: Interconnect field 2-wire 4-20mA transmitters to F6217 analog safety I/O baseplates for SIL3 ESD loops.

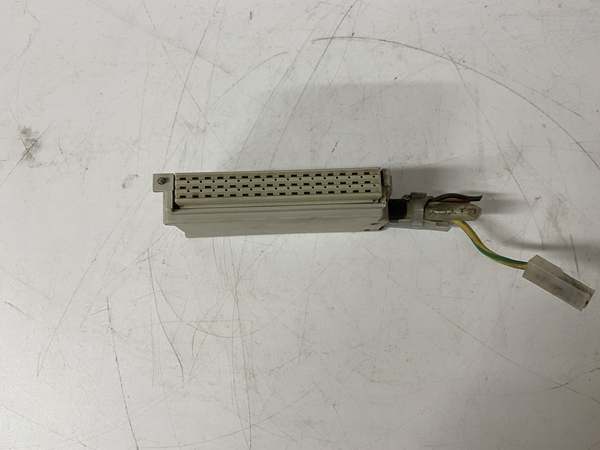

HIMA Z7128
Hard-Numbers: Technical Specifications
- Protocol Support: Passive analog DC signal transmission (4-20mA, 0-10VDC)
- Port Count: Single molded ITI keyed plug (module side); open color-coded field wire harness
- Baud/Data Rate: N/A, analog low-frequency DC measurement signals
- Operating Temperature: -40°C to +85°C operational; -50°C to +90°C storage
- Isolation Rating: 1500VAC dielectric withstand between signal pairs and overall shield
- Power Draw: No power consumption; passive wiring harness
- Cable Length Options: C2=2m, C3=3m, C5=5m, C10=10m factory standard lengths
- Shield Construction: 100% coverage copper braid overall shield, individually twisted signal pairs
- Minimum Bend Radius: 10x cable outer diameter static installation
- Certifications: TÜV IEC 61508 SIL3, ATEX Zone 2 compatible, CE marked
- Plug Protection Rating: IP67 fully locked plug mating
The Real-World Problem It Solves
Field techs building custom twisted pair wiring waste hours on stripping, shielding, and crimping, and almost always botch shield grounding. Poor homemade wiring creates 50Hz hum that drifts analog values and triggers false safety trips during refinery or offshore vibration cycles.Where you’ll typically find it:
- Refinery reactor, distillation unit pressure/temperature transmitter ESD signal runs
- Offshore FPSO fire gas detector and compressor vibration monitoring safety loops
- Fossil power plant boiler furnace pressure and steam turbine SIS analog inputsThis pre-built cable eliminates field wiring inconsistencies and keeps analog measurement drift within SIL3 tolerance windows.
Hardware Architecture & Under-the-Hood Logic
This is a fully passive wiring assembly with no embedded electronics; its ITI molded plug physically locks to F6217 baseplates and maintains consistent impedance across the full cable run.
- Field-side 4-20mA transmitter power and measurement signals enter individually twisted wire pairs to reduce crosstalk.
- Continuous full-length copper braid shield wraps all pairs to block radiated EMI from VFD and 480V motor cable trays.
- Molded ITI plug uses keyed mechanical indexing to prevent cross-mating with digital I/O Z-series plugs.
- Internal strain relief at plug entry prevents wire breakage from cabinet thermal cycling and platform vibration.
- Color-coded open harness ends simplify field junction box landing without cross-referencing wiring schematics.
- Shield drain wire is factory routed to terminate only at the cabinet F6217 baseplate side per HIMA SIL wiring standards.

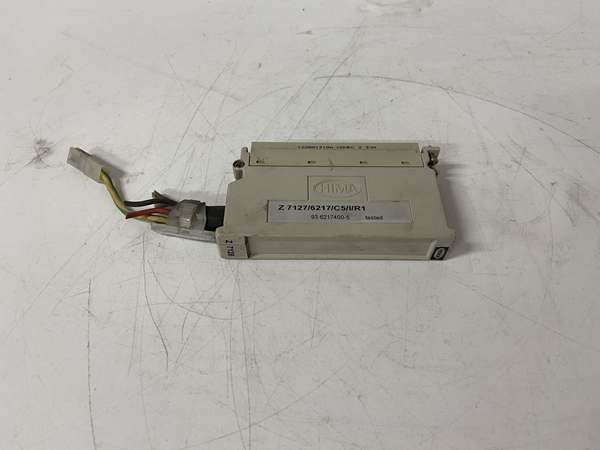

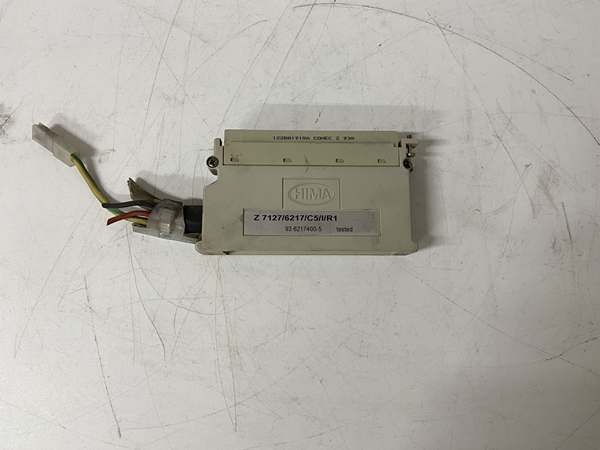

HIMA Z7128
Field Service Pitfalls: What Rookies Get Wrong
Dual-End Shield Grounding Creates Severe Low-Frequency Signal Drift
Most apprentices bond the braided shield to both cabinet ground and field junction box ground. Plant ground potential difference creates circulating hum current that swings 4-20mA readings by ±5% under normal operating loads.Field Rule: Terminate shield drain wire exclusively at the F6217 cabinet baseplate; leave field-side shield floating with no ground connection.
Mixing Different Z7128 Length Variants On A Single F6217 Module
Techs will grab leftover C2 and C10 cables to finish a panel without matching lengths. Uneven cable impedance creates channel-to-channel signal attenuation mismatch that trips the internal wire break diagnostics.Quick Fix: Standardize identical CX length Z7128 harnesses for all channels on one baseplate; tag cable lengths clearly during cabinet build.
Failure To Fully Lock The ITI Plug Rotational Latch
Vibration from compressors and turbine skids will work loose half-seated plugs over weeks. Partial pin contact triggers intermittent wire break faults and unplanned safety interlock trips.Field Rule: Push plug fully home, rotate locking collar until hard stop, then pull lightly to confirm zero movement before closing cabinet door.
